Inclination indicator
An inclination indicator has been integrated in the machine
controller housing in machines tted with remote cable and/or
infrared controllers. It is integrated in the cockpit in the case of
machines that only have manual controls.
The engine will be shut down if the machine exceeds a 45°
inclination angle. The inclination direction is irrelevant here
(Fig. S6-S7). The machine can only be restarted after the inc-
lination angle has been reduced and is no longer in the shut
down range.
The inclination encoder does not prevent the machine from
tipping over!

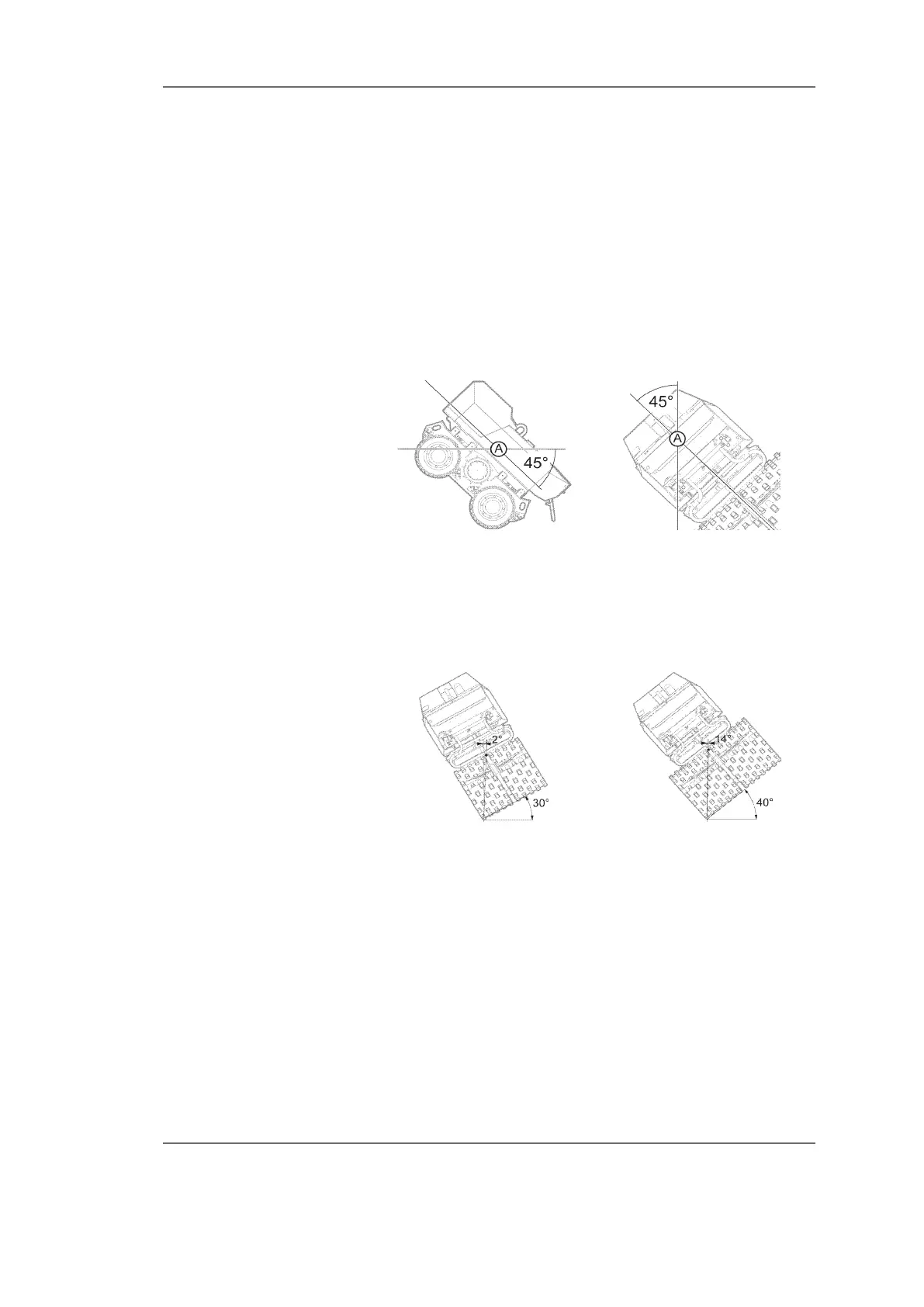

Fig. S6 630 mm drum Fig. S7 Inclination angle
Always bear in mind the centre of gravity changes with the
different drum widths (Fig. S8-S9). The danger of tipping over
sideways is greater with smaller drums than with wider drums.
Machines tted with 630 mm wide drums will tip over at a 30°
side inclination and 850 mm wide drums will tip over at 40°.
Fig. S8 630 mm drum Fig. S9 850 mm drum
Centre of gravity
safety
