Ammann Rammax 1515-M - Fast Traverse Lever; Vibration Lever

52
Rammax 1515-M/-MC/-MI/-MCI
Index: a; Issued 08/2010
Fast traverse lever
This lever is used to switch fast traverse On and Off. The ma-
chine moves twice as fast as normal mode when switched to
fast traverse. The fast traverse lever function only works in
conjunction with the control lever.

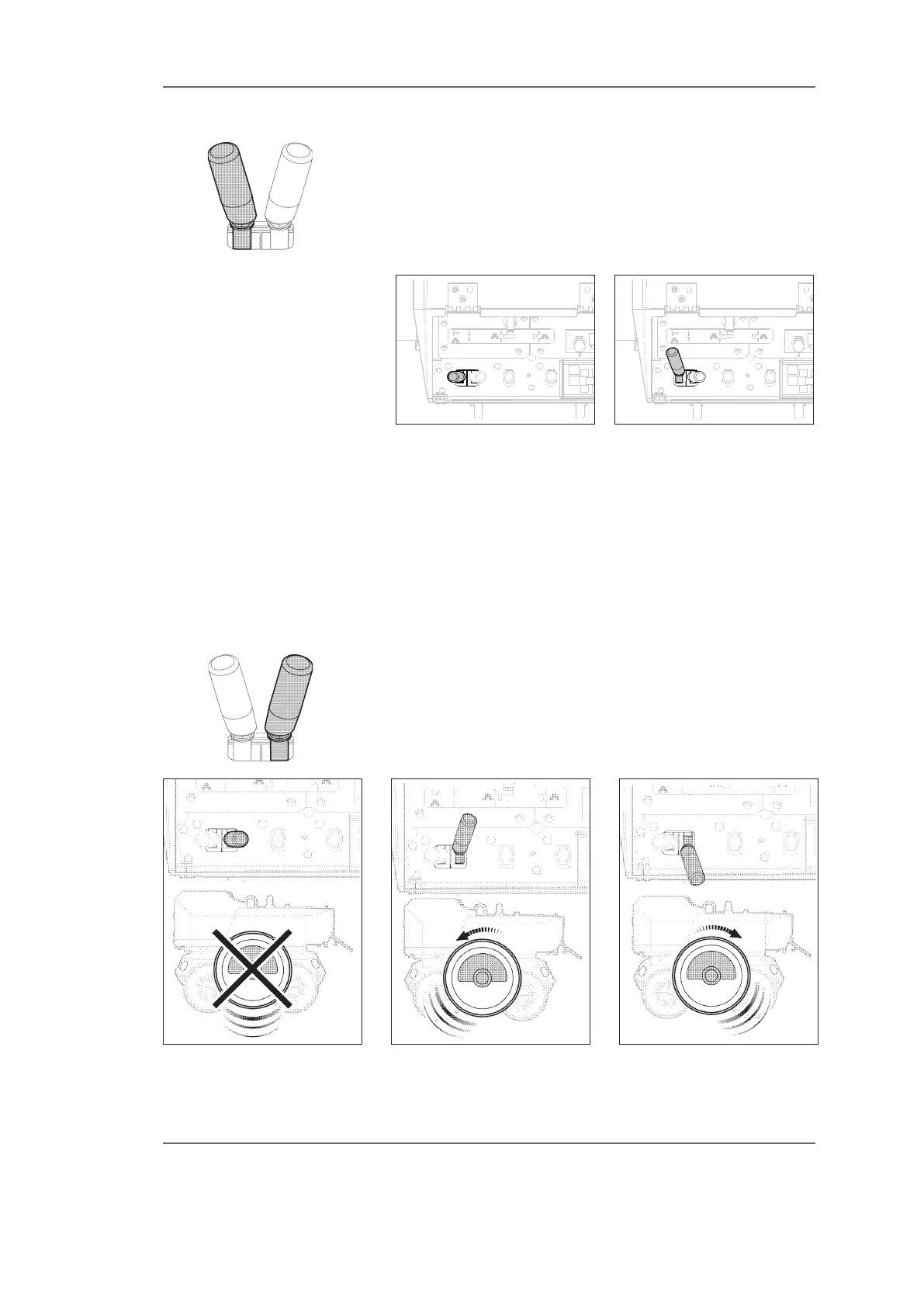

The lever has two switch position: Fast traverse switched off
(Fig. SE4) and fast traverse switched on (Fig. SE5):
Fig. SE4 Fast traverse switched off Fig. SE5 Fast traverse switched on
Fast traverse remains switched on until the lever is returned to
the neutral position. Fast traverse is also switched off if one of
the safety devices trips. However, the lever will remain locked
in place. Move the lever into the neutral position before restar-
ting the machine. Fast traverse is not activated automatically
when the machine starts, only when the fast traverse lever is
locked in place.
Vibration lever
This lever is used to change the vibration shaft's rotational
direction or to switch the vibration function off. The vibration
lever has three switch positions:
Vibration switched off (Fig. SE6)
Vibrate forwards (Fig. SE7)
Vibrate backwards (Fig. SE8)
Fig. SE6 Vibration switched off Fig. SE7 Vibrate forwards Fig. SE8 Vibrate backwards
1)
2)
3)
controls
