Rammax 1515-M/-MC/-MI/-MCI
Index: a; Issued 08/2010
Closing the cockpit cover:
Use both hands to pull the cockpit cover outwards until it
is released from the locking device.
Now use both hands to push the cockpit cover down-
wards until it is visually latched into both brackets.

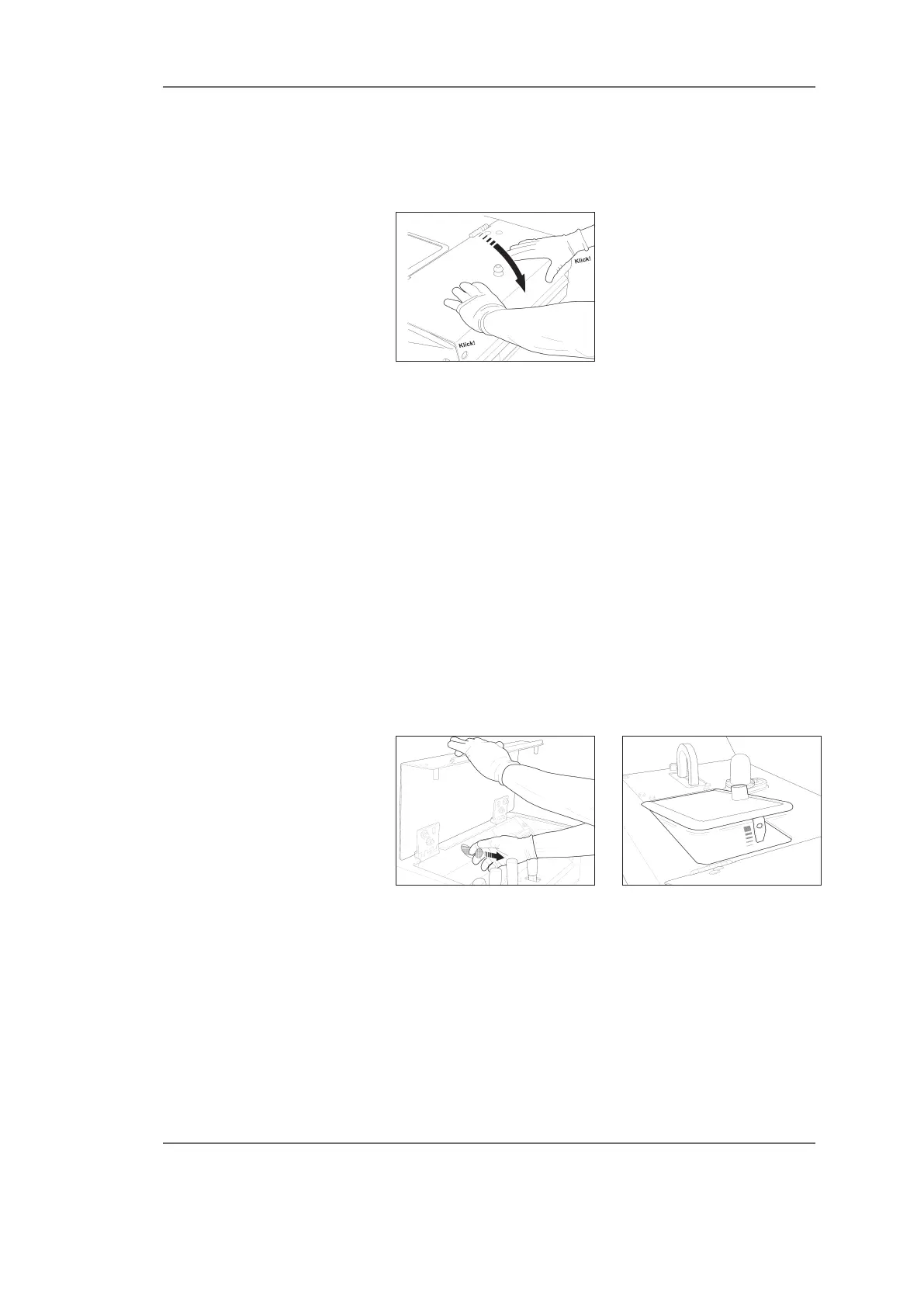

Fig. OZ6 Closing the cockpit cover
The cockpit cover is now closed.
Storage compartment
The machine controller unit is built into the storage compart-
ment. The remote infrared controller is stowed in the storage
compartment for machines tted with a remote infrared control
system.
A spring-loaded locking bar holds the storage compartment
cover closed. This locking bar is located in the centre of the
operating unit.
Opening the storage compartment:
Open the cockpit cover and hold it vertically, as shown in
Fig. OZ7.
Pull the locking bar "R“ (Fig. OZ7) up.
Fig. OZ7 Pulling the "R“ locking bar
Fig. OZ8 Opening the storage
compartment
The storage compartment is now unlocked and folds up
(Fig. OZ8).
Closing the storage compartment:
Use both hands to press the cover downwards until you
hear it lock into place.
