7.4.3.4 Mask Edit setting commands
[1]
[2]
[4]
[5]
[3]
[10] [9]
[8]
[12]
[11]
[6],[7]

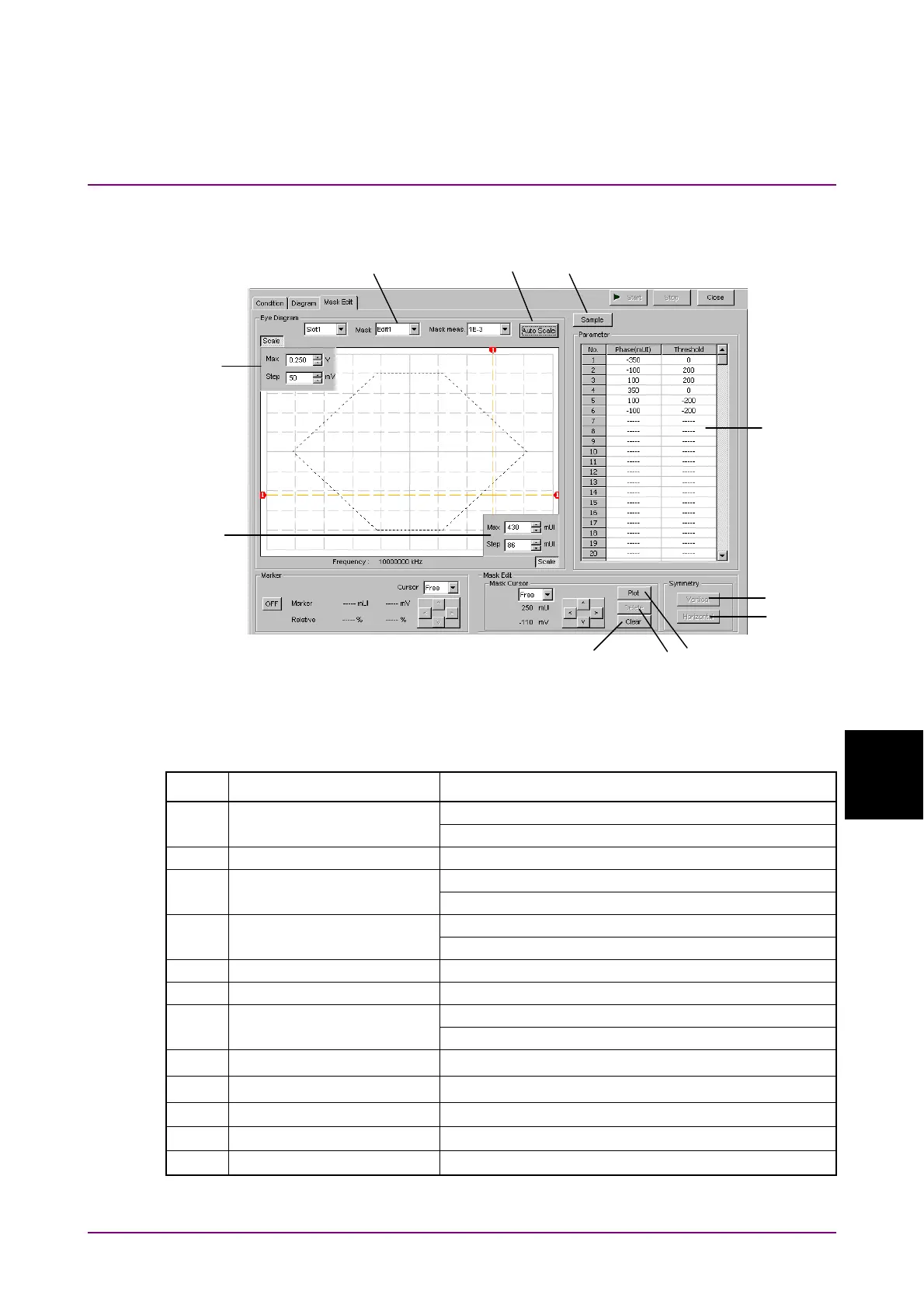

Figure 7.4.3.4-1 Mask Edit Tab
Table 7.4.3.4-1 Mask Edit Setting Commands
No. Item Command
[1] Mask :DISPlay:RESult:EDIagram:TEMPlate:PATTern
:DISPlay:RESult:EDIagram:TEMPlate:PATTern?
[2] Auto Scale :DISPlay:RESult:EDIagram:TEMPlate:ASCale
[3] Max Step :DISPlay:RESult:EDIagram:TEMPlate:SCALe
:DISPlay:RESult:EDIagram:TEMPlate:SCALe?
[4] Max Step :DISPlay:RESult:EDIagram:TEMPlate:PSCale
:DISPlay:RESult:EDIagram:TEMPlate:PSCale?
[5] Sample :DISPlay:RESult:EDIagram:TEMPlate:SAMPle
[6] Query for mask point count :DISPlay:RESult:EDIagram:TEMPlate:PNUMber?
[7] Phase (mUI) Threshold :DISPlay:RESult:EDIagram:TEMPlate:EDIT
:DISPlay:RESult:EDIagram:TEMPlate:EDIT?
[8] Plot :DISPlay:RESult:EDIagram:TEMPlate:PLOT
[9] Delete :DISPlay:RESult:EDIagram:TEMPlate:DELete
[10] Clear :DISPlay:RESult:EDIagram:TEMPlate:CLEar
[11] Vertical :DISPlay:RESult:EDIagram:TEMPlate:VERTical
[12] Horizontal :DISPlay:RESult:EDIagram:TEMPlate:HORizontal
