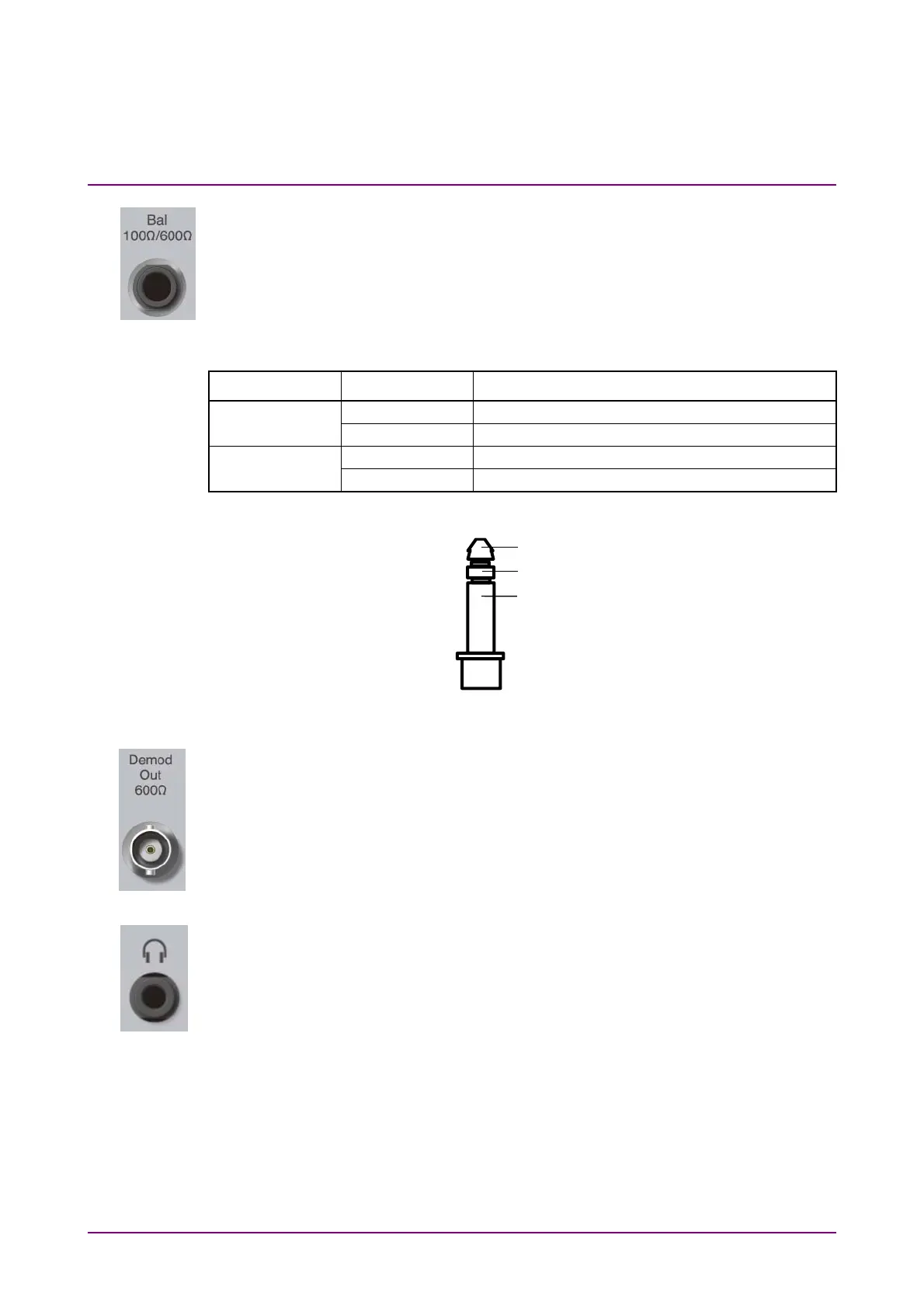

Chapter 2 Preparation
2-12
23 AF Output connector (balanced)
1/4 inch phone jack (3 poles,
6.3 mm) connector to output balanced AF
signal to external device.
This is mounted on the unit in which the MS2830A-018/118 is installed.
Impedance: 100 Ω/600 Ω (AC coupling, Nominal)
Table 2.1.2-4 Output Range (Balance, Output Impedance: 600 Ω)
Function Termination Output Range
Single Tone
100 k
0 (off), 1 mVrms to 12.4 Vrms
600
0 (off), 0.5m Vrms to 6.2 Vrms
White Noise*
100 k
0 (off), 1.545 mV rms to 3.083 V rms (Nominal)
600
0 (off), 0.774 mV rms to 1.545 V rms (nominal)
*: (through ITU-T Rec. G.227 filter)
Figure 2.1.2-3 1/4 Inch Phone Plug
24 Demodulation Output connector
BNC connector to output demodulated AF signal to external device.
This is mounted on the unit in which the MS2830A-018/118 is installed.
Output Level: –10 dBm ±2 dB (Frequency deviation = 3.5 kHz, 600 Ω)
Impedance: 600 Ω
25 Headphone Output connector (Monaural)
3.5 mm phone jack connector (3.5 mm phone plug
3.5 mm) to output
demodulated AF audio signal to external device.
This is mounted on the unit in which the MS2830A-018/118 is installed.
3 pin: Tip = HOT
2 pin: Ring = COLD
1pin: Sleeve = GND
