3.9 Audio Analyzer Function
3-97
3
Measurement
3.9.6 Displaying Audio Analyzer setting
This section describes the display of AF input signal settings in the Audio
Analyzer Setting window.
Figure 3.2.1.4-1 Audio Analyzer Screen
Figure 3.2.1.5-1 Audio Analyzer + RF Signal Generator Screen

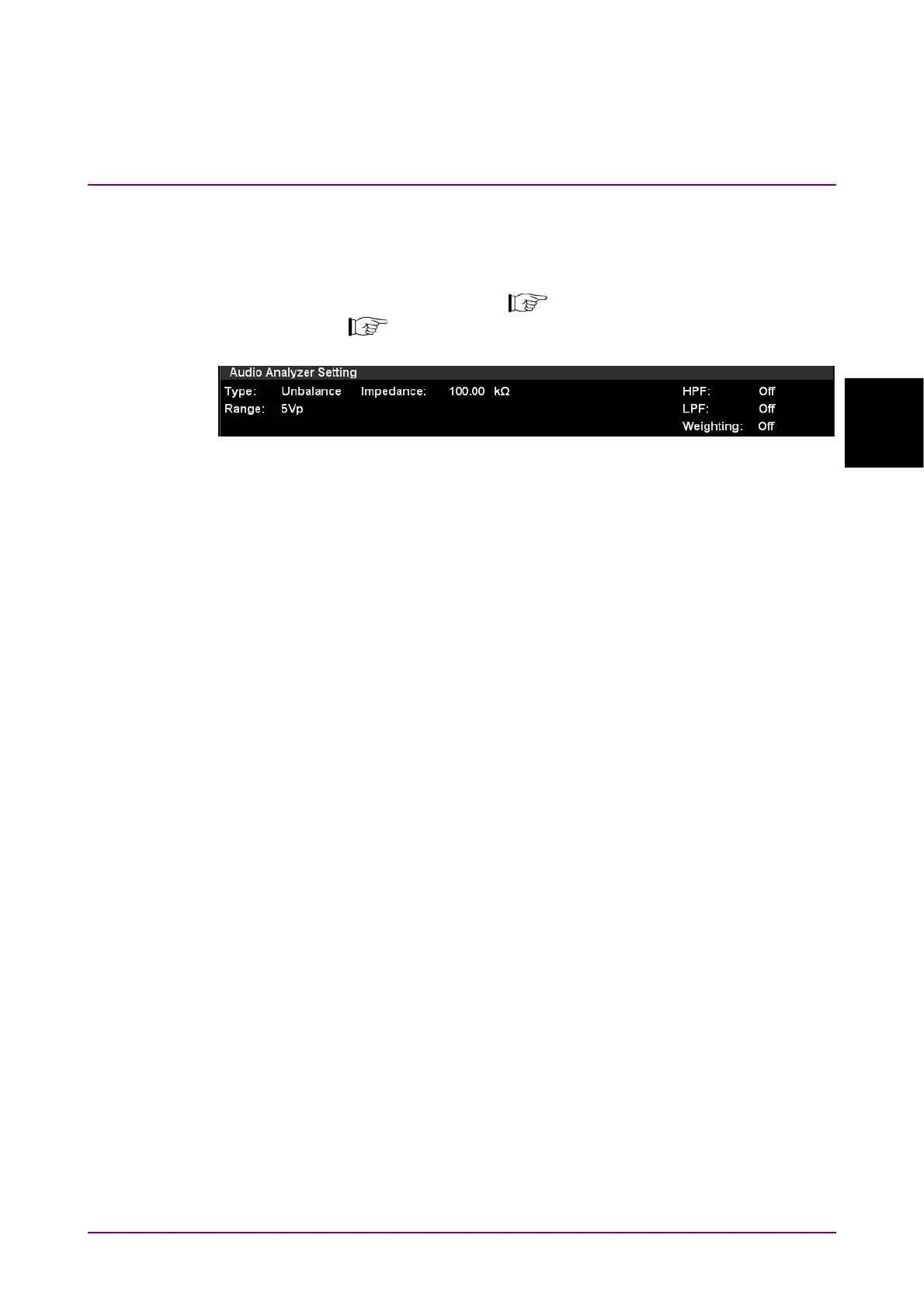

Figure 3.9.6-1 Audio Analyzer Setting Window
Type
■
Summary
Displays the AF input signal type (balanced/unbalanced).
Range
■
Summary
Displays the AF input signal range.
Impedance
■
Summary
Displays input impedance and impedance reference.
HPF
■
Summary
Displays the HPF setting for AF input signal.
LPF
■
Summary
Displays the LPF setting for AF input signal.
Weighting
■
Summary
Displays the weighting setting for AF input signal.
