3.2.2 Main function menu
3.2.2.1 TX mode screen
This section explains the main function menu of TX mode screen when
the MS2830A-018/118 Audio Analyzer is not installed or MS2840A.
F1
F2
F3
F4
F5
F6
F7
F8

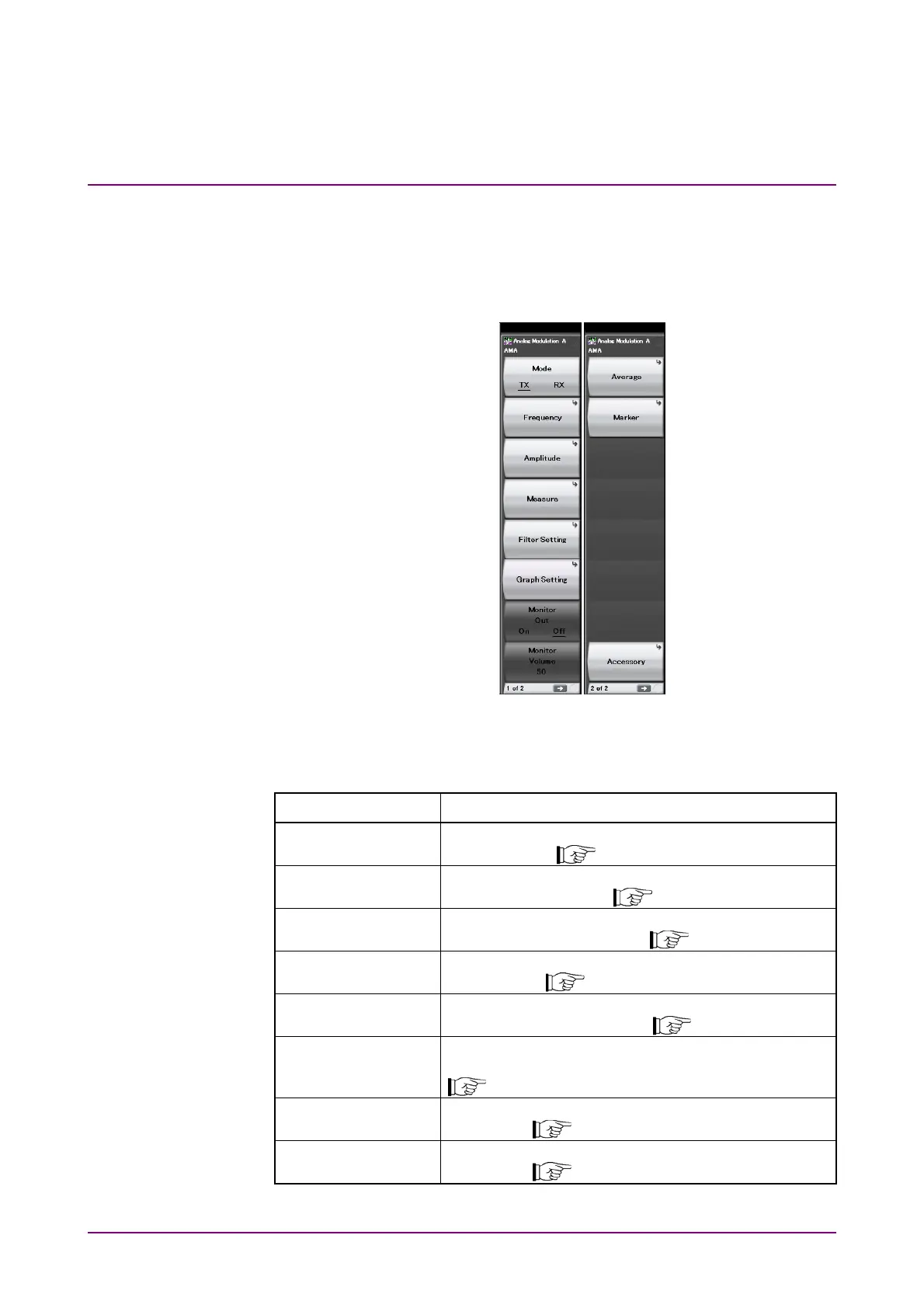

Figure 3.2.2.1-1 Main Function Menu (TX Mode)
Table 3.2.2.1-1 Main Function Menu (TX Mode) Explanation
Menu Display Function
Mode
Sets continuous or single measurement mode.
3.3 “Setting Measurement Mode”
Frequency
Sets a frequency.
3.4.1 “Setting frequency”
Amplitude
Sets a level.
3.4.2 “Setting level”
Measure
Sets measurement items.
3.4.3 “Setting measurement items”
Filter Setting
Sets filter.
3.4.4 “Setting filter”
Graph Setting
Sets the graphs of Time Domain and Frequency
Domain.
3.4.8 “Setting AF Measure Result (TX-AF) graph”
Monitor Out
Sets demodulation monitor.
3.4.5 “Setting demodulation monitor”
Monitor Volume
Sets demodulation monitor volume.
3.4.5 “Setting demodulation monitor”
