2.1 Part Names
2-7
2
Preparation
2.1.2 Rear panel
This section describes the rear-panel connectors.
12
1198106714413 2 1 16 15
17 18 19
20 21 22
23
24
25

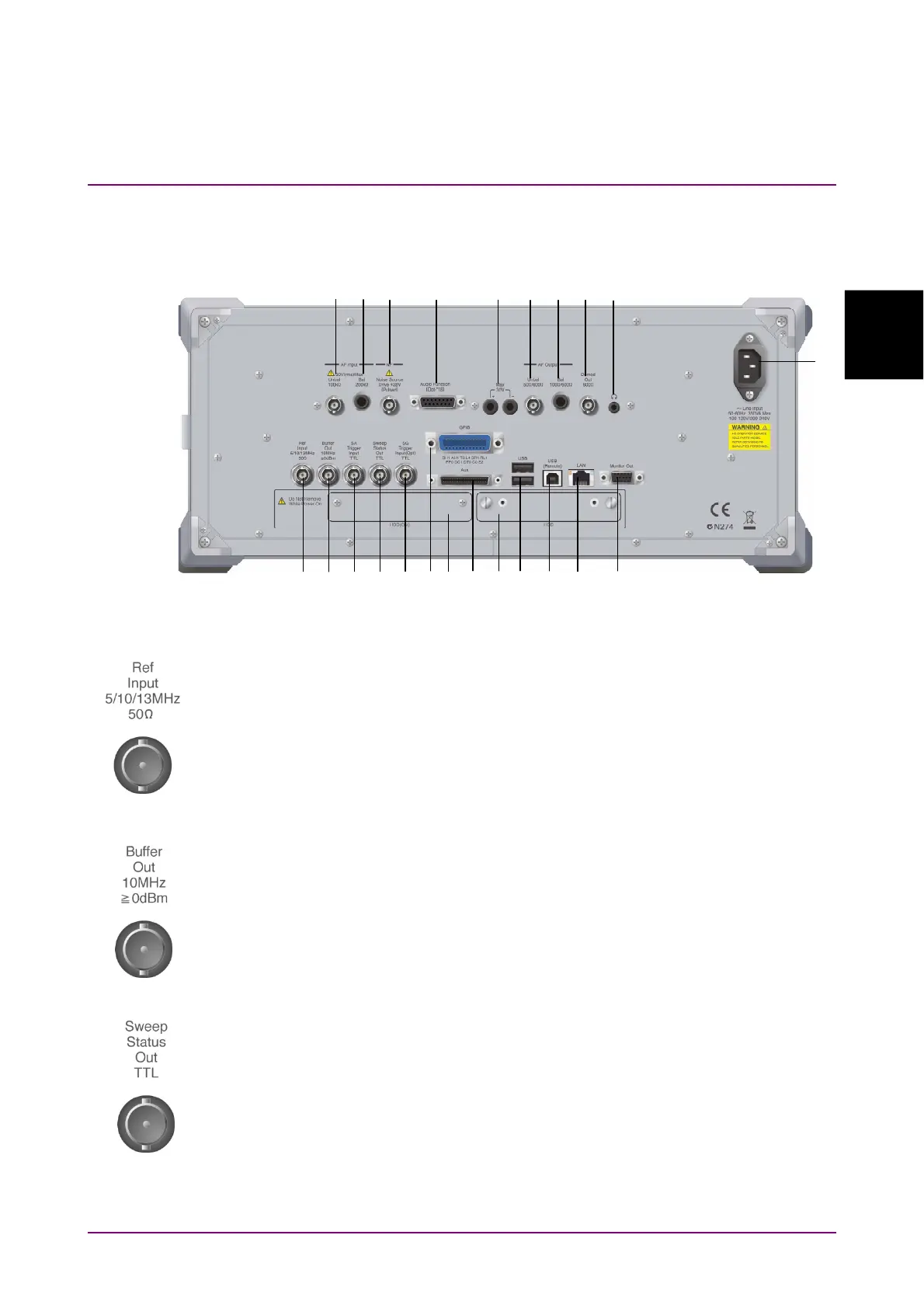

Figure 2.1.2-1 Rear panel
1 Ref Input connector (reference frequency signal input connector)
Inputs external reference frequency signal (5 MHz/10 MHz/13 MHz). It is
for inputting reference frequency signals with higher accuracy than the
instrument’s internal reference signal, or for synchronizing the frequency
of the mainframe to that of other equipment.
2 Buffer Out connector (reference frequency signal output connector)
Outputs the internal reference frequency signal (10 MHz). It is for
synchronizing frequencies between other equipment and the mainframe.
4 Sweep Status Out connector
Outputs signal when internal measurement is performed or
measurement data is obtained.
