Chapter 3 Measurement
3-98
3.9.7 Displaying AF Measure result
This section describes the display of the demodulated signal analysis
results in the AF Measure Result window.
Figure 3.2.1.4-1 Audio Analyzer Screen
Figure 3.2.1.5-1 Audio Analyzer + RF Signal Generator Screen

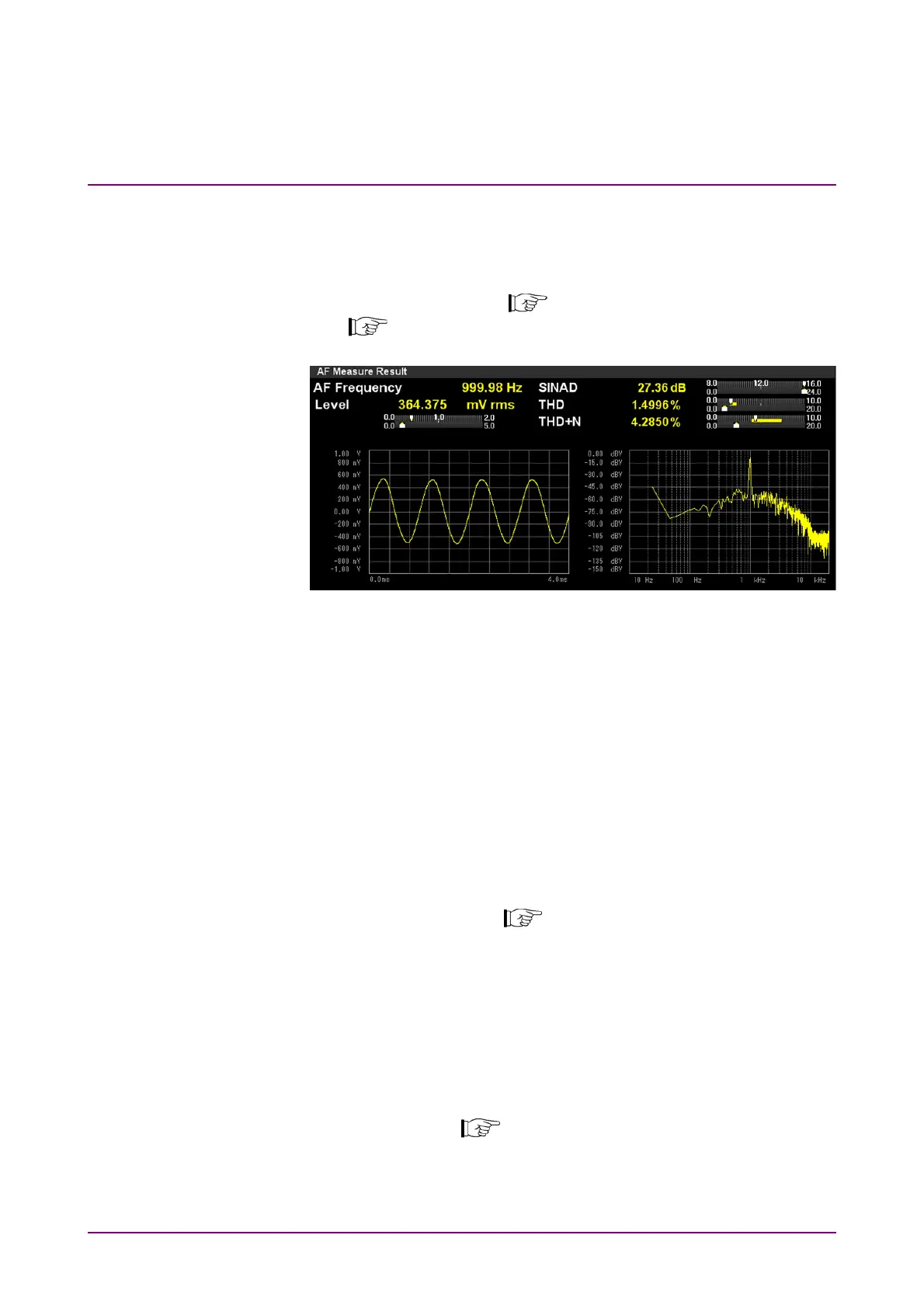

Figure 3.9.7-1 AF Measure Result Window
AF Frequency
■
Summary
Displays the maximum level frequency from the frequency
spectrum of input signal in Hz.
Displayed when AF Frequency Reference is set to Off.
AF Freq. Error
■
Summary
Displays the maximum level frequency from the frequency
spectrum of input signal as a value relative to the reference.
Displayed when AF Frequency Reference is set to On.
3.9.1.1 “Setting AF Frequency Reference”
Level
■
Summary
Displays the level of the AF Frequency above.
SINAD
■
Summary
Displays the SINAD measurement results.
3.9.3 “Setting for distortion factor measurement”
