Chapter 3 Measurement
3-56
3.4.10 Displaying AF Measure Result (TX-AF)
The AF Measure Result (TX-AF) window displays the analysis result of
modulation signal.
Figure 3.2.1.1-1 TX Mode Screen
It is not displayed when Display Mode is Carrier.
3.4.8.3 Setting Display Mode

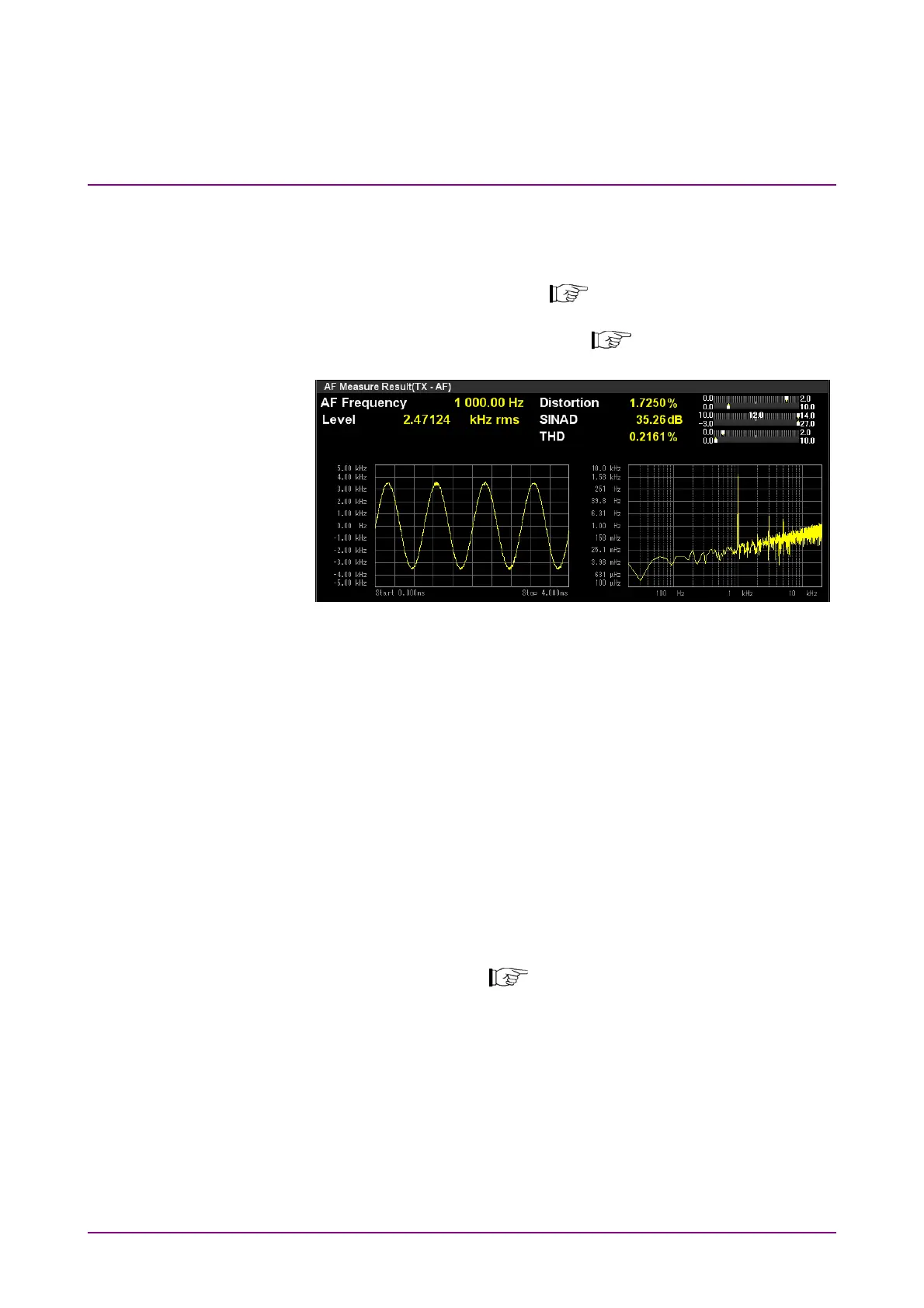

Figure 3.4.10-1 AF Measure Result (TX-AF) Window
AF Frequency
■
Summary
Displays the maximum level frequency from the frequency
spectrum of demodulated signal in Hz unit.
Displayed when AF Frequency Reference is Off.
It is not displayed when Display Mode is Modulation.
AF Freq. Error
■
Summary
Displays the maximum level frequency from the frequency
spectrum of demodulated signals in relative value to the reference.
Displayed when AF Frequency Reference is On.
It is not displayed when Display Mode is Modulation.
3.4.3.1 “Setting AF Frequency Reference”
Level
■
Summary
Displays the level of the Frequency above. The unit of measurement
result depends on the modulation method. kHz rms, radian rms,
and % rms are used for FM modulation,

M modulation, and AM
modulation respectively.
