Chapter 3 Measurement
3-12
[6] Meter
Displays the measurement results.
Figure 3.2.1.5-2 Setting Meter examples
3.9.4 Setting Meter
3.2.1.5 RX mode (Audio Analyzer) + RF Signal Generator screen
Under the following conditions, selecting RX mode displays the screen
below.
●
The Analog Signal Generator (MS2830A-088/188) or the Analog
Function Extension Option for Vector Signal Generator
(MS2830A-029/129) is installed.
●
The MS2830A-018/118 Audio Analyzer is installed.
[1]
[6]
[2] [3] [5]
[4]
[7]

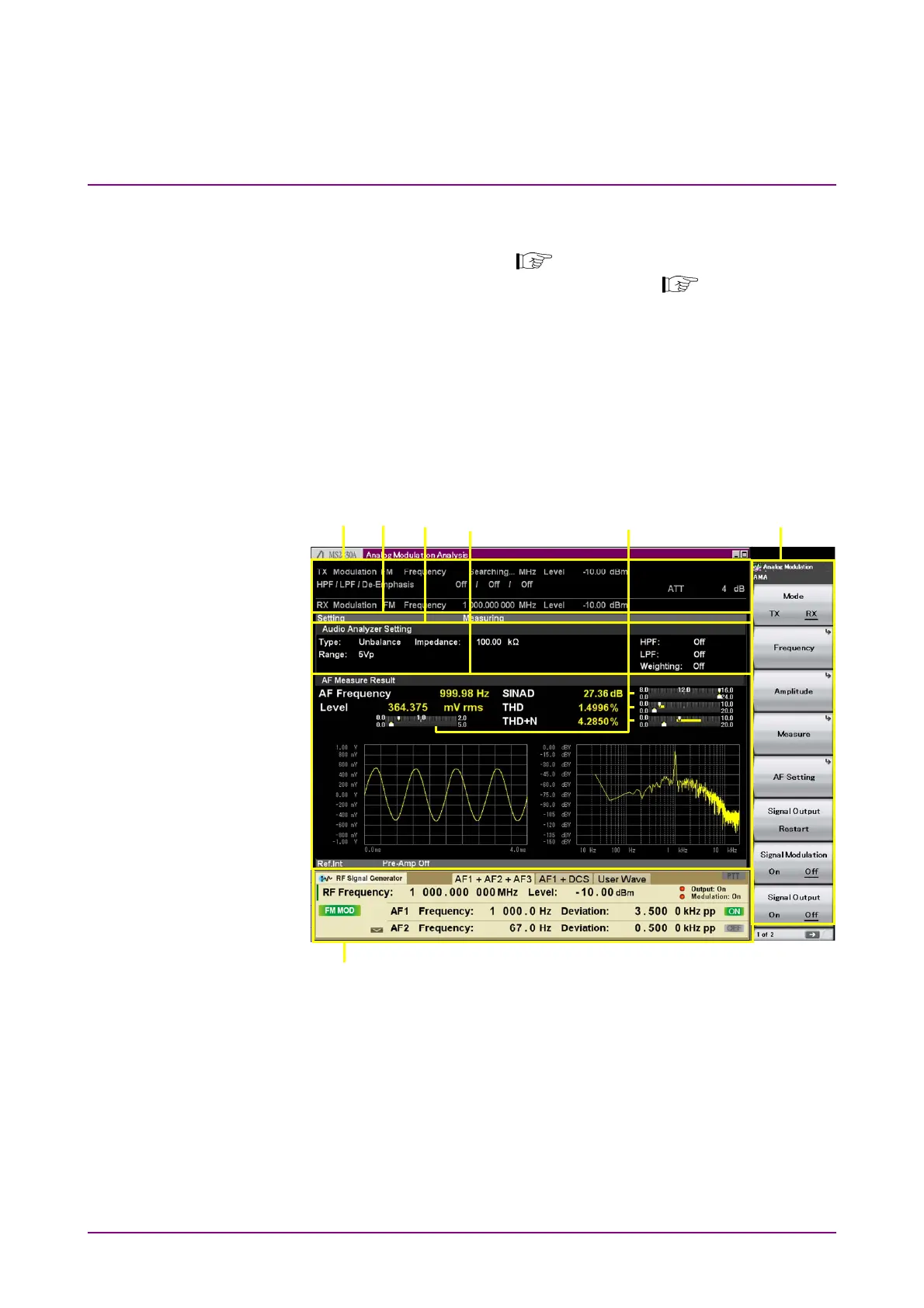

Figure 3.2.1.5-1 Audio Analyzer + RF Signal Generator Screen
[1] Measurement parameter
Displays the specified parameter.
[2] Status message
Displays signal status.
[3] Audio Analyzer Setting window
Sets analysis conditions for AF input signals.
