3.2 Basic Operation
3-11
3
Measurement
3.2.1.4 RX mode (Audio Analyzer) screen
Under the following conditions, selecting RX mode displays the screen
below.
●
Neither the Analog Signal Generator (MS2830A-088/188) nor the
Analog Function Extension Option for Vector Signal Generator
(MS2830A-029/129) is installed.
●
The MS2830A-018/118 Audio Analyzer is installed.
[1] [2] [3] [4]
[5]

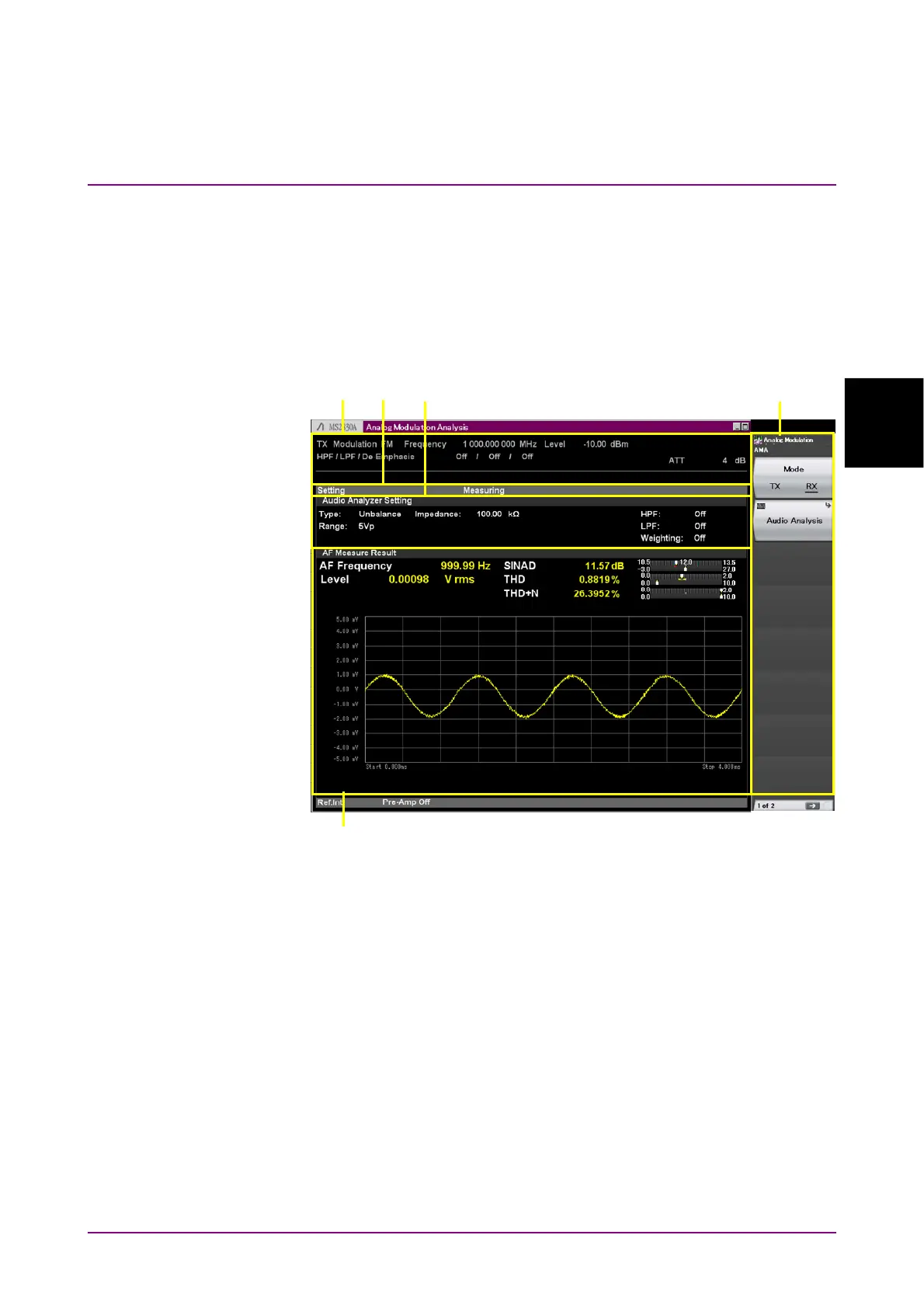

Figure 3.2.1.4-1 Audio Analyzer Screen
[1] Measurement parameter
Displays the specified parameter.
[2] Status message
Displays signal status.
[3] Audio Analyzer Setting window
Sets analysis conditions for AF input signals.
[4] Function menu
Displays the functions executable with function keys.
[5] AF Measure Result window
Displays the frequency, level, distortion factor, and graph of AF
input signals.
