iHP Manual 115 | P a g e

iHP Owners Manual

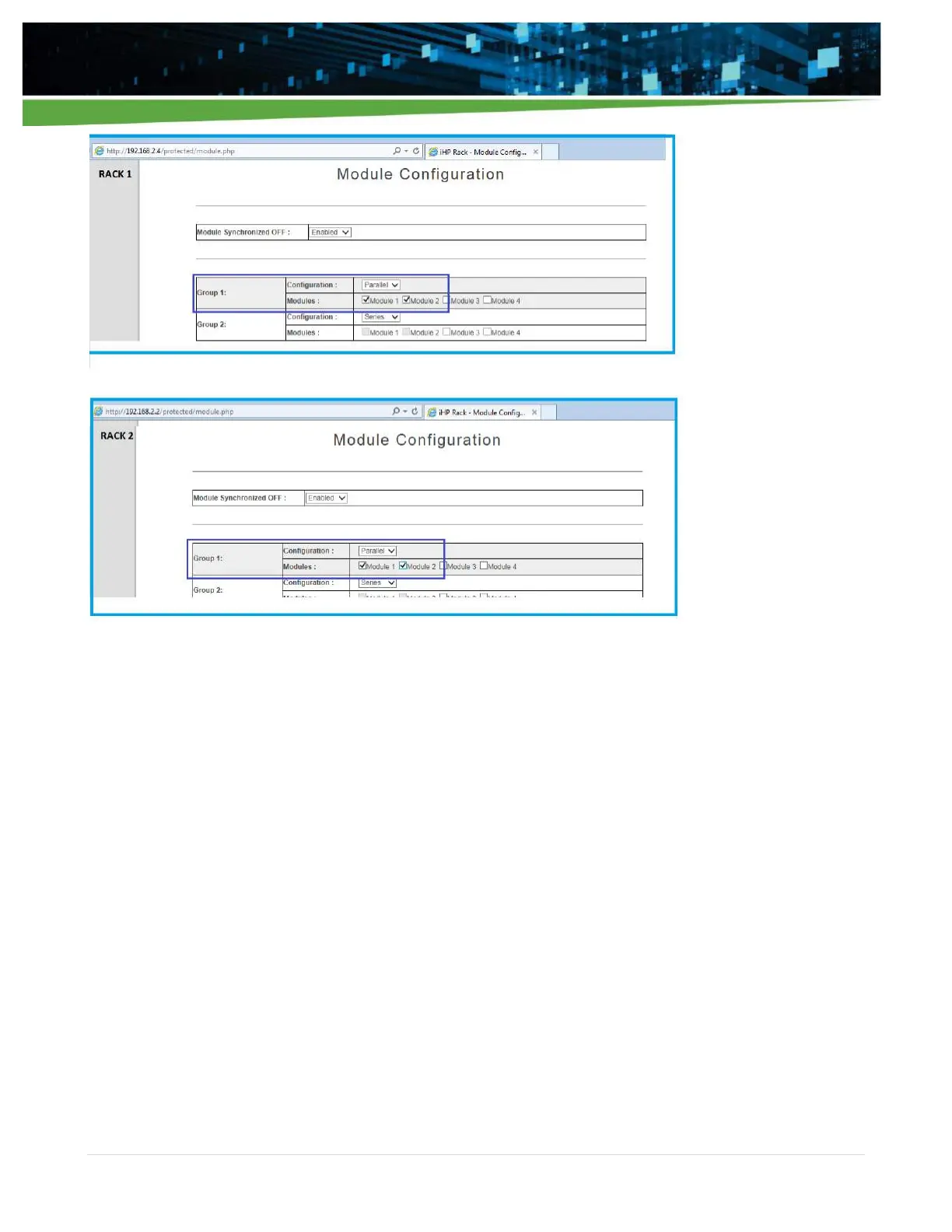

Above sample Multi Rack operation is using 2 units of iHP 12KW Rack with two modules each inserted per

Rack.

The 2 modules, Module 1 & Module 2 are group in Group 1.

Broadcast address is set at 192.168.2.255.

Using Group 1 address, the modules included in the group will receive the write or read command

simultaneously.
