Artesyn iHP - Rack Section; Internal Ambient Temperature OTP

To Next Page

To Previous Page

iHP Manual 91 | P a g e

iHP Owners Manual

 Address 2

 Address 3

 Address 4

 Address 5

CAN broadcast address is set to address seven. RS485 does not have any broadcast address.

5.1.3 Rack Section

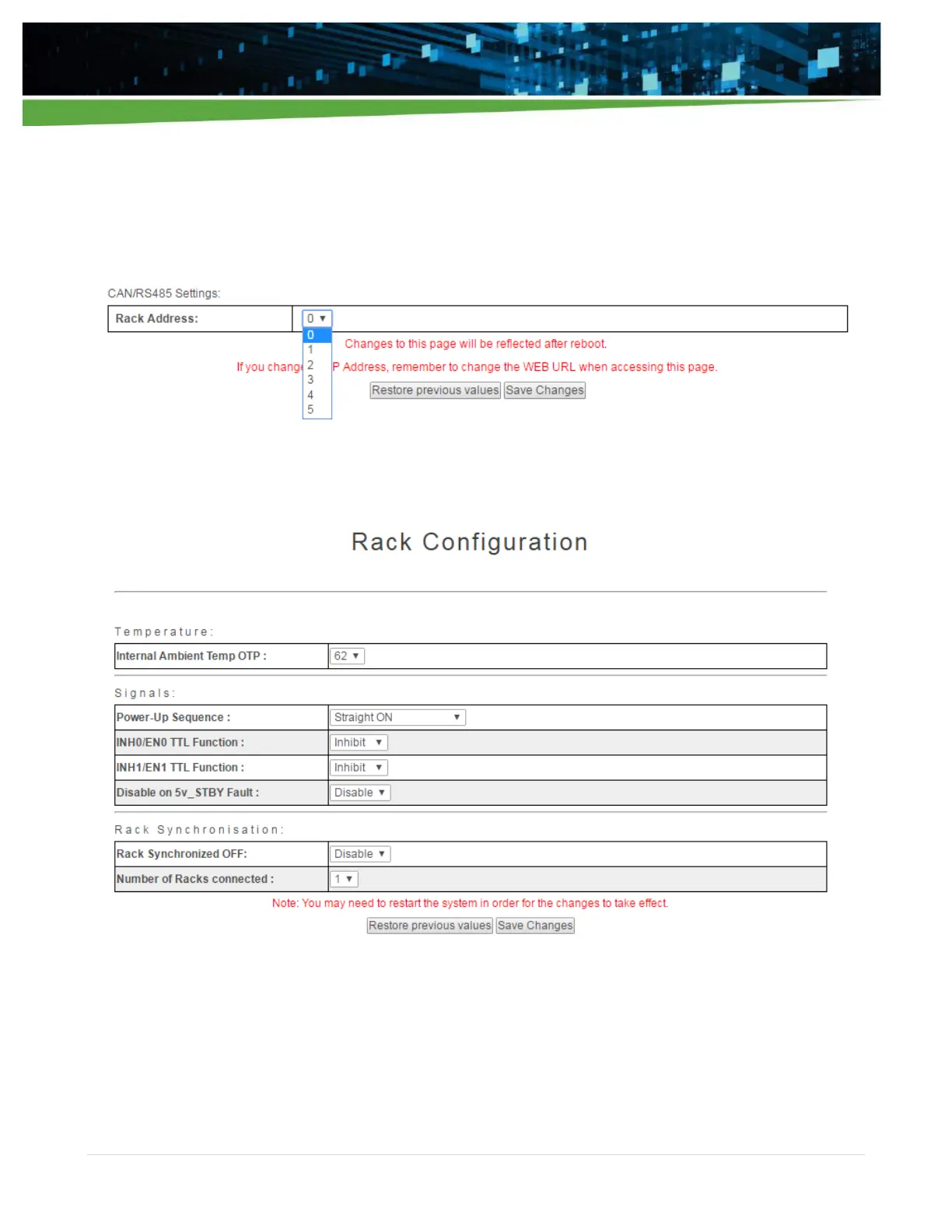

Configuration of rack-related parameters can be updated in this WebTool section.

5.1.3.1 Internal Ambient Temperature OTP

This configuration allows the user to set for the desired rack’s internal ambient temperature in which the rack

will trigger the OTP.

 The user can set the Ambient OTP from 0-70 degrees Celsius.

 OT warning will be flagged when the temperature reaches Ambient OTP less 4°C.
