iHP Manual 23 | P a g e

iHP Owners Manual

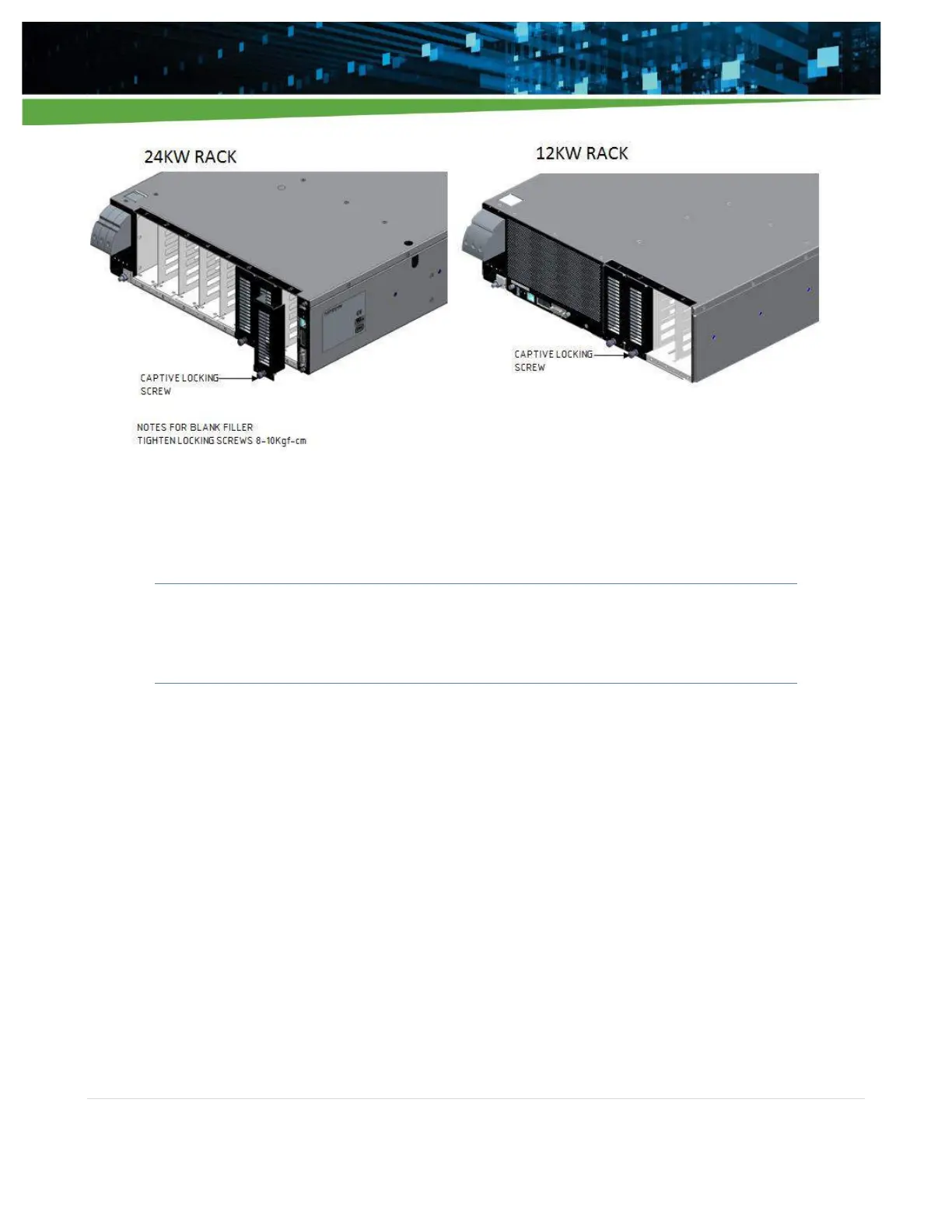

Figure 2-4 Blank panel covering for rear of system

2.5 Input and Output Wiring

Warning! - Disconnect AC power before wiring the iHP system. Due to possible remote

operation, it is important to disconnect power at AC breaker before wiring the output

connections.

Table 2-1 shows the recommended cable ampacities from the National Electrical Code. Local regulations may

differ and should be followed when wiring the system.
