iHP Owners Manual
Table 2-5
Model
Min Voltage
Rating (V)
Min Current
Rating (A)
Maximum Vf
Use below recommended device or its equivalent
12V
45
300
0.9V @ 160A
(Tj = 125degC)
IXYS: DSS 2x160-0045A (45V 2x160A)
24V
45
200
0.9V @ 160A (Tj = 125degC)
IXYS: DSS 2x160-0045A (45V 2x160A)
32V
100
120
0.7V @ 80A (Tj = 125degC)
STMicroelecronics: STPS160H100TV (100V 2x80A)
48V
100
120
0.7V @ 80A (Tj = 125degC)
STMicroelecronics: STPS160H100TV (100V 2x80A)
80V
150
80
1.5V @ 50A (Tj = 125degC)
STMicroelecronics: STTH10002TV1 (200V 2x50A)
125V
200
50
1.5V @ 50A (Tj = 125degC)
STMicroelecronics: STTH10002TV1 (200V 2x50A)
200V
400
30
1.5V @ 60A (Tj = 125degC)
STMicroelecronics: STTH120R04TV1 (400V 2x60A)
250V
400
30
1.5V @ 60A (Tj = 125degC)
STMicroelecronics: STTH120R04TV1 (400V 2x60A)
For series connection, the remote sense for each module should be connected to its output busbar instead of
the output load.

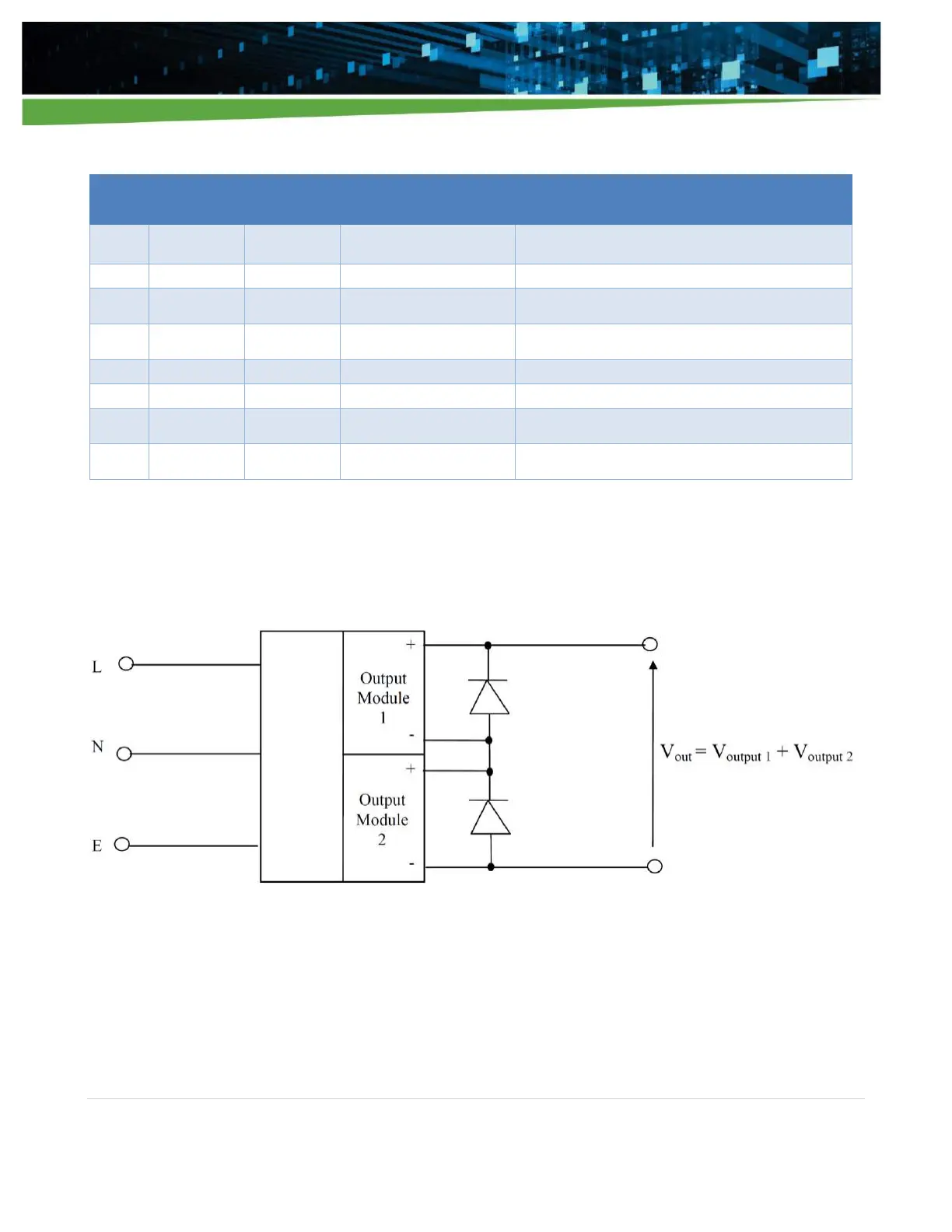

Figure 2-11 Antiparallel diode for use when connecting modules in series
