iHP Manual 19 | P a g e

iHP Owners Manual

Installation

2.1 Inspection of Packaging and IHP System

The iHP system is inspected before packaging and is shipped in containers designed to minimize damage

during transport. However, damage may still occur during transportation. Inspect the power supply and

packaging upon receipt. If damage is observed that indicates the iHP system was dropped or subject to other

damage, immediately notify the responsible shipping company.

2.2 Package Contents

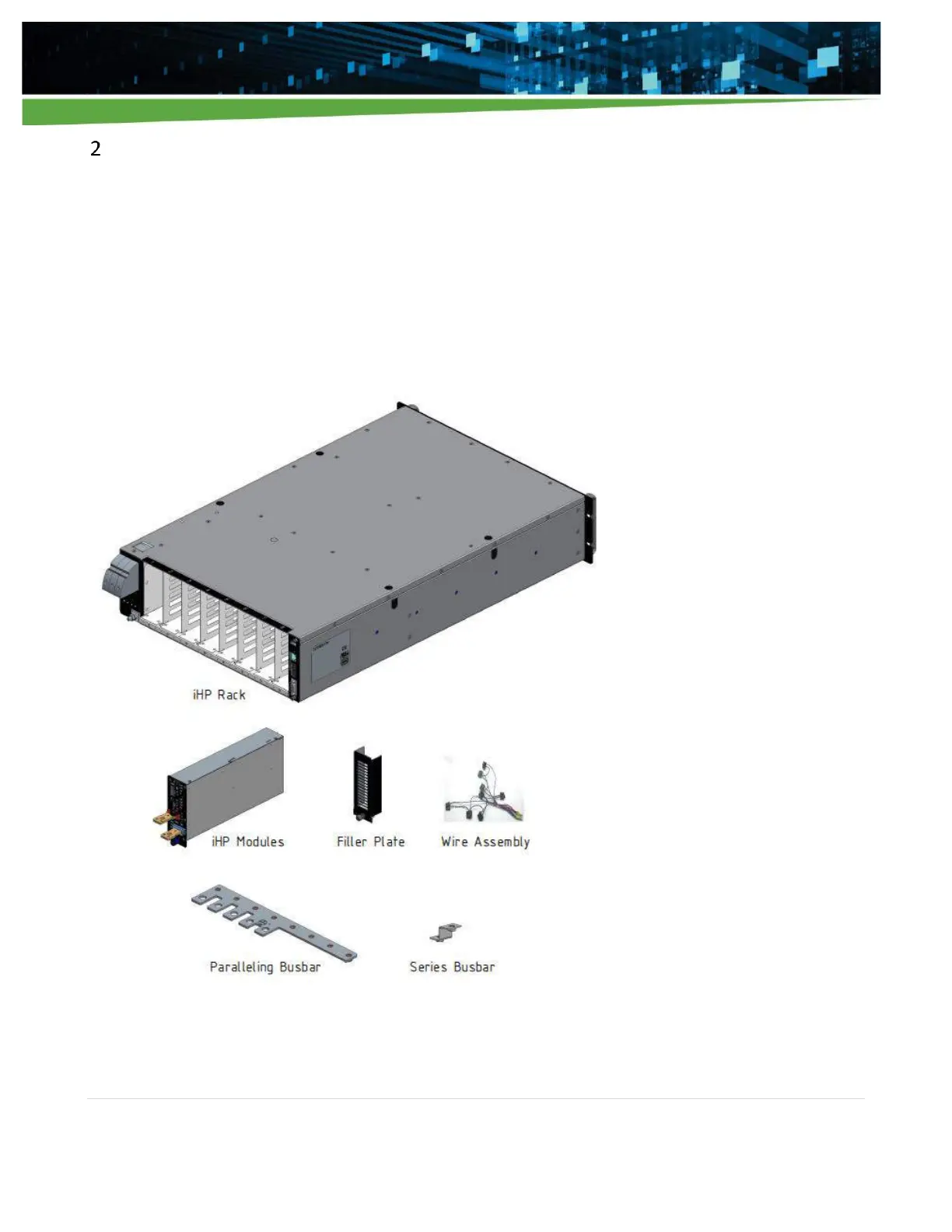

Figure 2-1 displays the typical contents of an iHP system.

Figure 2-1 Package contents of typical iHP system
