iHP Manual 60 | P a g e

iHP Owners Manual

4.2.2.3.3 GND

The GND is used as the common ground for RS485 or CAN communication. The GND signal is internally

connected to DSUB9 pin 2 5V Housekeeping Bias Return.

4.2.2.3.4 5V Housekeeping Bias

Supply Bias for CAN and RS485 communication and is internally connected to DSUB9 pin 1 5V Housekeeping

Bias.

4.2.2.4 LAN RESET BUTTON

Button to reset the Ethernet setting to STATIC with IP address 192.168.2.100

4.2.2.5 LAN STATUS LED

For future expansion

4.2.2.6 DSUB9 Port

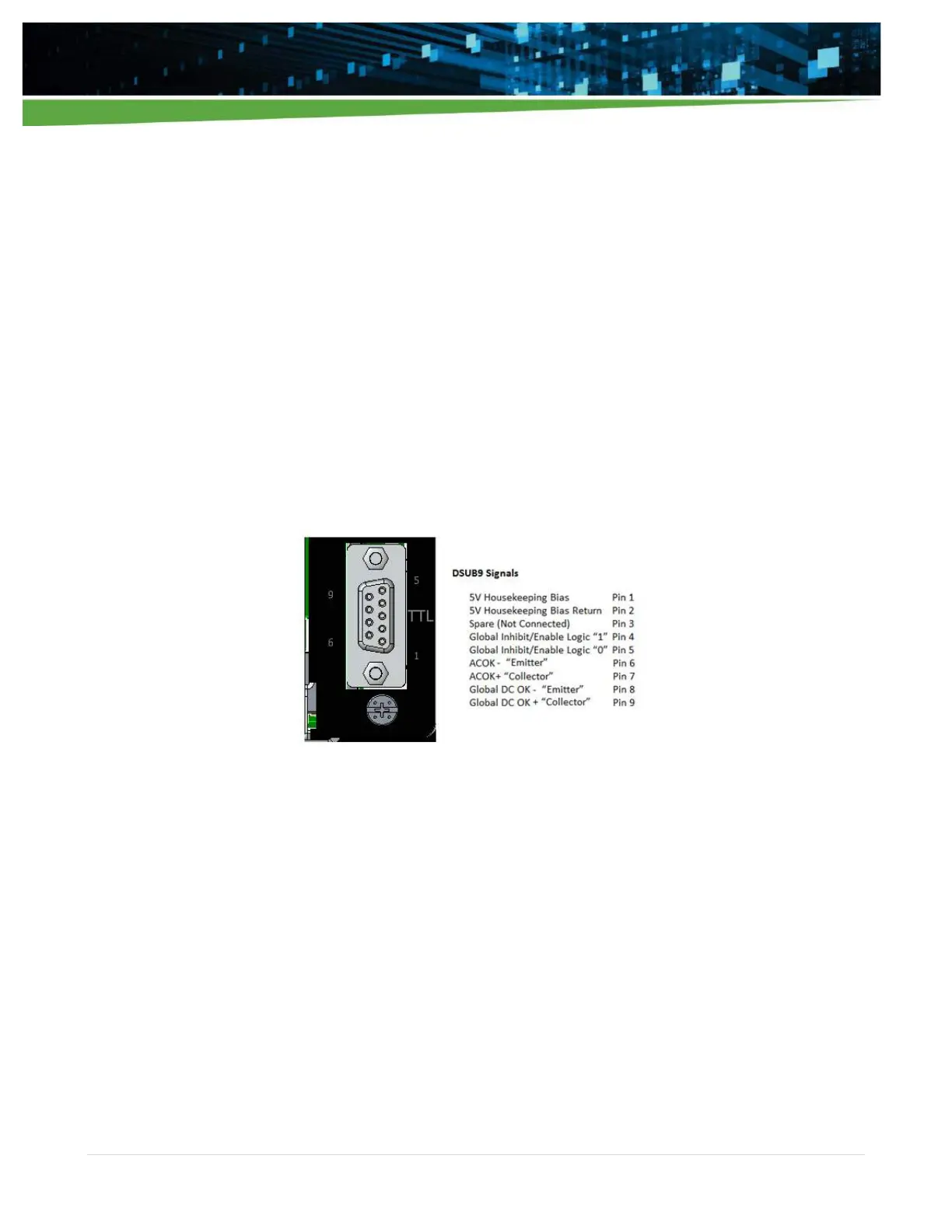

Figure 4-11 shows the DSUB9 signals and pin locations and Figure 4-13 lists the signals and their functions.

Figure 4-11 Dsub9 Port pinout
