iHP Manual 101 | P a g e

iHP Owners Manual

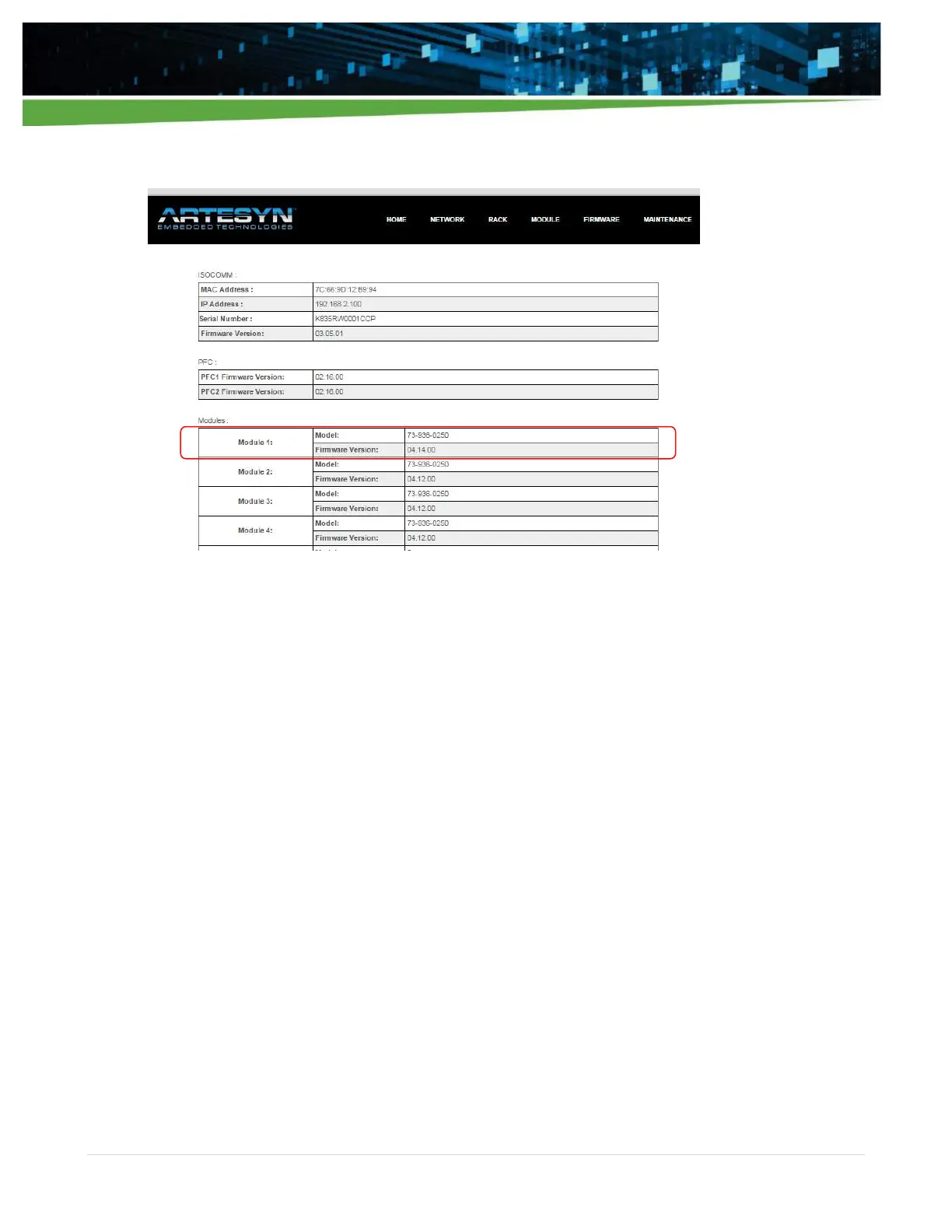

17. Go to WebTool Home page to check the FW version.

18. Turn-off Input AC. Firmware version checking is now complete.

Note: ISOCOMM WebTool will prevent module firmware from programming PFC devices.

ISOCOMM WebTool will prevent PFC firmware from programming module devices.

PFC and module configuration will not change after firmware upgrade.

5.1.6 Maintenance Section

This section contains provisions to reset the ISOCOMM.
