iHP Manual 41 | P a g e

iHP Owners Manual

 RS485/CAN Bus Terminator – RJ11 with 120 ohms resistor (ARTESYN P/N: TBD)

3.6 CAN Communication

iHP systems can support CAN communication with 1Mbps baud rate.

RS485/CAN Bus Terminator or 120Ω terminating resistors are required at both end terminals, PC and iHP rack.

For multiple iHP CAN communication, the terminating resistor should be placed on the iHP rack farthest from

the PC/Laptop.

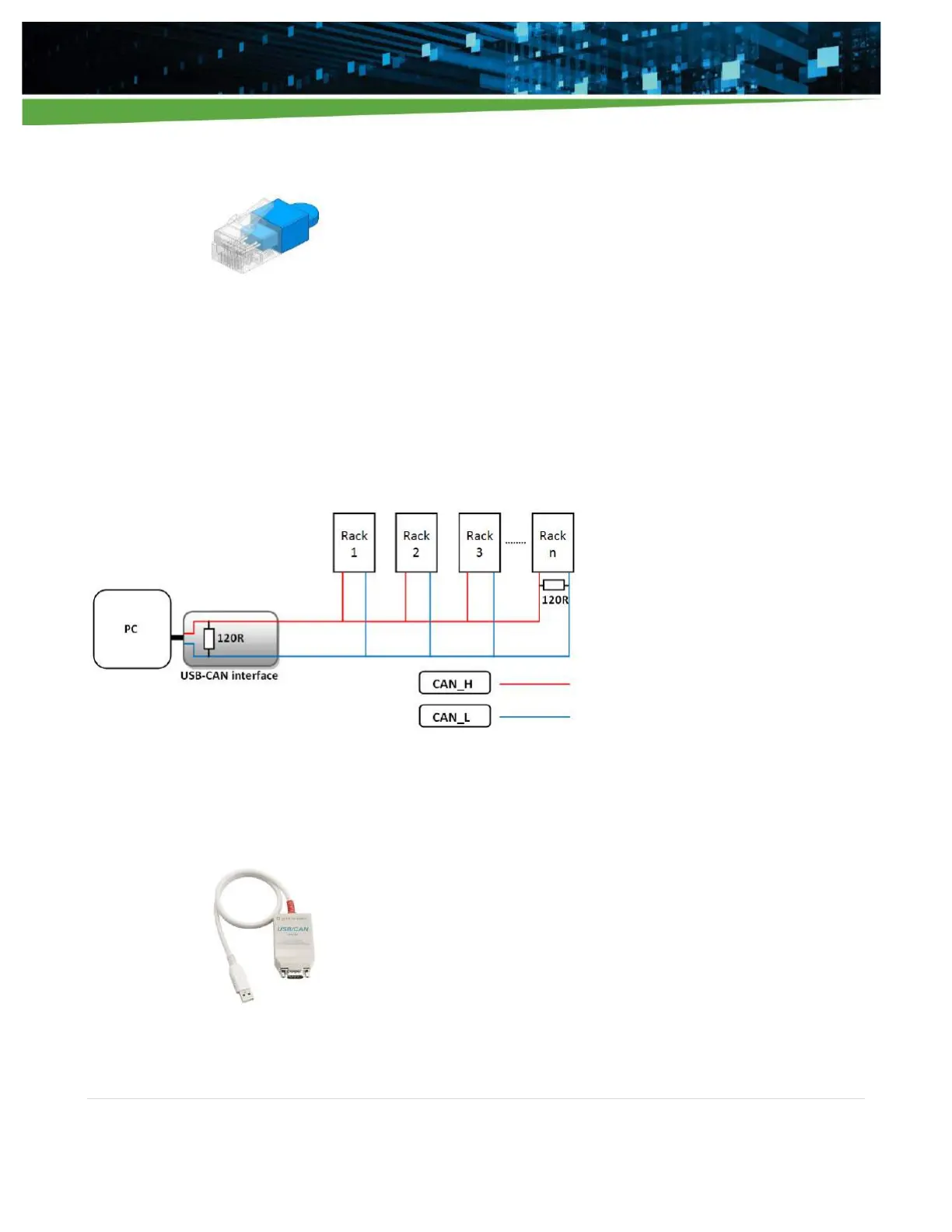

Figure 3-8 Terminating resistors are required for CAN interface

The recommended equipment for communicating with the iHP system via CAN are as follows:

 USB to CAN adapter – GRIDCONNECT IPEH-002022 or equivalent

 6-pin RJ11 Connector with Cable
