Artesyn iHP - Figure 2-5 Rear Panel Showing AC Wiring and Ground Terminal

To Next Page

To Previous Page

iHP Manual 25 | P a g e

iHP Owners Manual

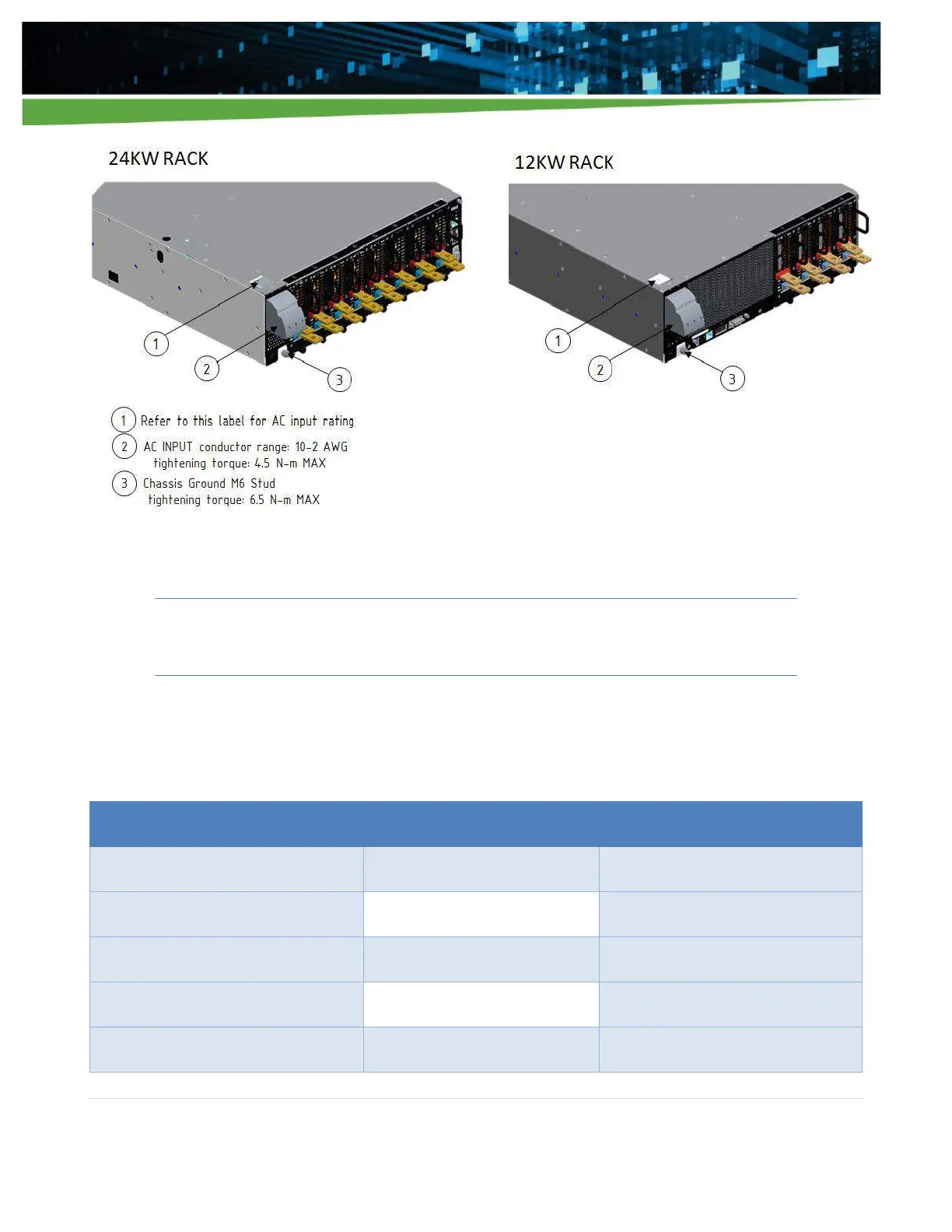

Figure 2-5 Rear panel showing AC wiring and ground terminal

Warning! - Applying a mismatched AC input voltage to what is indicated in the AC input

rating label can cause damage to the power supply and voids the warranty.

The rated input current and AC connection varies among different models. Table 2-2 shows the available

models and rated input current.

Table 2-2

iHP Rack Model Number

Rated Current

Wires to Connect

73-959-0001

41A

L1, L2, L3 and PE

73-959-0001L

75A

L1, L2, L3 and PE

73-958-0001

21A

L1, L2, L3 and PE

73-958-0001L

40A

L1, L2, L3 and PE

73-958-0001S

68A

L1, L2 and PE
