iHP Manual 88 | P a g e

iHP Owners Manual

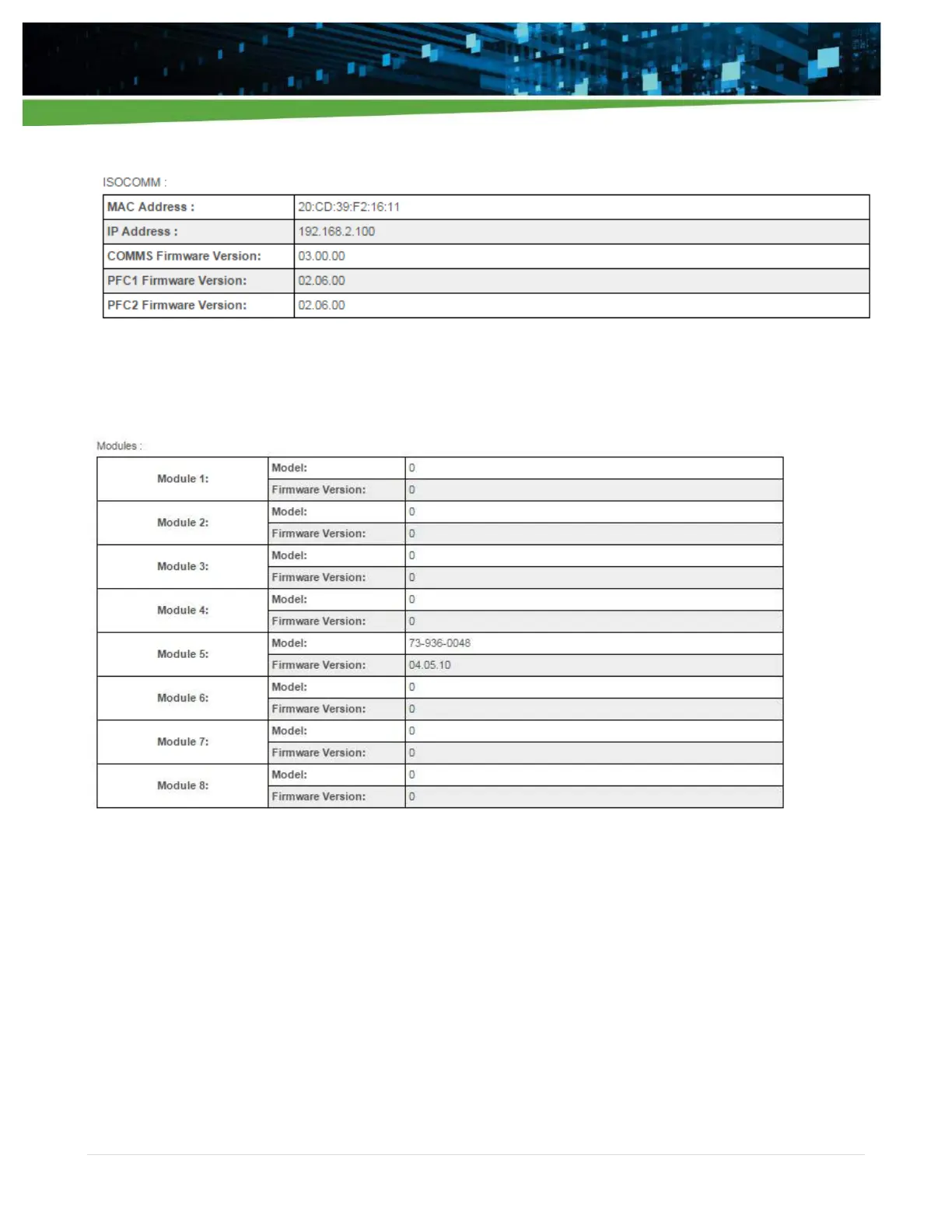

5.1.1.1 Home Page ISOCOMM Section

5.1.1.2 Home Page Module Section

 Each iHP rack slot’s module model number

 Each iHP rack slot’s module firmware version

5.1.1.3 Home Page Racks Section

 Racks connected (applicable to ISOCOMM SW v03.00.00)

 This section will be active when Rack Synchronize OFF is enabled in WebTool Rack Configuration.

 This function is needed during multi-rack operation. Multi-rack operation is discussed in Section 7.

 This field contains:

 IP address of the racks connected in multi-rack operation

 Serial Number of the racks connected in multi-rack operation

 Status of each rack connected in multi-rack operation (Good or Fault/Standby)
