iHP Manual 55 | P a g e

iHP Owners Manual

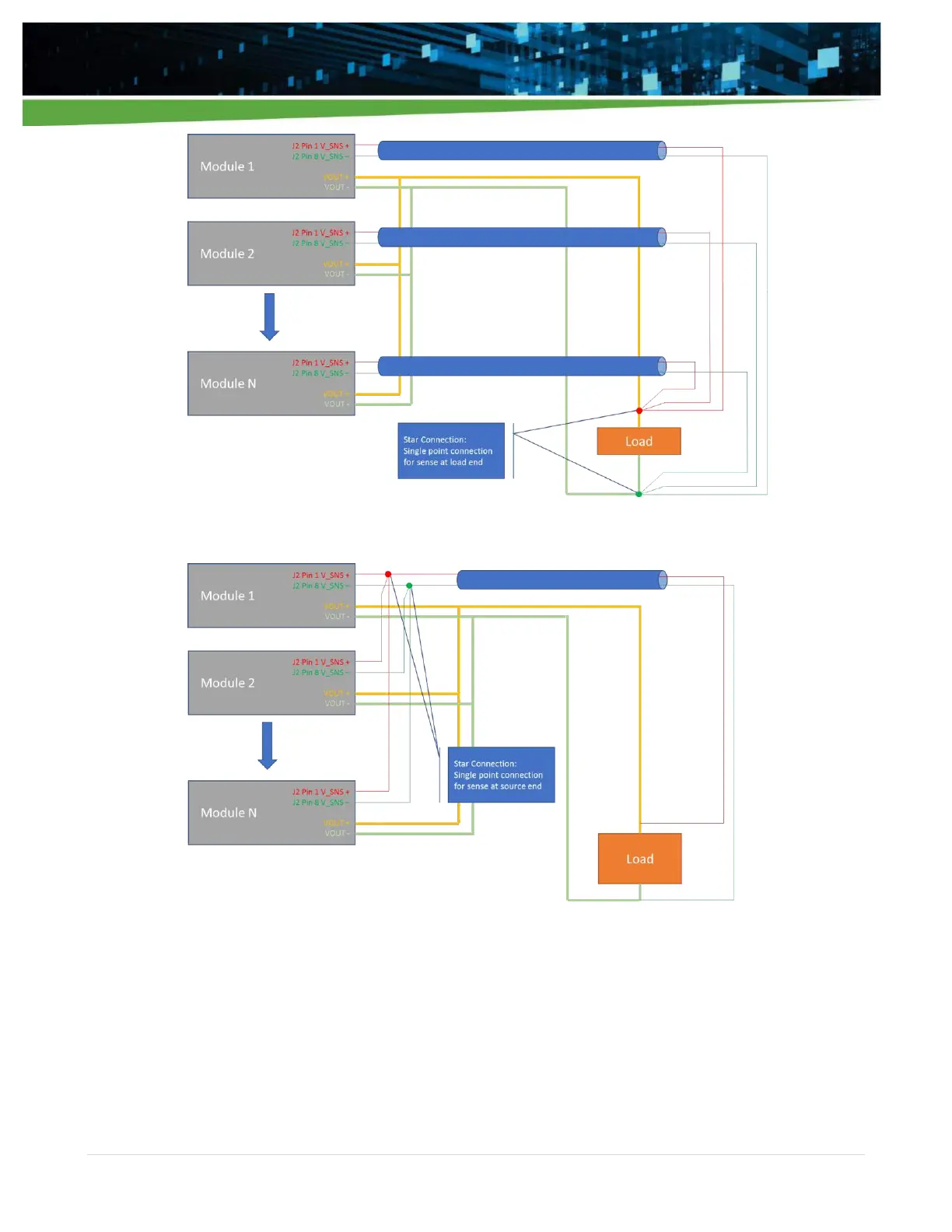

Figure 4-7 Examples of star connections for remote sensing

4.2.1.2.2 External Current Sense

An external shunt resistor can be connected to the iHP module. The current sensing will be transferred from

the iHP module internal shunt to external shunt. The iHP module’s EXT_ISENSE+ J2 Pin 3 and EXT_ISENSE- J2

Pin 9 signals are used for external current sense application.

The module configuration should be changed to enable external current sense operation via ISOCOMM

command module MODULE_CONFIG (D3h).
