iHP Manual 90 | P a g e

iHP Owners Manual

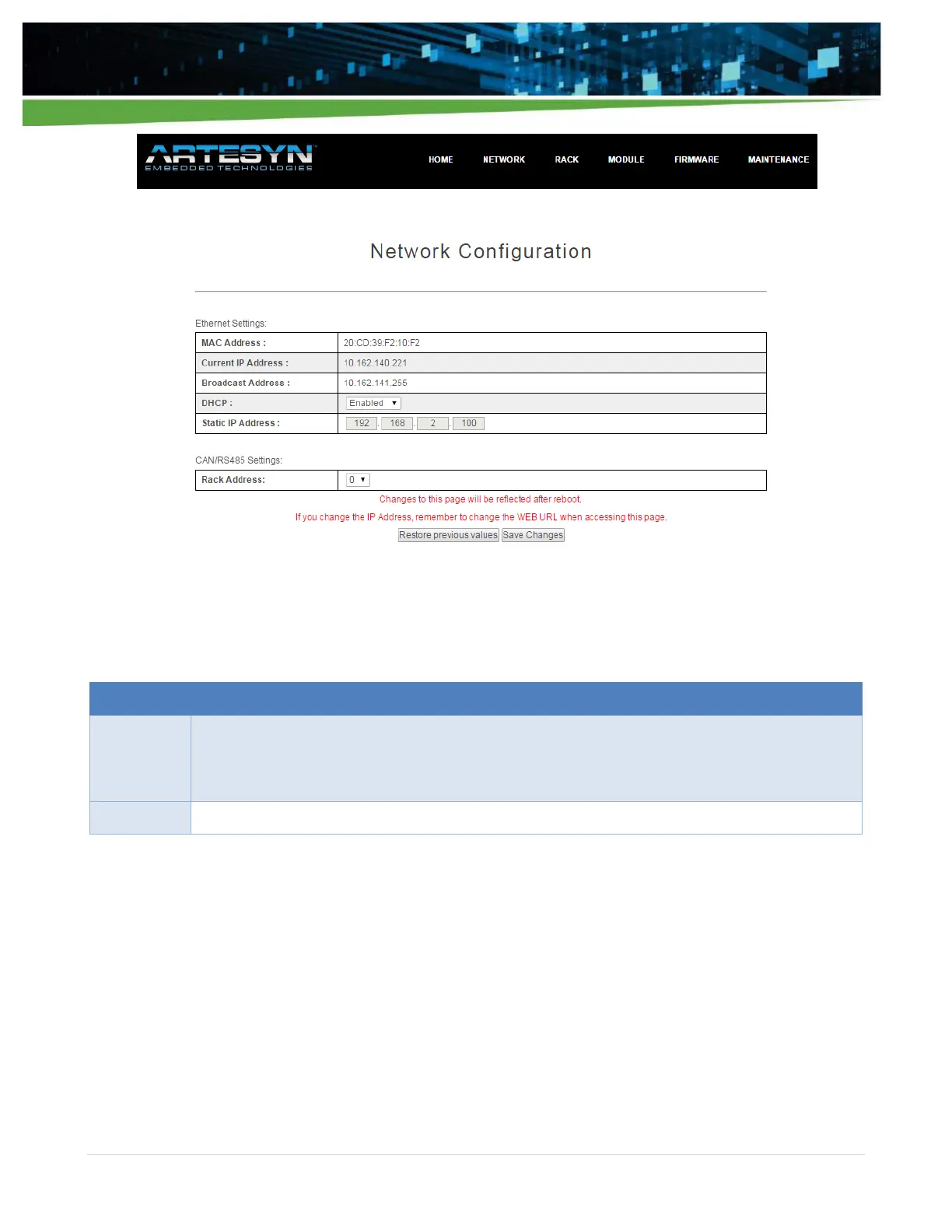

5.1.2.1 DHCP

This will allow user to enable or disable Dynamic Host Configuration Protocol.

Setting

Remarks

Enable

The router will automatically assign the IP address to the iHP rack.

Once the setting is activated, user will need to search for the IP address assigned by the

router.

Disable

IP address will be set to Static IP. User can update IP address in the “Static IP Address” field.

5.1.2.2 Static IP Address

This field will be used to enter user static IP address. This is applicable when the DHCP setting is disabled.

5.1.2.3 CAN/RS485 Setting

This field will be used to configure CAN / RS485 address.

A dropdown list will be available. Possible CAN / RS485 addresses are:

 Address 0

 Address 1
