Artesyn iHP - Figure 3-5 IHP System Connected Using a Router or Switch

To Next Page

To Previous Page

iHP Manual 38 | P a g e

iHP Owners Manual

If the user’s PC/Laptop needs to connect to the iHP system and the user’s network, the user should use a

router (static IP or DHCP) or switch (static IP) as shown in Figure 3-5.

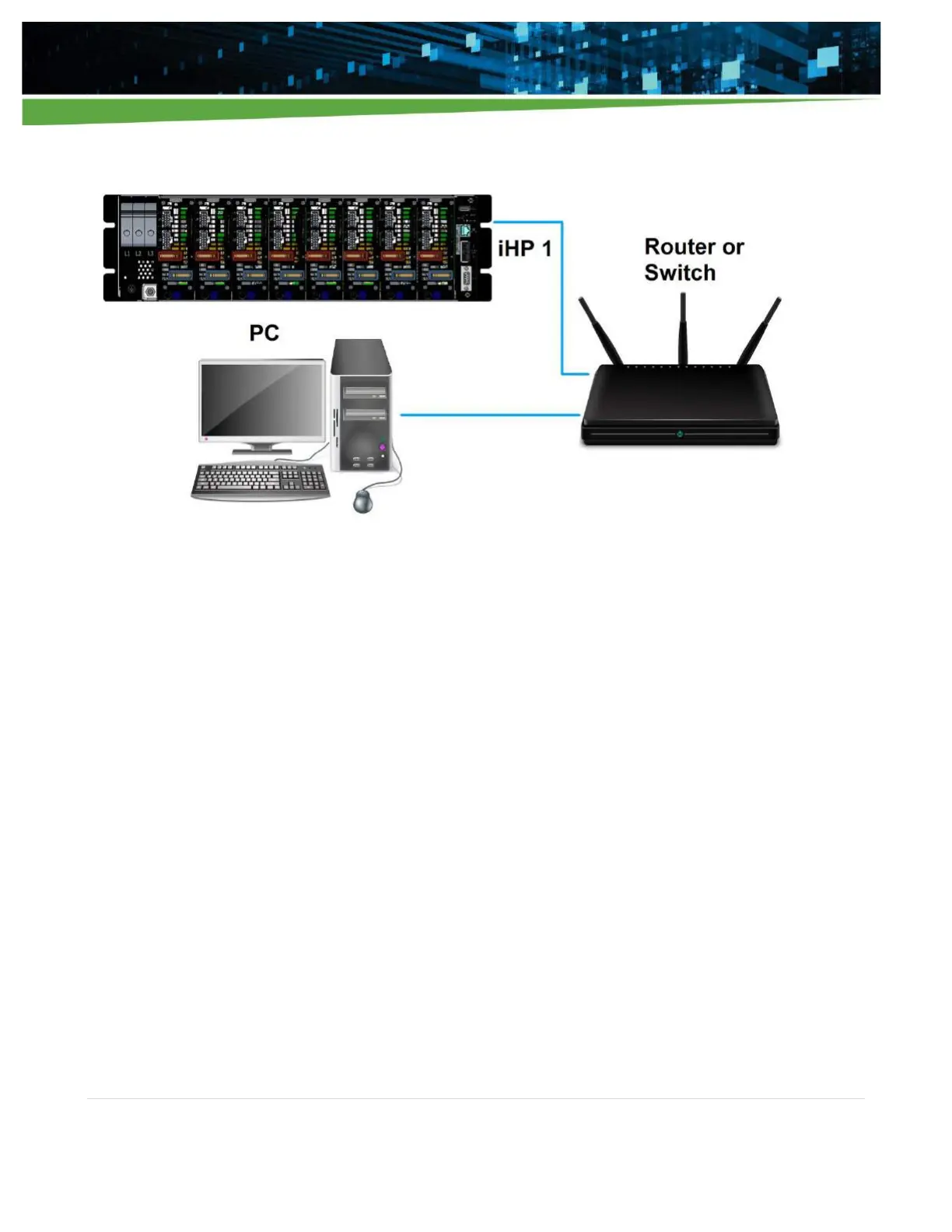

Figure 3-5 IHP system connected using a router or switch

Up to six iHP systems can be used on the same network at the same time. To communicate using a PC with

multiple iHP systems, the user can use a router (static or DHCP IP) or switch (static IP) as shown in Figure 3-6.
