iHP Manual 191 | P a g e

iHP Owners Manual

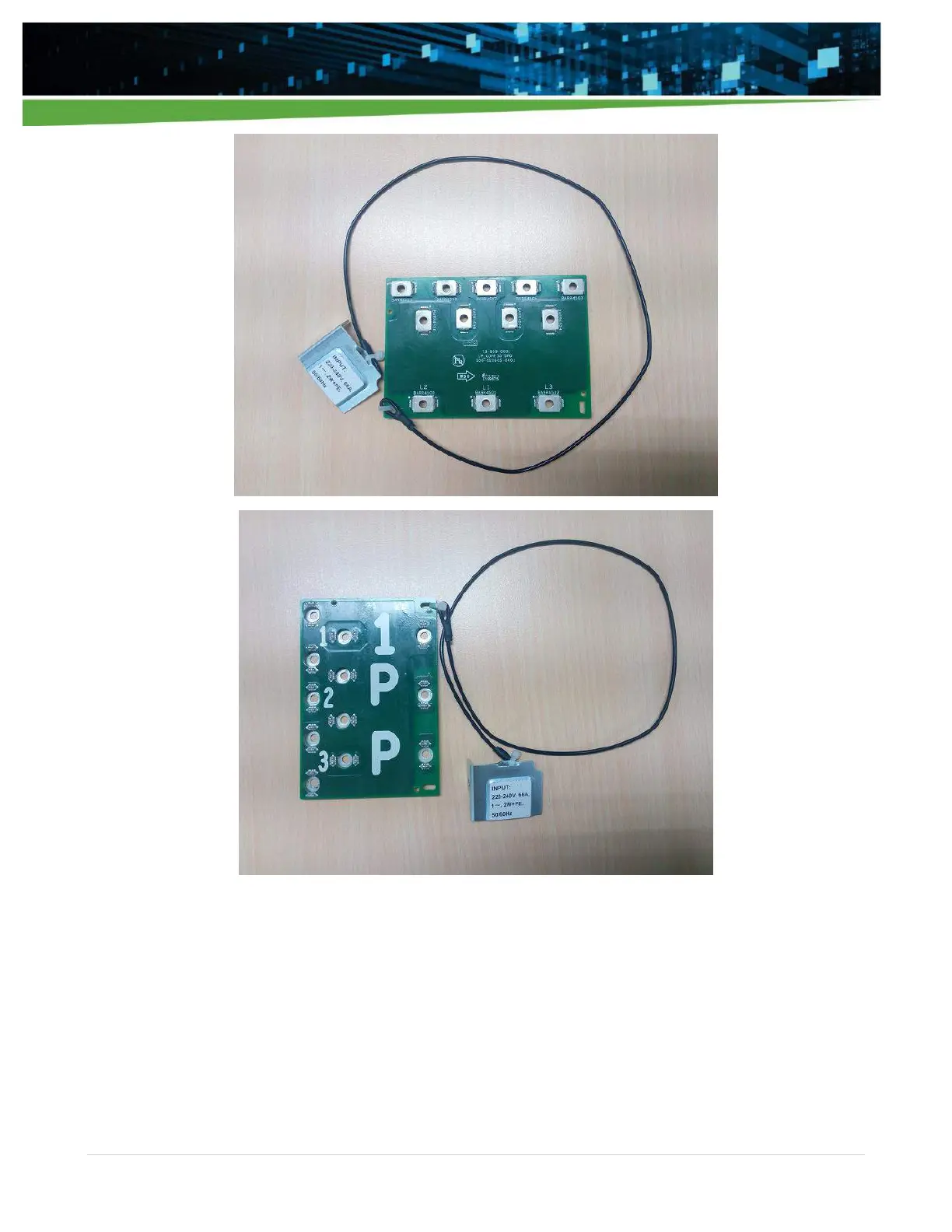

Required Tools for the Input Configuration Board Change.

- Torx screwdriver #15

- Torx screwdriver #20

Input Configuration Board Screw

Input Configuration Board screw is an M4 screw with 8mm length.

Recommended screw for the Input Configuration Board
