AS64 series AC servo drive Installation instructions
-14-
2.1.3 Models and dimensions
Frame size
Model
Outline dimensions
Mount
dimensions
Mount hole
(mm)
H
(mm)
W
(mm)
D
(mm)
A
(mm)
B
(mm)
A
AS64SRV20C2-S
160
42
141
32
150
M4(Φ5)
AS64SRV20C4-S
B
AS64SRV20C7-S
160
50
141
40
150
M4(Φ5)
AS64SRV21C0-S
C
AS64SRV21C5-S
170
67
180
54
162
M4(Φ5)
AS64SRV22C0-S
2.2 Drive installing
2.2.1 Installation mode

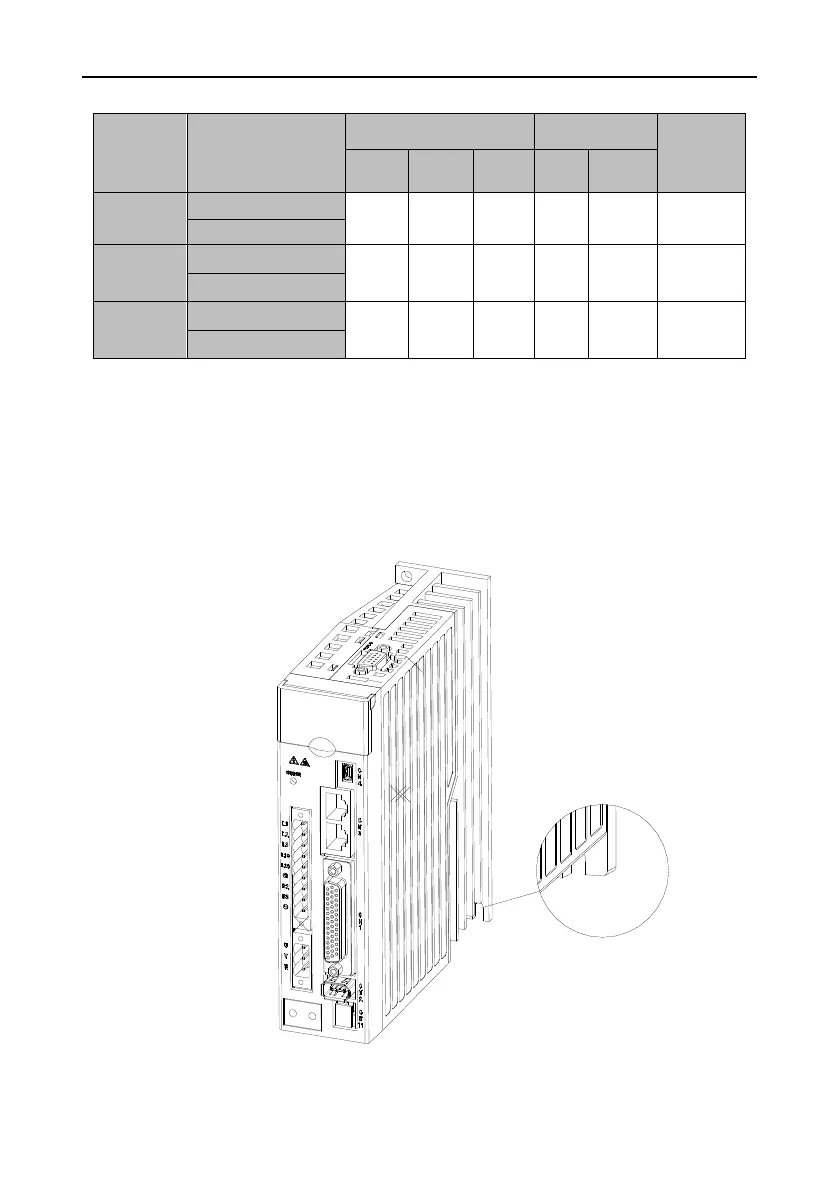

Base installation mode
There is a Φ5 installation hole at the lower left corner and one at the upper right corner of the rear
panel.
