AS64 series AC servo drive Wiring instructions
-23-
3.2 Main circuit terminal wiring

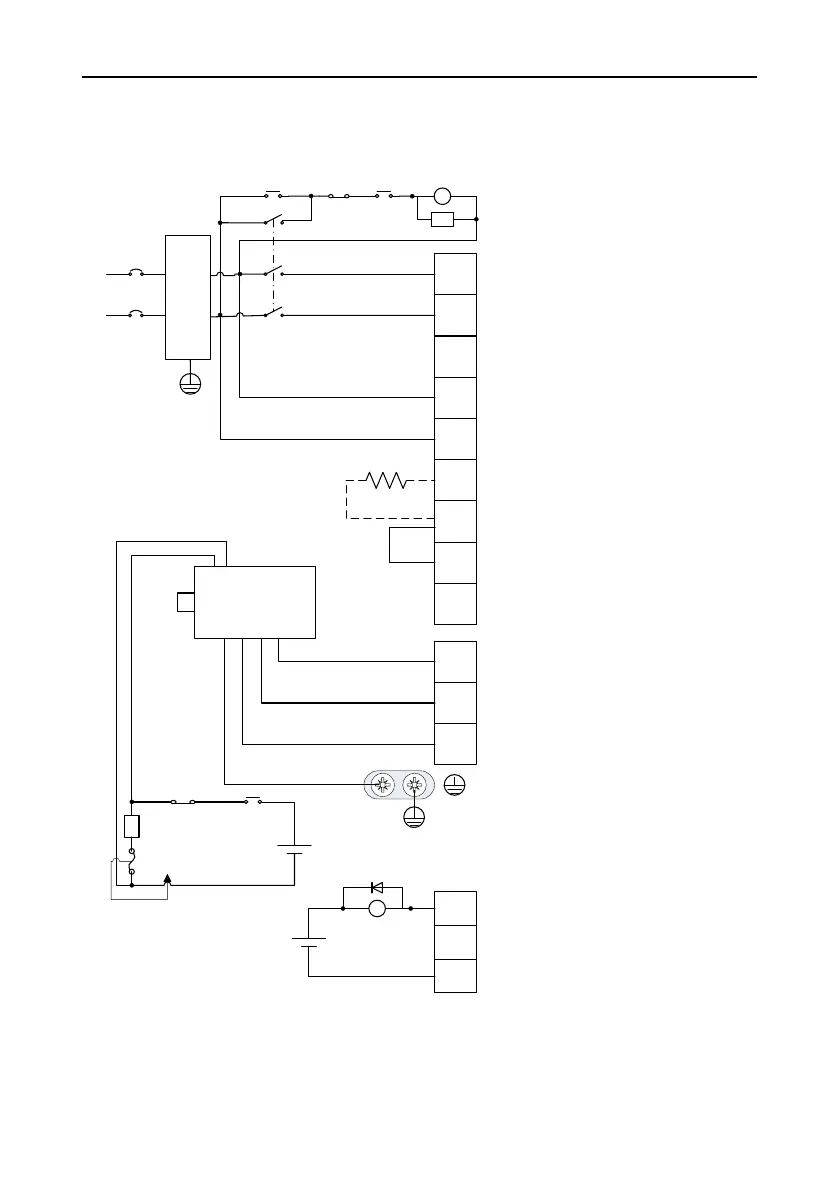

3.2.1 Single-phase 220V wiring diagram
· Do not remove the short-
connection cable between B2 and
B3 (for a drive of 750W or greater)
unless an external regenerative
brake resistor is used.
· If you use an external regenerative
brake resistor, remove the
connection cable between B2 and
B3 and connect the resistor as
shown in the dashed box.
· Ground the servo drive properly.
Otherwise, electrical shocks may
be caused.
· Prepare the 24VDC power for
electromagnetic braking by
yourself and isolate it from the
DC12~24V power for signal
control.
· Pay attention to free-wheeling
diode connection. Reversed
polarity may cause drive damage.
· Employ this emergency stop
circuit.
· Add a surge absorber to each end
of the electromagnetic contactor
coil.
· Input voltage of power:
AC220V(±15%)
· Connect the main circuit to
terminals L1 and L2.
Yellow/
Green
Surge
absorber
Fuse
Breaker MC
MC
ALM
CN1
Emergency
stop button
RY
EMI
Filter
DC 12~24V
(±10%)
DC 24V
(±10%)
OFF
ALM
ON
+
-
+
-
Motor
L1
L2
L3
L1C
L2C
B3
+
B2
U
V
W
-
DO-
DO+
· Connect the servo motor cables to
the drive output terminals U, V,
and W according to the correct
phase sequence. Incorrect phase
sequence may cause a drive fault.
