Step 5: Mount Your t180L
To mount your t180L on the back of a monitor, please do the following:
1. Refer to Step 2 and Step 4 to prepare required screws for mounting your t180L.
• You will need two (2) screws of type
2
to secure the bracket to your t180L.
• You will need two (2) screws of type
1
or
2
to secure the bracket to the monitor.
2. Place your t180L on a at surface with the VESA mount hole side upward.

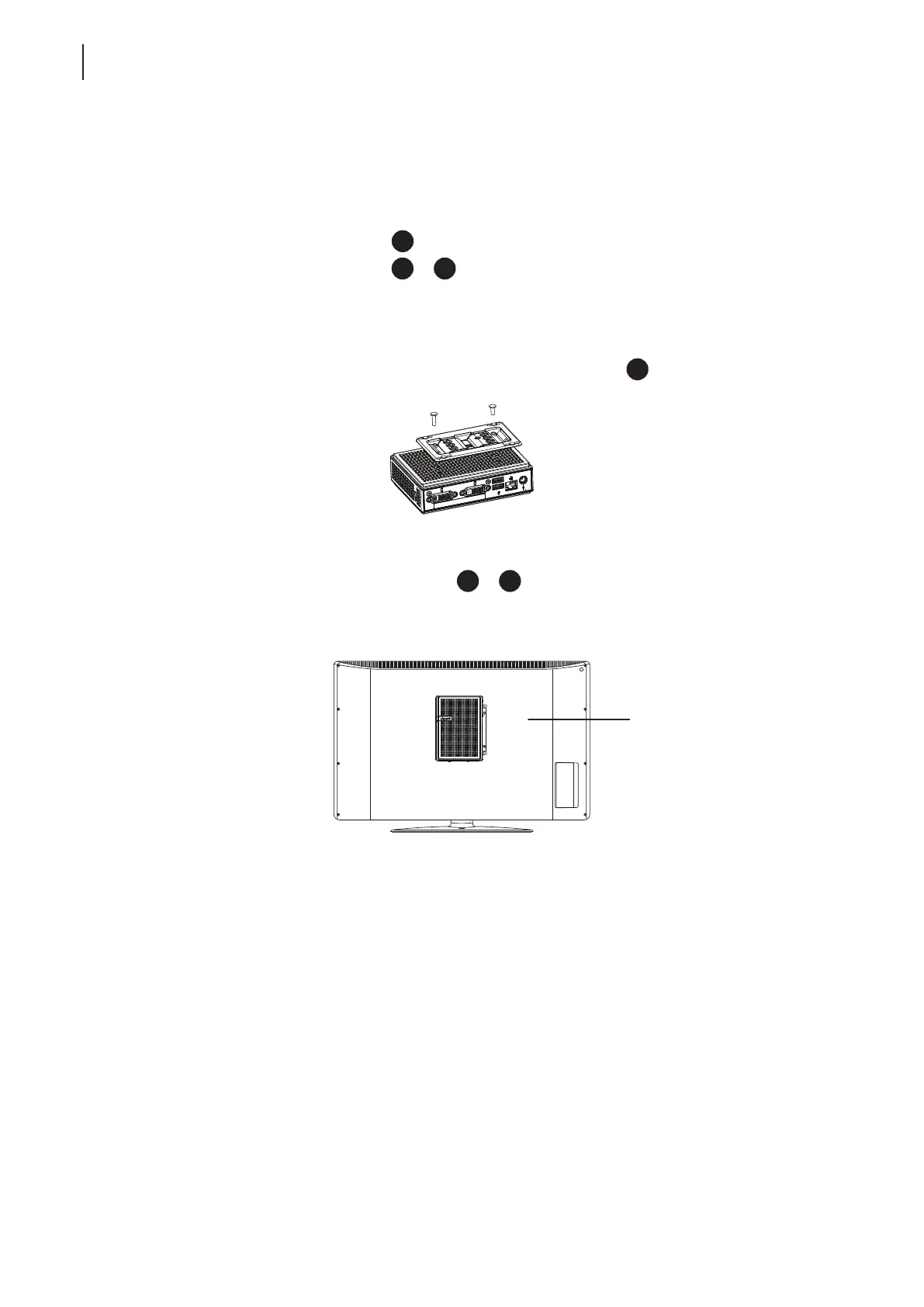

3. Refer to Step 2 to choose two of the four VESA mount holes on the bracket to align with two mount holes
on your t180L such that the bracket projects out and is closer to the rear panel than the front one as shown
below, and then secure the bracket to your t180L with two (2) screws of type
2
.
4. Align the mount holes on the bracket with the mount holes on the back of the monitor, and then secure the
bracket to the monitor with two (2) screws of type
2
or
1
. Ensure that your t180L is located in the center
of the monitor and the rear panel of your t180L is facing rightward as shown below.
Have t180L’s rear panel
facing rightward.
