Avaya CS 1000 Maintenance

Channel restoration
When the alarm condition improves, the PRI is restored to service as follows:
1.
The local alarm is cleared.
2. After 11 seconds, the PRI stops sending a remote alarm indication to the far end.
3. The D-channel automatically attempts to re-establish. If this is successful, the B-
channels are placed into the idle state and made available for calls.

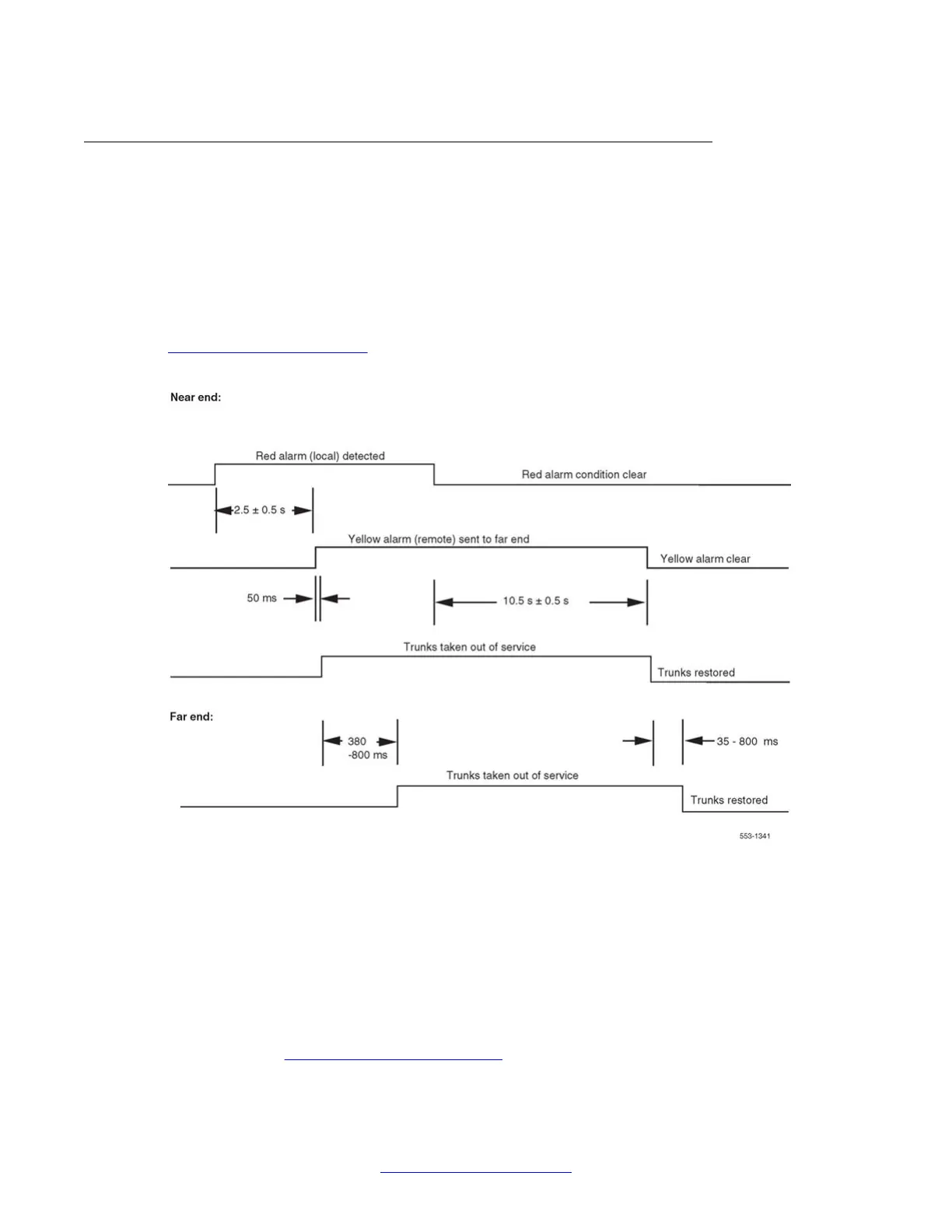

Figure 1: PRI alarm timers on page 18 shows the progression of the system Red and Yellow
(local and remote) alarm timers.
Figure 1: PRI alarm timers
Red alarm status check
1.
Check PRI status using the following prompts:
LD 60 STAT (loop)
2. Check PRI alarm counters using the following prompts:
LD 60 LCNT (loop)
3. See
Table 2: PRI problem solving on page 20
for solutions to possible PRI
problems.
PRI fault clearing
18 ISDN Primary Rate Interface Maintenance November 2011
Comments? infodev@avaya.com
