Installing the ODUspe
The ODUspe is attached to its antenna using a mounting plate supplied with each
ODU. See Figure 3-1. The six countersunk screws (item 8) fix the plate to the
antenna, and the four bolts (item 9) fix the ODUspe to the plate. Installation
instructions are provided with each ODU.

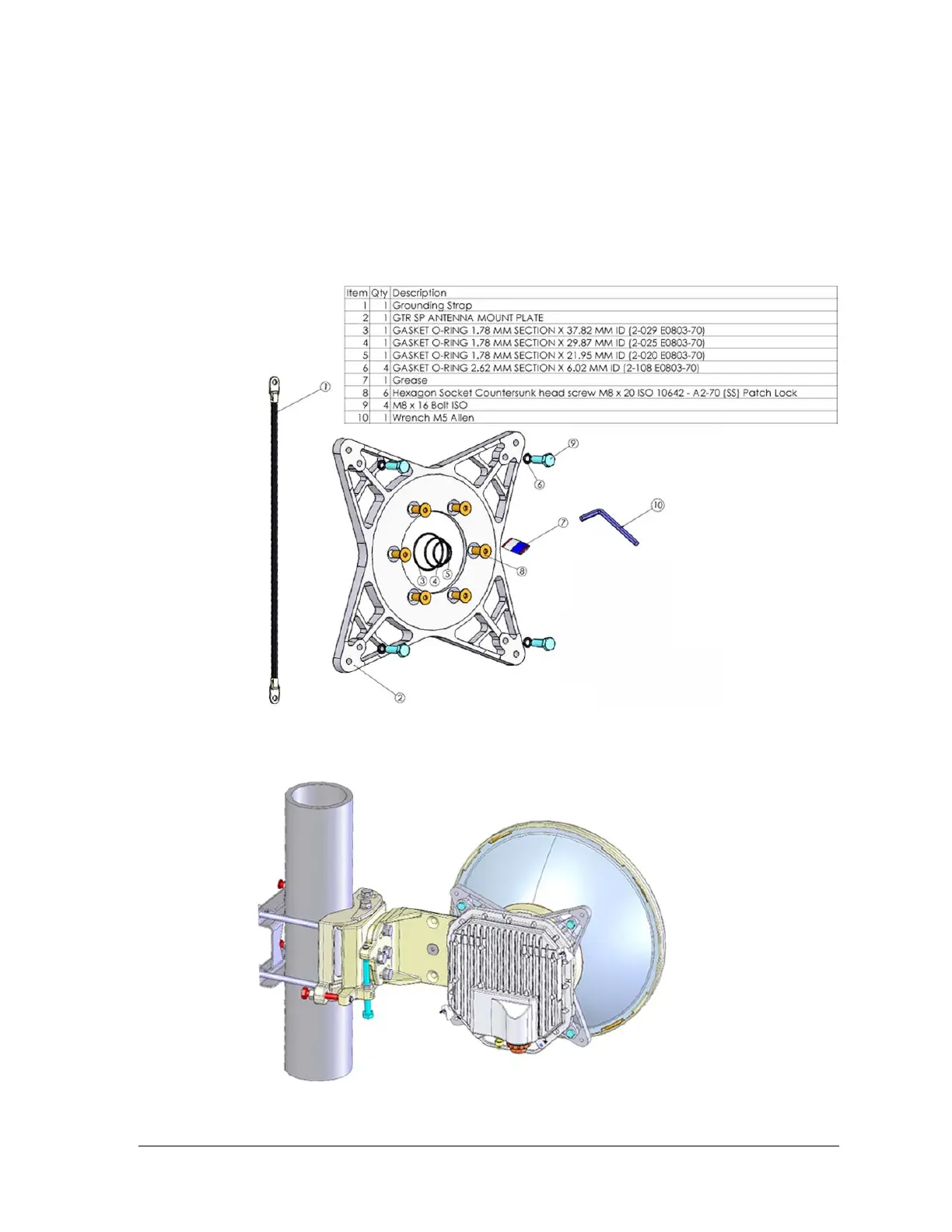

Figure 3-1. ODUspe Mounting Assembly Kit
Figure 3-2 shows an ODUspe fitted to its antenna.
Figure 3-2. ODU fitted to Andrew Mounting Collar
