Avitec Sequoia 4K60 - Appendix D Serial Port Pin out

107
Appendix D Serial Port Pin Out
There are two screwless 3-pin terminal blocks on the rear panel of Sequoia 4K60 for using third-party
controller to transmit Avitech proprietary commands to control the Sequoia 4K60.
 Terminal block (1) indicate the left screwless 3-pin terminal block on the rear panel of Sequoia 4K60.
 Terminal block (2) indicate the right screwless 3-pin terminal block on the rear panel of Sequoia
4K60.
Diagram

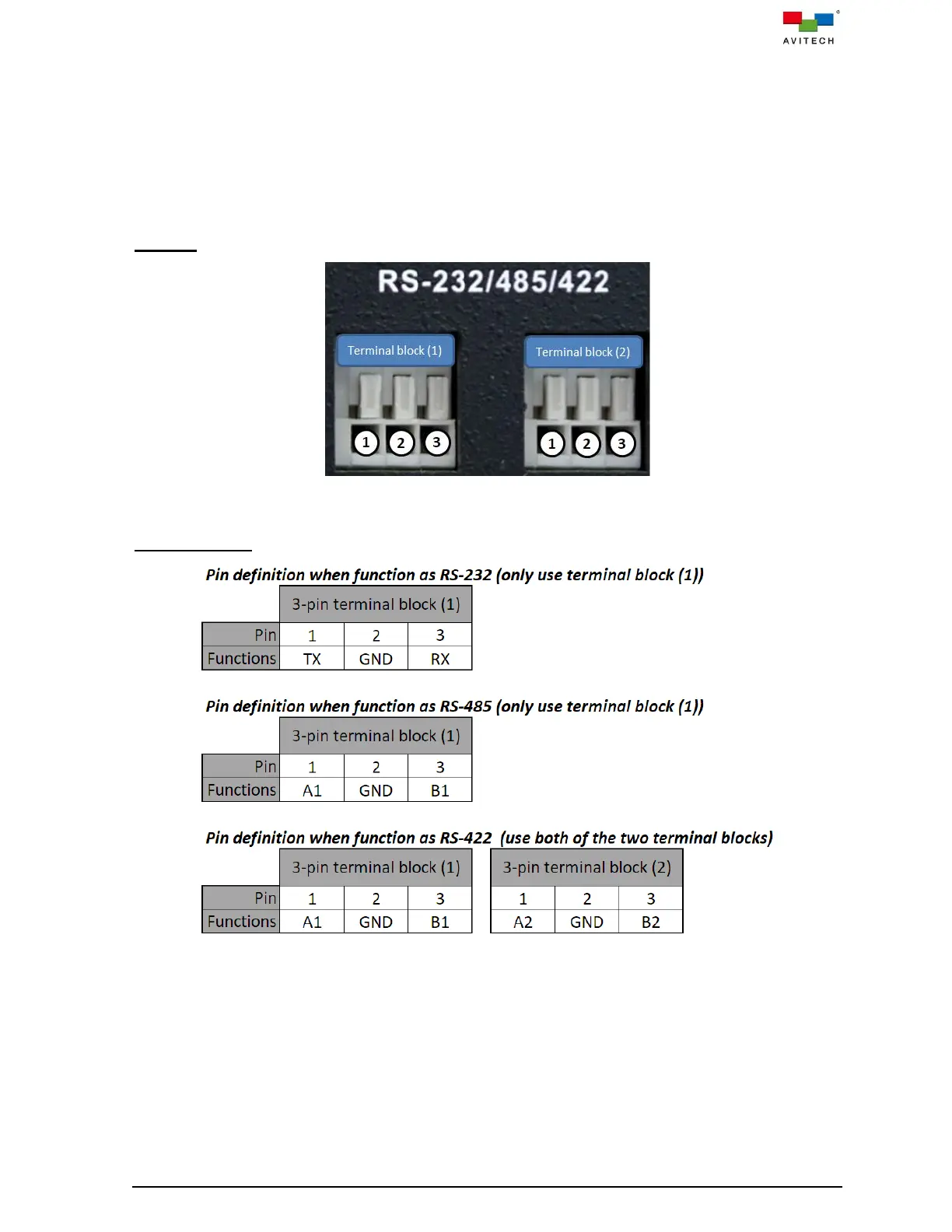

Figure D.1 Screwless 3-Pin Terminal Blocks
Pin Assignment
Figure D.2 RS-232/485/422 Pin Assignment
