2. System Configuration
The Sequoia 4K60 features automatic sensing of input signals with “NO VIDEO” alarm, automatic
detection and selection of optimum display resolution, and auto configuration of multiple user
workstations with USB connections. Each USB port can be used to create a user workstation
corresponding to the HDMI outputs with the matching and subsequent port numbers. For example, the
mouse for workstation one with HDMI OUT port 1 and 2 must be connected to USB port 1, and the
mouse for workstation two with HDMI OUT port 3 and 4 must be connected to USB port 3. To control
your Sequoia 4K60 directly, connect one or more keyboard and mouse sets to the USB Type-A ports
marked on both of its front and rear panels. The Sequoia 4K60 supports five different display
modes can meet various operating requirement. This chapter discusses the connections for different
display modes (except Display Mode: Video wall, please refer to section (5.1) “Video Wall
Configuration” for more details). For setting up display mode configuration of Sequoia 4K60, please
refer to section (4.4.3) “Configuration” for more details.
2.1 Display Mode: Workstation (Default)
2.1.1 Example 1: Four Operators at Four Independent Workstations
The following figure shows a typical setup with a single Sequoia 4K60 for four independent workstations
operation for controlling four computer systems.
DO NOT block the vents on the front and side panels of the Sequoia 4K60. Doing so may impair its internal
components and/or its heat dissipation.

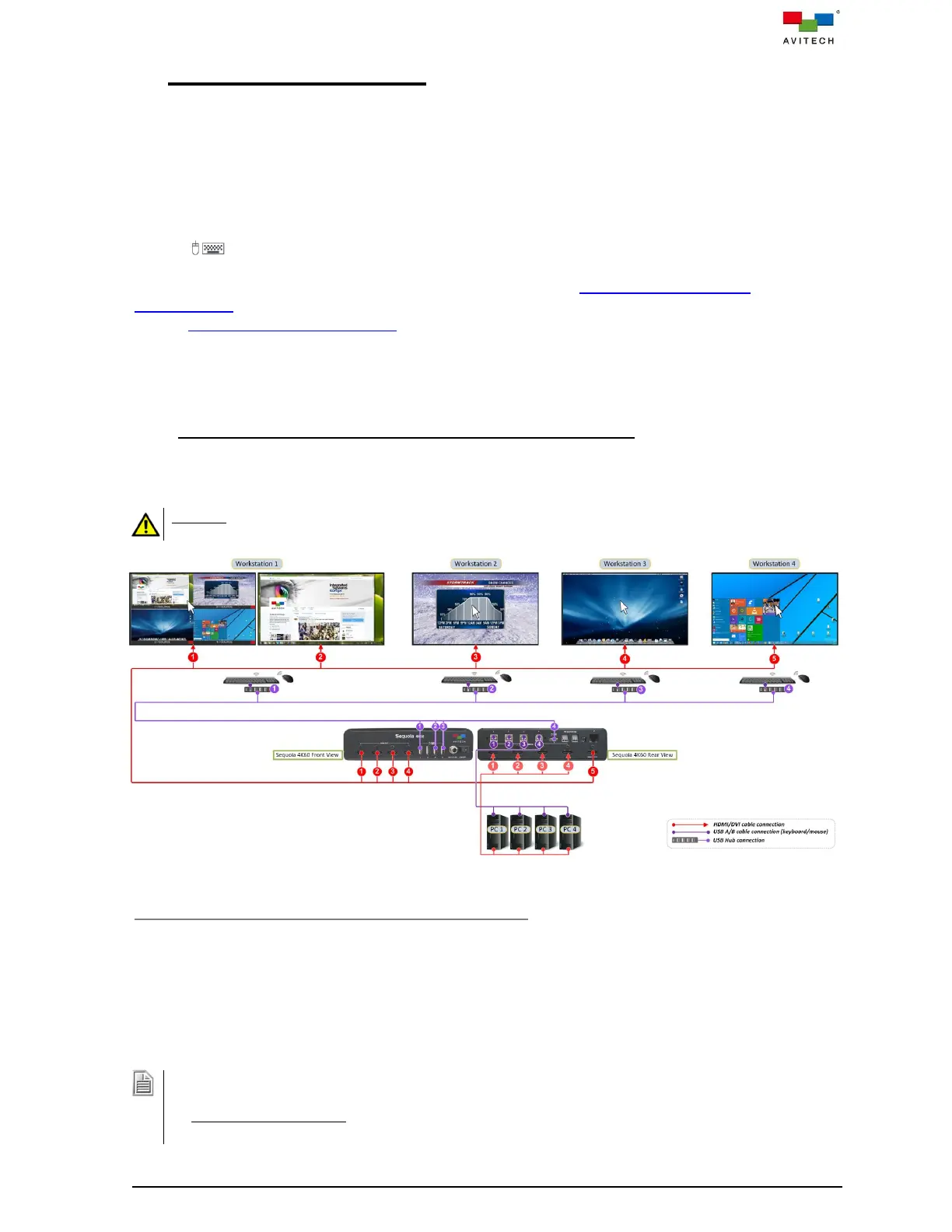

Figure 2.1.1.1 Four Workstations Connection Diagram
Four Computer Source Connections to Sequoia 4K60
Step 1. Connect the first computer’s display output to the port marked HDMI IN 1 on the rear panel of
the Sequoia 4K60. Repeat this step for other three computers to the ports marked HDMI IN 2 –
4 of the Sequoia 4K60.
Step 2. Connect a USB A/B cable to the first computer’s USB Type-A port, and connect the other end to
the USB Type-B port marked 1 on the rear panel of the Sequoia 4K60. Repeat this step for all
source computers to the USB Type-B ports marked 2 – 4.
1. Be sure to connect the first computer to the USB Type-B port marked 1, the second computer to USB
Type-B port marked 2, and so forth.
2. (For Windows 2000 users) Upon connecting your Sequoia 4K60 to a computer through the USB interface
for the first time, perform the Windows' on-screen steps to initialize the USB connection.
