Step 4. Reboot Sequoia 4K60 when the prompt appears onscreen to complete the process of restoring

the system setting.

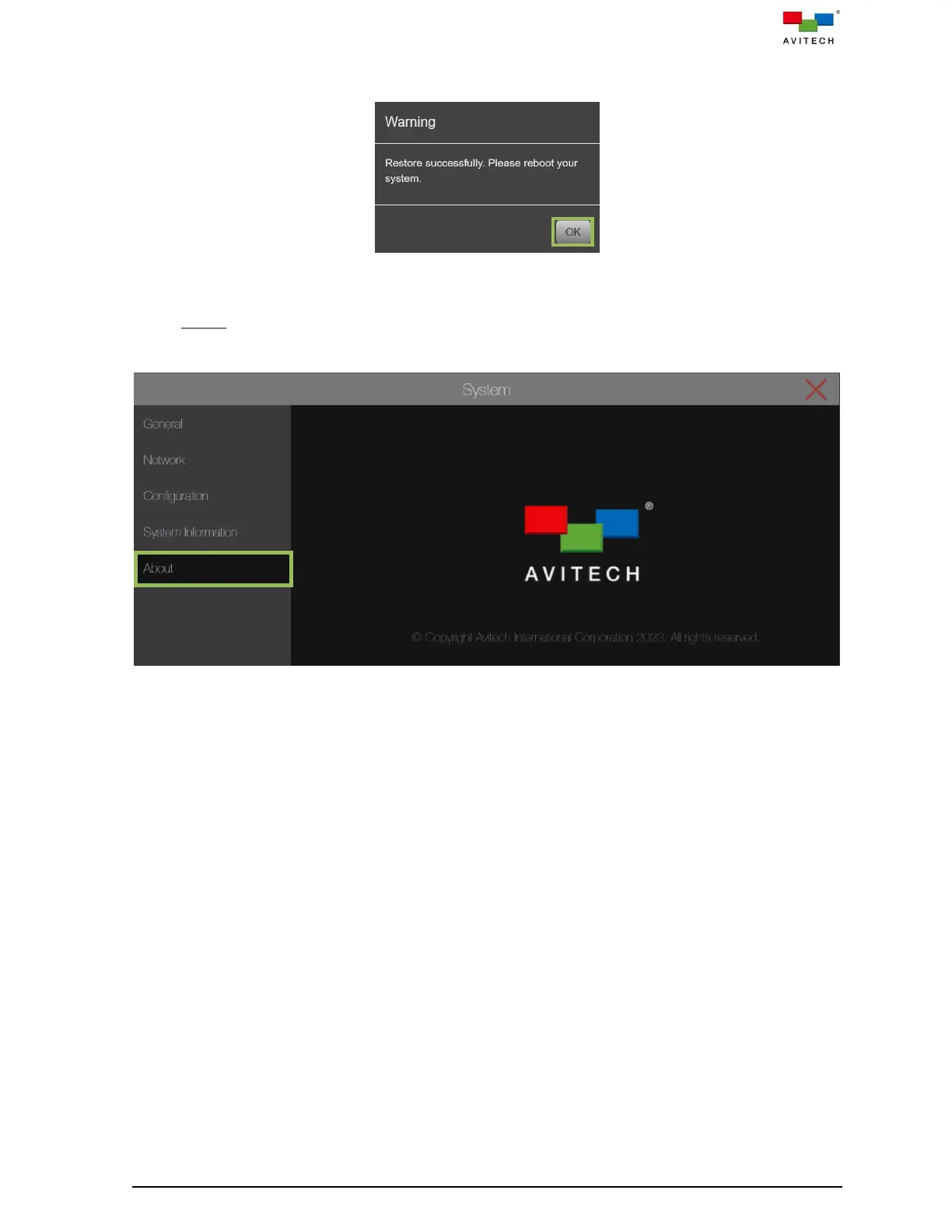

Figure 4.3.4.22 Reboot to Complete the Restore Process

4.3.5 About

Click About to view the web browser-based GUI copyright page.

Figure 4.3.5.1 System → About
