Basler GigE SERIES User Manual

Image Acquisition Control AW00089317000
104 Basler ace GigE
7.4.3.2 Exposure Modes
If you are triggering the start of frame acquisition with an externally generated frame start trigger
(ExFSTrig) signal, two exposure modes are available: timed and trigger width.
Timed Exposure
Mode
When timed mode is selected, the exposure time for each frame acquisition is determined by the
value of the camera’s Exposure Time Abs parameter. If the camera is set for rising edge triggering,
the exposure time starts when the ExFSTrig signal rises. If the camera is set for falling edge
triggering, the exposure time starts when the ExFSTrig signal falls. Figure 52 illustrates timed
exposure with the camera set for rising edge triggering.
Note that, if you attempt to trigger a new exposure start while the previous exposure is still in
progress, the trigger signal will be ignored, and a Frame Start Overtrigger event will be generated.
This situation is illustrated in Figure 53 for rising edge triggering.
For more information about
 the Frame Start Overtrigger event, see Section 10.15 on page 295.
 the camera’s Exposure Time Abs parameter, see Section 7.5 on page 109.

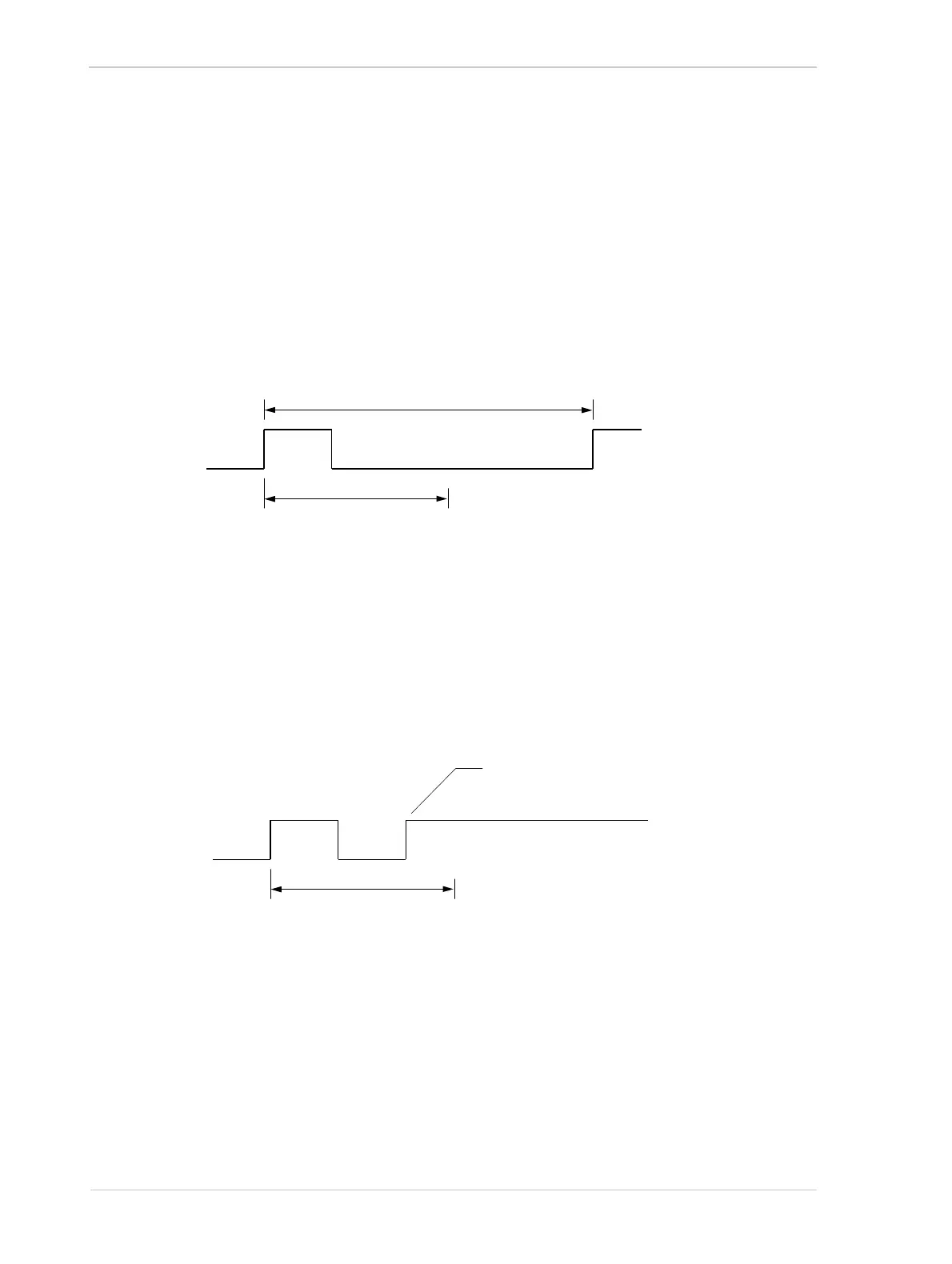

ExFSTrig Signal Period
Exposure
(duration determined by the
Exposure Time Abs parameter)
ExFSTrig Signal
Fig. 52: Timed Exposure with Rising Edge Triggering
This rise in the trigger signal will be
ignored, and a Frame Start Overtrigger
event will be generated
Exposure
(duration determined by the
Exposure Time Abs parameter)
ExFSTrig Signal
Fig. 53: Overtriggering with Timed Exposure

Basler GigE SERIES Specifications

General

Interface	GigE
Lens Mount	C-Mount, CS-Mount
Sensor	CMOS
Mount	C-mount, CS-mount
Power Supply	Power over Ethernet (PoE)
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	Varies by model
