Basler ace GigE 279
Only the pixel data from the area of overlap between the Auto Function AOI defined by your settings
and the Image AOI will be used by the related auto function.
10.13.3.1 Assignment of an Auto Function to an Auto Function AOI
By default, the Gain Auto and the Exposure Auto auto functions are assigned to Auto Function AOI
1 and the Balance White Auto auto function is assigned to Auto Function AOI 2. The assignments
can, however, be set as desired. For example, the Balance White Auto auto function can be
assigned to Auto Function AOI 1 or all auto functions can be assigned to the same Auto Function
AOI.
One limitation must be borne in mind: For the purpose of making assignments, the Gain Auto and
the Exposure Auto auto functions are always considered as a single "Intensity" auto function and
therefore the assignment is always identical for both auto functions. For example, if you assign the
We strongly recommend not to assign an auto function to more than one Auto
Function AOI although the assignment can be made.
01
0
2345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Y
Row
Column
X Offset
Width
Auto
Function
Area of
Interest
Height
Area of
Interest

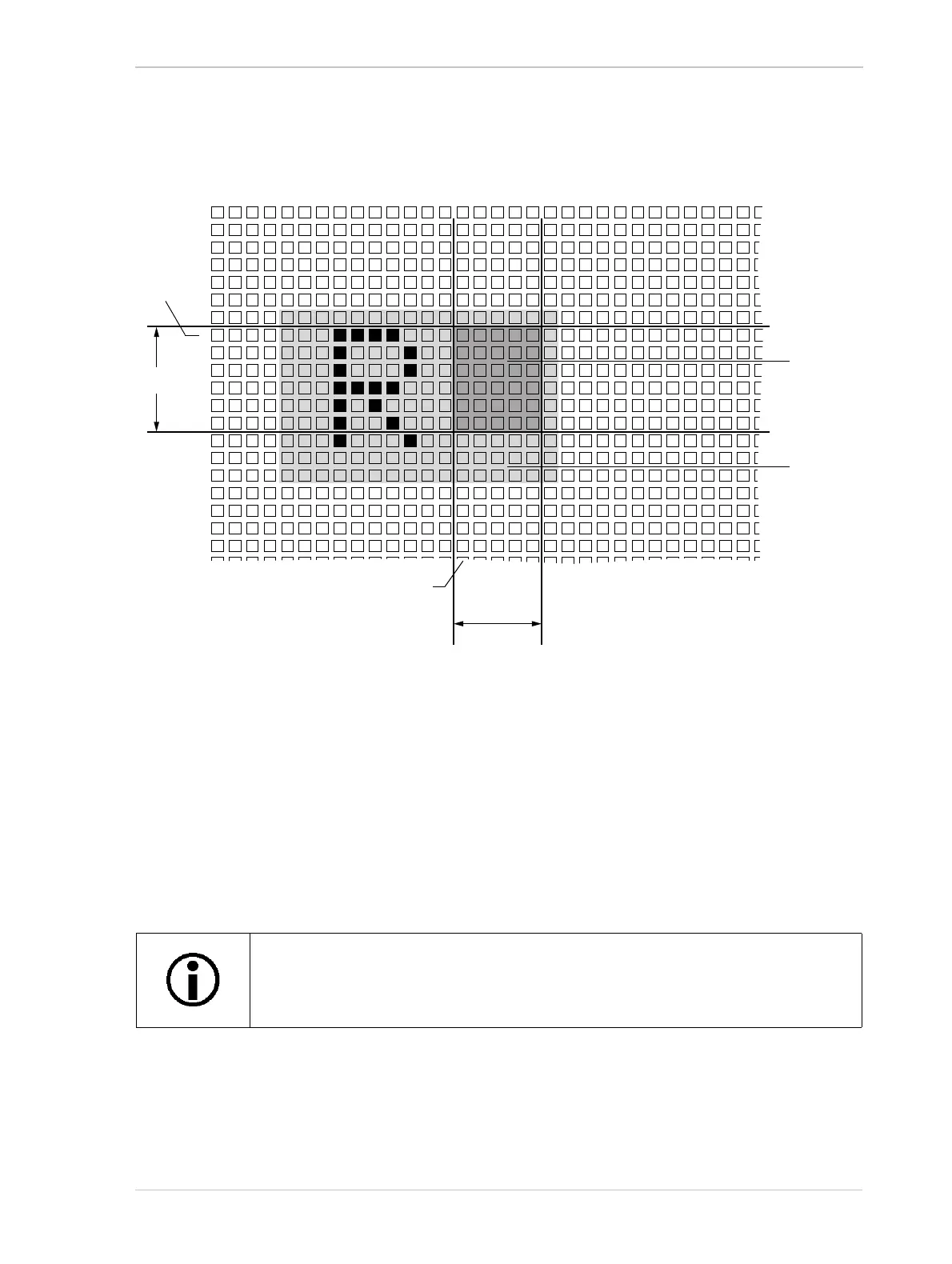

Fig. 117: Auto Function Area of Interest and Image Area of Interest
