1.4 Mechanical Specifications
The camera housing conforms to protection class IP30 assuming that the lens mount is covered by
a lens or by the protective plastic seal that is shipped with the camera.
1.4.1 Camera Dimensions and Mounting Points
The dimensions in millimeters for cameras equipped with a C-mount lens adapter are as shown in
Figure 25. The dimensions for cameras equipped with a CS-mount lens adapter are as shown in
Figure 26.
Camera housings are equipped with mounting holes on the bottom as shown in the drawings.

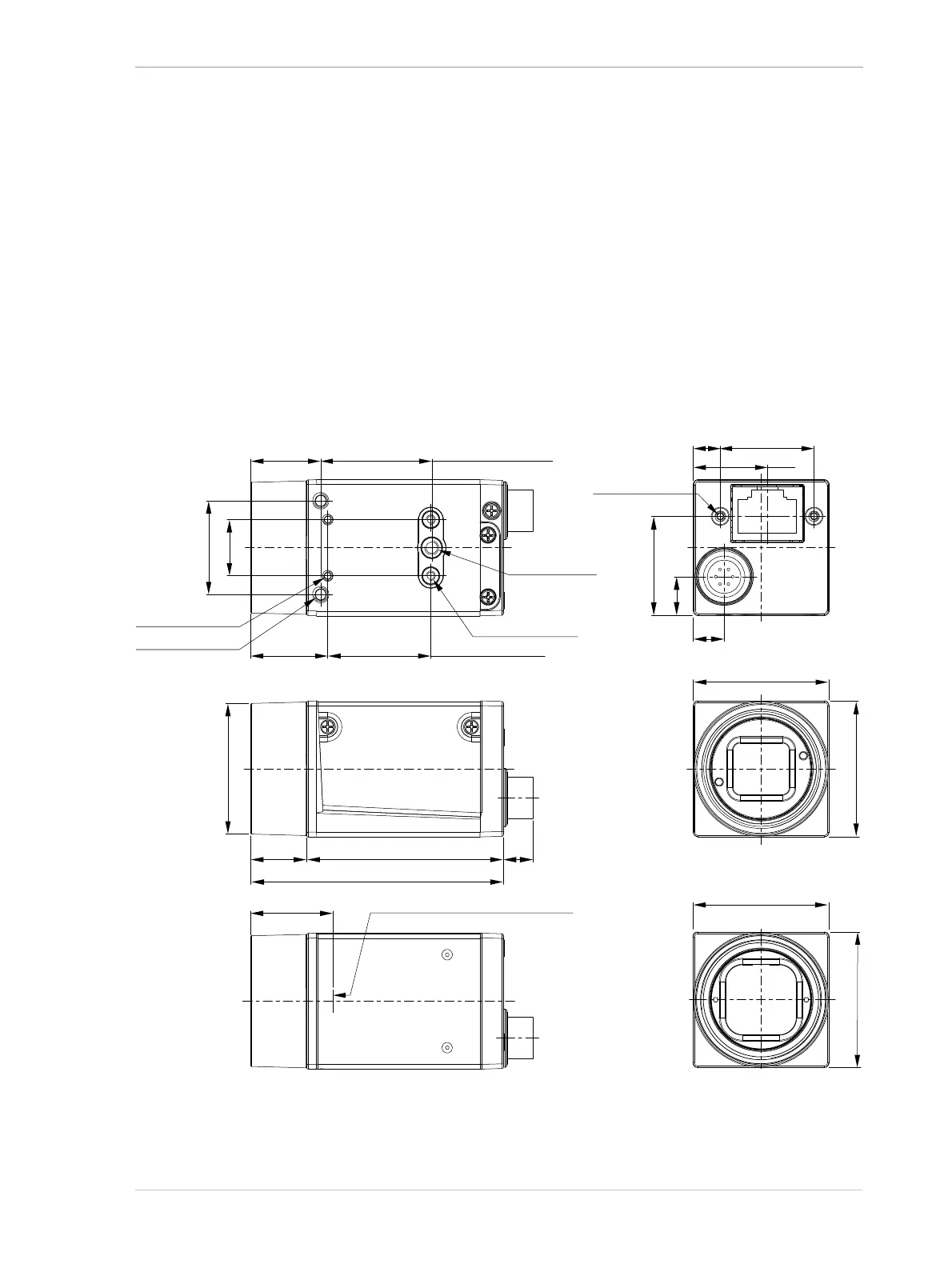

Fig. 25: Mechanical Dimensions (in mm) for Cameras with the C-mount Lens Adapter
15
23.7 (dimension for M3)
20
12
2x M2; 3 deep
2x M3; 3 deep
2x M2; 3 deep
22 (dimension for M2)
M3; 3 deep
16.5
Bottom
27.87
12
42
54
29
6.3
17.526
Top
Photosensitive surface of the sensor
5.77
20
15.77
21.2
8.3
6.6
29
2x M2; 4 deep
29
29
Not to Scale
All models
except
acA2000-50,
acA2040-25
acA2000-50,
acA2040-25
models

Basler GigE SERIES Specifications

General

Interface	GigE
Lens Mount	C-Mount, CS-Mount
Sensor	CMOS
Mount	C-mount, CS-mount
Power Supply	Power over Ethernet (PoE)
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	Varies by model
