Basler GigE SERIES User Manual

Color Creation and Enhancement AW00089317000
168 Basler ace GigE
8.2 Color Creation on the acA750-30gc
The sensor used in this camera is equipped with a complementary plus green color separation filter.
The colors in the filter are cyan, magenta, yellow, and green (CMYeG). Each individual pixel is
covered by a portion of the filter that allows light of only one color to strike the pixel. The filter has
a repeating pattern as shown in Figure 87.
Because there is only one vertical shift register for every two pixels in the camera’s sensor, when a
field is acquired, the colors from two pixels will be combined into a single "binned" pixel. As shown
in Figure 88, when the camera acquires field 0, it will obtain the following color combinations for any
group of four "binned" pixels:
Green + Cyan
Magenta + Cyan
Magenta + Yellow
Green + Yellow
Sensor
Pixels
G M
CYe
M G
CYe
G M
CYe
M G
CYe
G M
CYe
M G
CYe
G M
CYe
M G
CYe
G M
CYe
M G
CYe
G M
CYe
M G
CYe
G M
CYe
M G
CYe
G M
CYe
M G
CYe

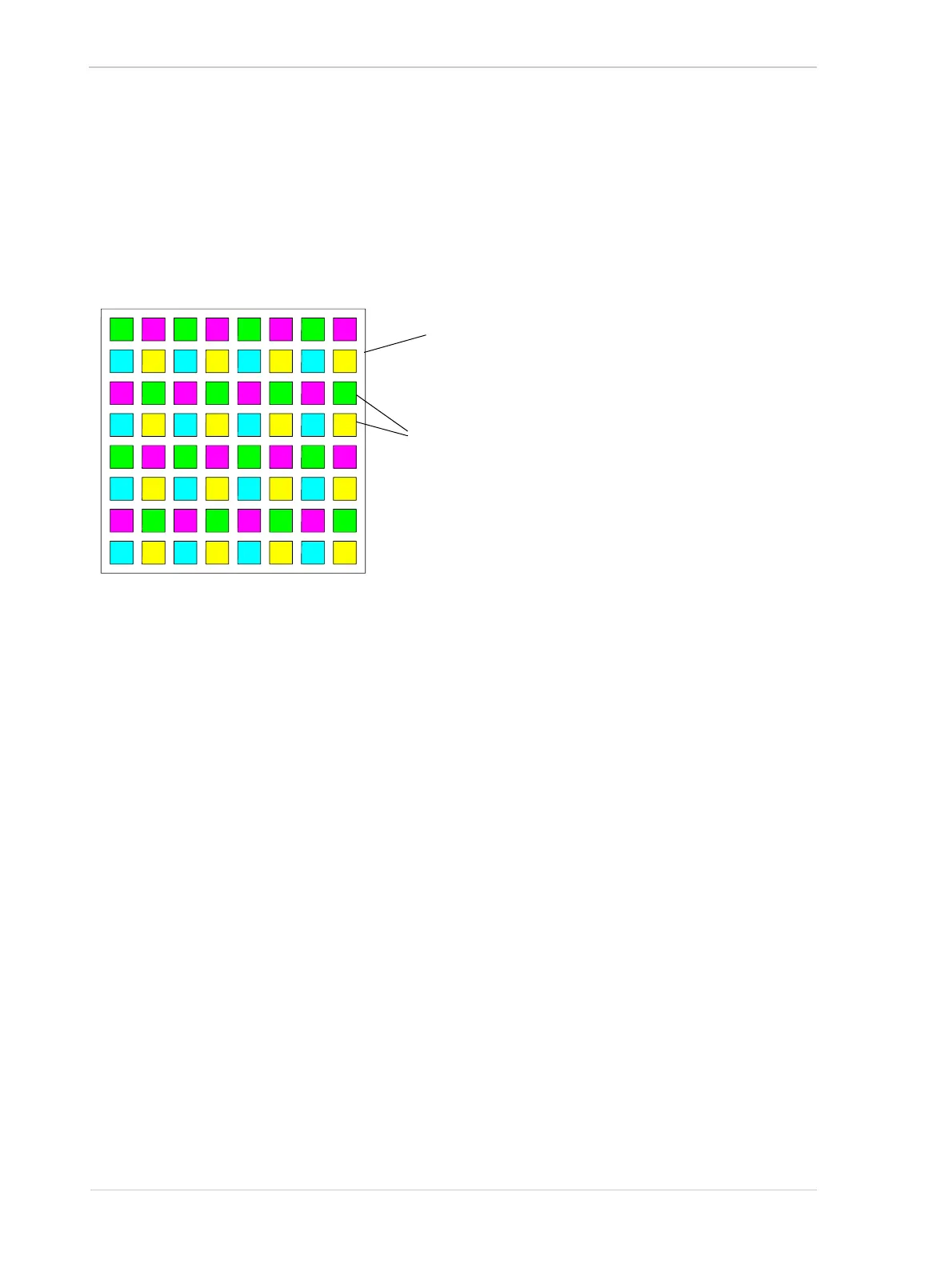

Fig. 87: Complementary Color Filter Pattern

Basler GigE SERIES Specifications

General

Interface	GigE
Lens Mount	C-Mount, CS-Mount
Sensor	CMOS
Mount	C-mount, CS-mount
Power Supply	Power over Ethernet (PoE)
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	Varies by model
