5 Physical Interface
This chapter provides detailed information, such as pinouts and voltage requirements, for the
physical interface on the camera. This information will be especially useful during your initial
design-in process.
5.1 General Description of the
Camera Connections
The camera is interfaced to external circuitry via connectors located on the back of the housing:
6-pin Connector 8-pin RJ-45 Jack
 Power supply (if PoE is not used)
 Access to I/O lines
 100/1000 Mbit/s Ethernet connection to the camera
 Power over Ethernet (PoE),
(if power is not supplied via 6-pin connector
8-pin
RJ-45
Jack
6-pin
Receptacle

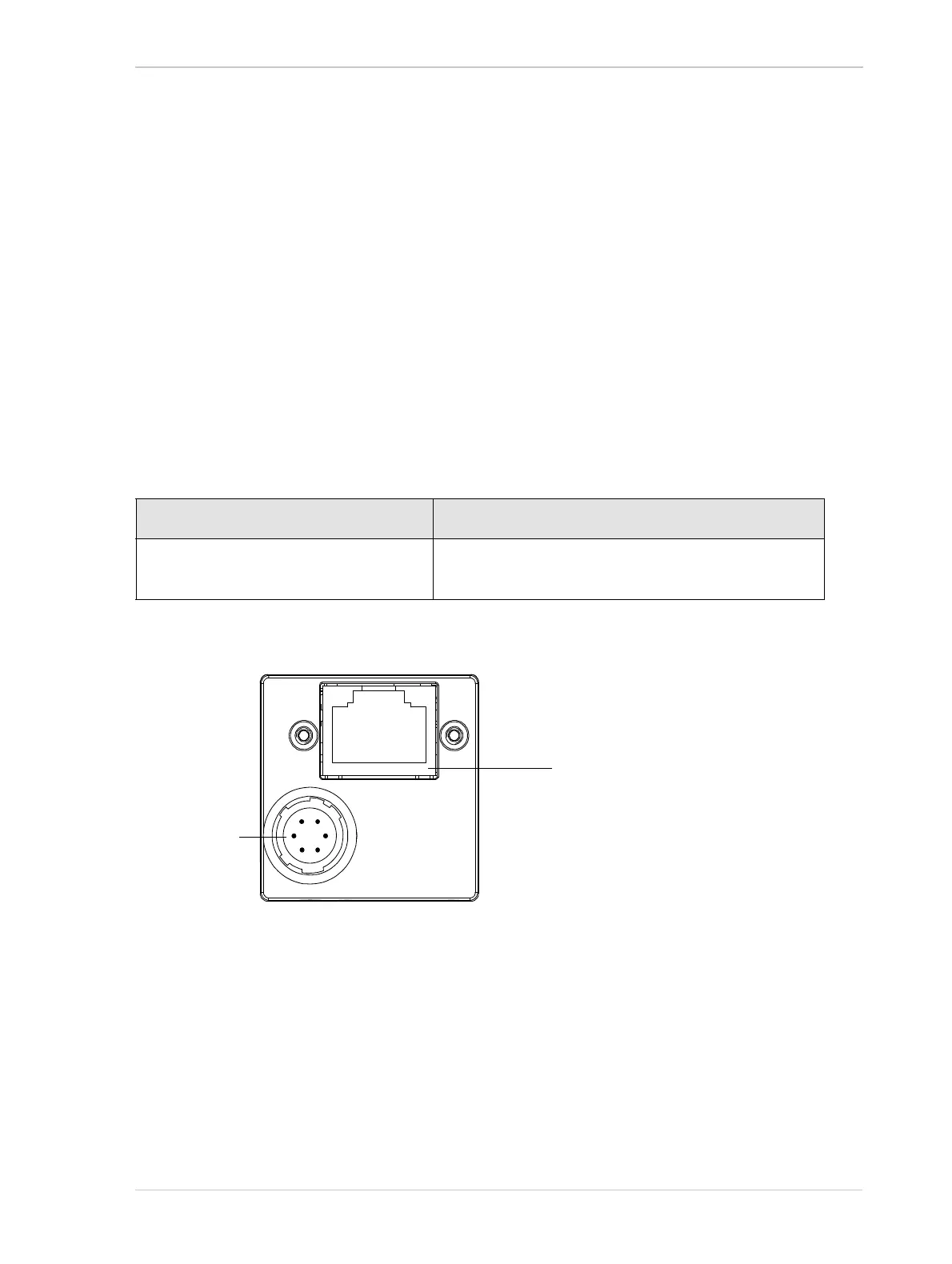

Fig. 36: Camera Connectors
