AW00089317000 Image Acquisition Control
Basler ace GigE 123
The cameras can provide an exposure active output signal that will go high when the exposure time
for line one begins and will go low when the exposure time for line one ends.
When the camera is operating with the rolling shutter in the global reset release mode, the use of
flash lighting is most strongly recommended. The camera supplies a flash window output signal
to facilitate the use of flash lighting.
For calculating the ... Formula Notes
Total Readout Time [ tRow x (AOI Height) ] + C
TRT
µs C
TRT
= Constant for total
readout time. See
Table 18.
Total runtime Exposure Time Abs Parameter Setting + Total Readout
Time
-
Table 19: Formulas for Calculating the Runtime and Readout Time (Global Reset Release Mode)
Line 1
Line 2
Line 4
Line 3
Line 5
Line 6
Line 8
Line 7
Line 9
Line 10
Line 11
Line N-2
Line N
Line N-1
Total Readout Time
tRow
Total Runtime
= line exposure time
= line readout time
Frame Start
Triggered

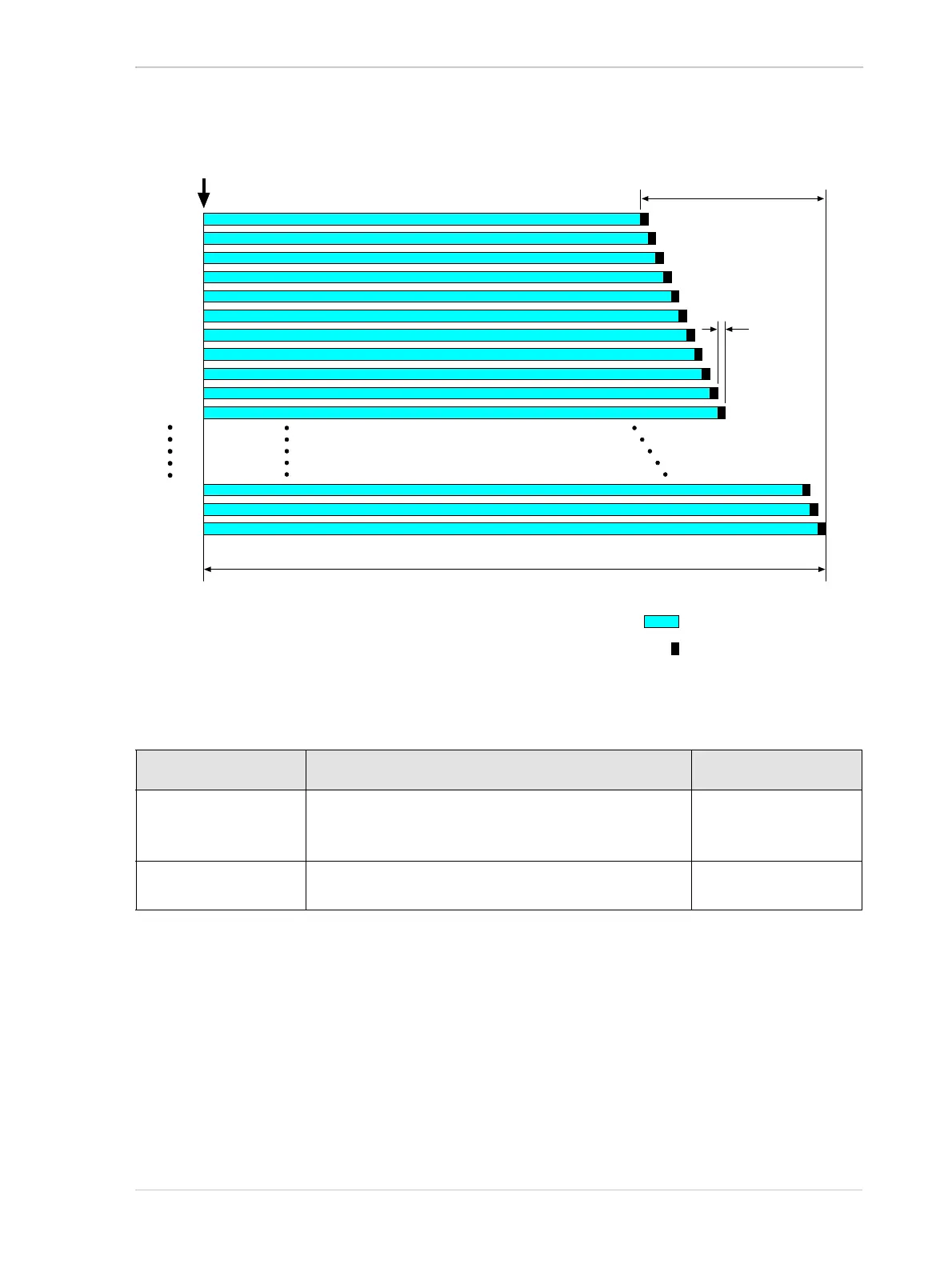

Fig. 63: Rolling Shutter in the Global Reset Release Mode
