For more information about event reporting, see Section 10.15 on page 295.
The acquisition trigger wait signal will only be available when hardware
acquisition start triggering is enabled.
Time
= Camera is in a "waiting for
acquisition start trigger" status
Acq. Trigger
Wait Signal
Frame Acquisition
Exp. Readout
Frame Acquisition
Exp. Readout
Frame Acquisition
Exp. Readout
Frame Acquisition
Exp. Readout
Frame Acquisition
Exp. Readout
Frame Acquisition
Exp. Readout
ExASTrig
Signal

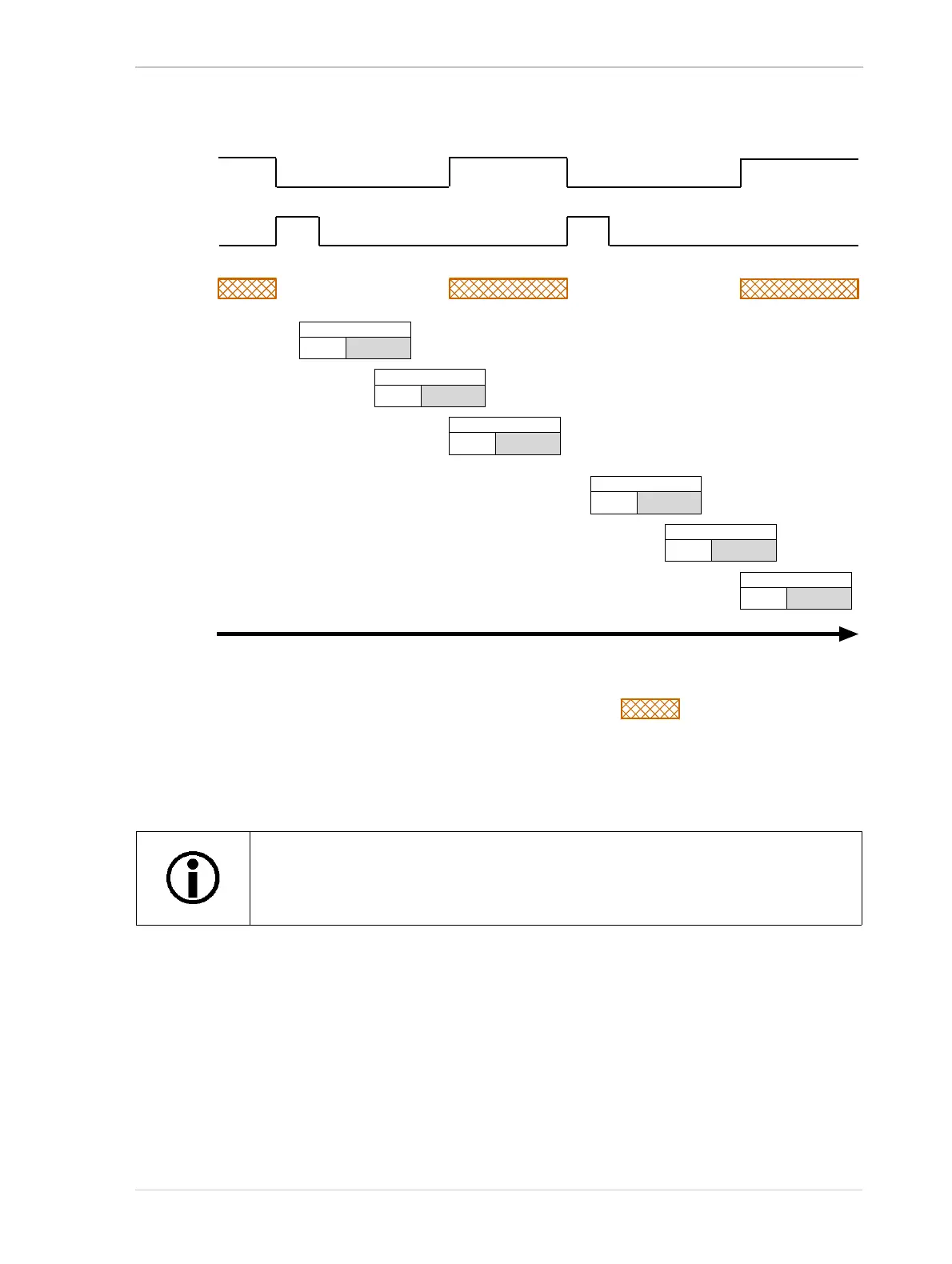

Fig. 76: Acquisition Trigger Wait Signal

Basler GigE SERIES Specifications

General

Interface	GigE
Lens Mount	C-Mount, CS-Mount
Sensor	CMOS
Mount	C-mount, CS-mount
Power Supply	Power over Ethernet (PoE)
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	Varies by model
