Basler GigE SERIES User Manual

AW00089317000 Standard Features
Basler ace GigE 243
Another sequence set cycle has started.
 After frame exposure and readout are completed, the sequencer feature is disabled. The
cycling through sequence sets is terminated. The sequencer parameter values in the active set
return to the values that existed before the sequencer feature was enabled.

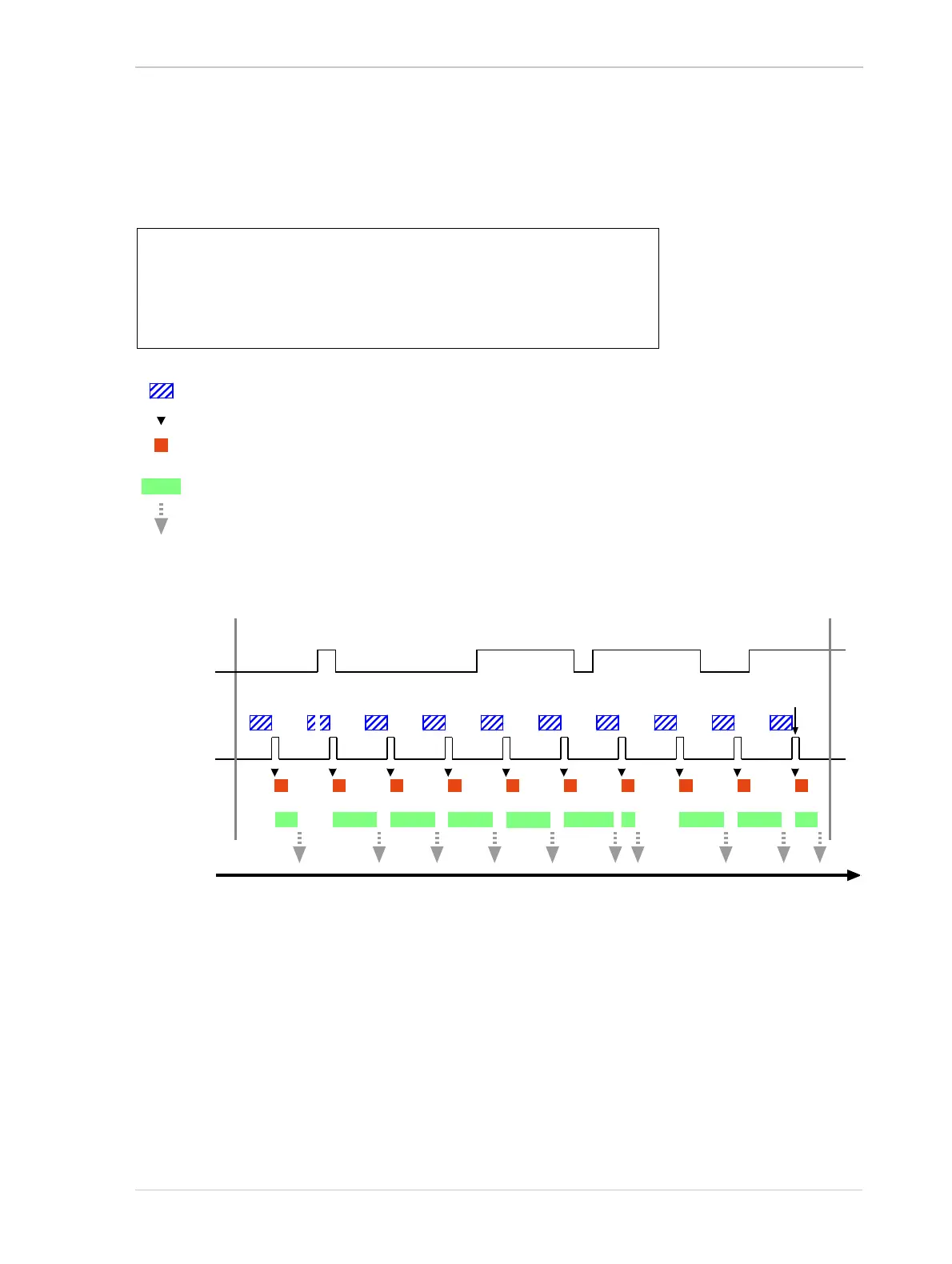

Fig. 100: Sequencer in Controlled Sequence Advance Mode with Line 1 as the Sequence Control Source
0
0 1 1 1
2
3 4 5 5 0
Time
Frame Start
Trigger Signal
Sequencer
Enabled
Sequence Set Cycle
Starts Again
Sequencer
Disabled
Use Case: Operation in controlled sequence advance mode with Line 1 as the
sequence control source:
Cycling through the sequence set cycles according to the states of input
line 1 (not set for invert). Enabling and disabling of the sequencer feature.
Setting: Sequence Set Total Number = 6
Signal Applied
to Input Line 1
(Advance)
= frame exposure and readout
= frame transmission
= camera is waiting for a frame start trigger
= camera selects a sequence set as the current sequence set
= current sequence set that is used for the image acquisition
(the sequence set index number is indicated)

Basler GigE SERIES Specifications

General

Interface	GigE
Lens Mount	C-Mount, CS-Mount
Sensor	CMOS
Mount	C-mount, CS-mount
Power Supply	Power over Ethernet (PoE)
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	Varies by model
