Combining Horizontal and Vertical Color Binning
You can combine vertical and horizontal color binning (see the example in Figure 107).
You can combine vertical and horizontal binning. This, however, may cause objects to appear
distorted in the image. For more information about possible image distortion due to combined
vertical and horizontal binning, see Section 10.9.3 on page 261.
Setting Binning
You can enable vertical color binning for the acA1920-25gc and acA2500-14gc color camera by
setting the Binning Vertical parameter. Setting the parameter’s value to 2, 3, or 4 enables vertical
color binning by 2, by 3, or by 4, respectively. Setting the parameter’s value to 1 disables vertical
color binning.
You can enable horizontal color binning for the acA1920-25gc and acA2500-14gc color camera
by setting the Binning Horizontal parameter. Setting the parameter’s value to 2, 3, or 4 enables
horizontal color binning by 2, by 3, or by 4, respectively. Setting the parameter’s value to 1 disables
horizontal color binning.
You can set the Binning Vertical or the Binning Horizontal parameter value from within your
application software by using the Basler pylon API. The following code snippet illustrates using the
API to set the parameter values:
// Enable vertical binning by 2
Camera.BinningVertical.SetValue( 2 );
// Enable horizontal binning by 4
Camera.BinningHorizontal.SetValue( 4 );
// Disable vertical and horizontal binning
Camera.BinningVertical.SetValue( 1 );
Camera.BinningHorizontal.SetValue( 1 );
You can also use the Basler pylon Viewer application to easily set the parameters.

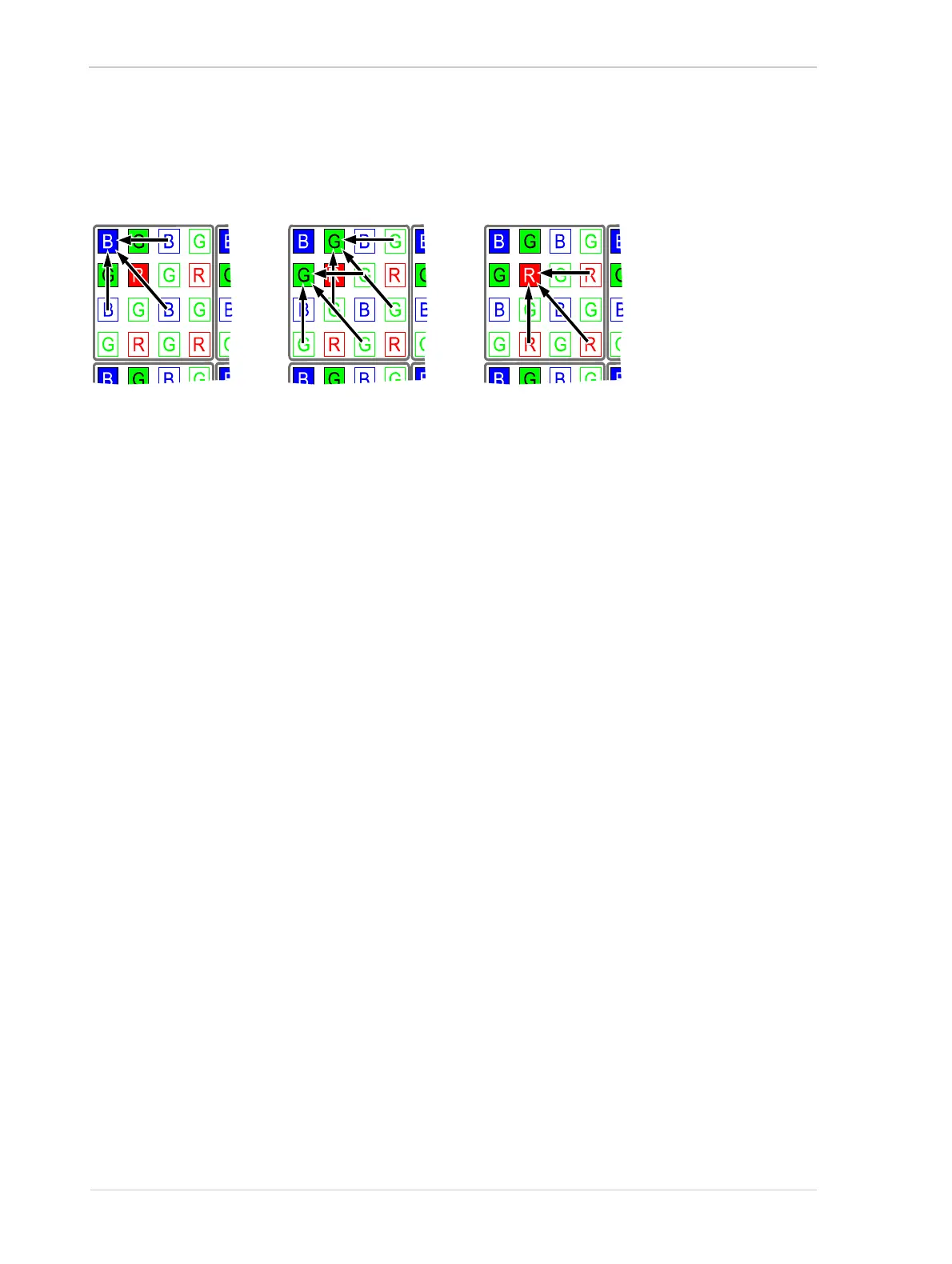

Fig. 107: Combining Vertical and Horizontal Color Binning
Example: Horizontal and Vertical Color Binning by 2
