Using AOIs with Reverse X
You can use the AOI feature when using the reverse X feature. Note, however, that the position of
an AOI relative to the sensor remains the same regardless of whether or not the reverse X feature
is enabled.
As a consequence, an AOI will display different images depending on whether or not the reverse X
feature is enabled.
For more information about auto functions, see Section 10.13 on page 276.
For color cameras, provisions are made ensuring that the effective color filter
alignment will be constant for both, normal and mirror images.
AOIs used for the auto function feature will behave analogously to "standard"
AOIs:
When reverse X is used, the position of the auto function AOIs relative to the
sensor remains the same. As a consequence, each auto function AOI will include
a different portion of the captured image depending on whether or not the reverse
X feature is enabled.
As a consequence, each auto function AOI will include a different portion of the
captured image depending on whether or not the reverse X feature is enabled.

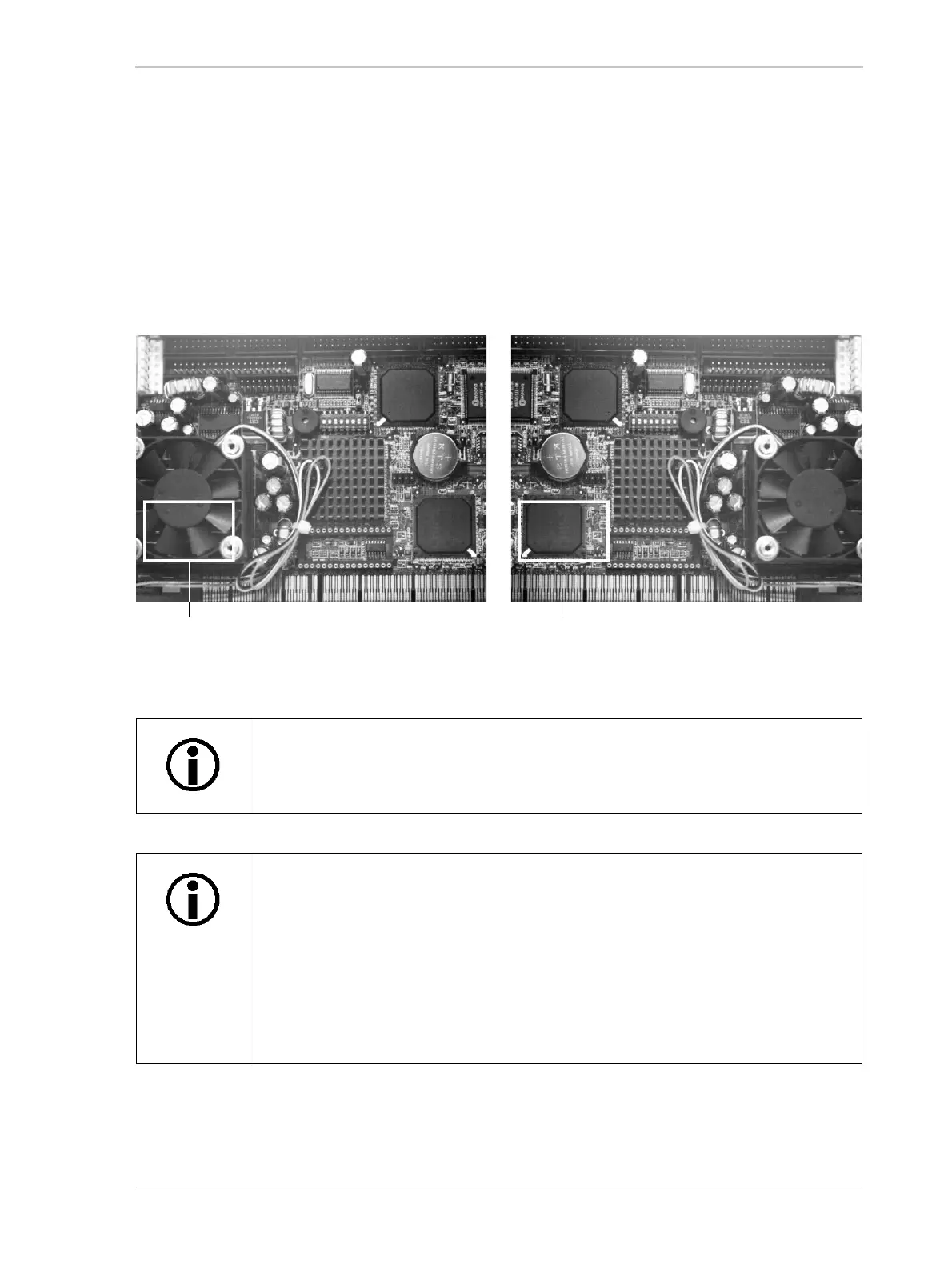

Fig. 112: Using an AOI with Reverse X Mirror Imaging
Normal Image Mirror Image
AOI
AOI
