Camera Interface
2-12
BASLER L304
kc
Draf
t

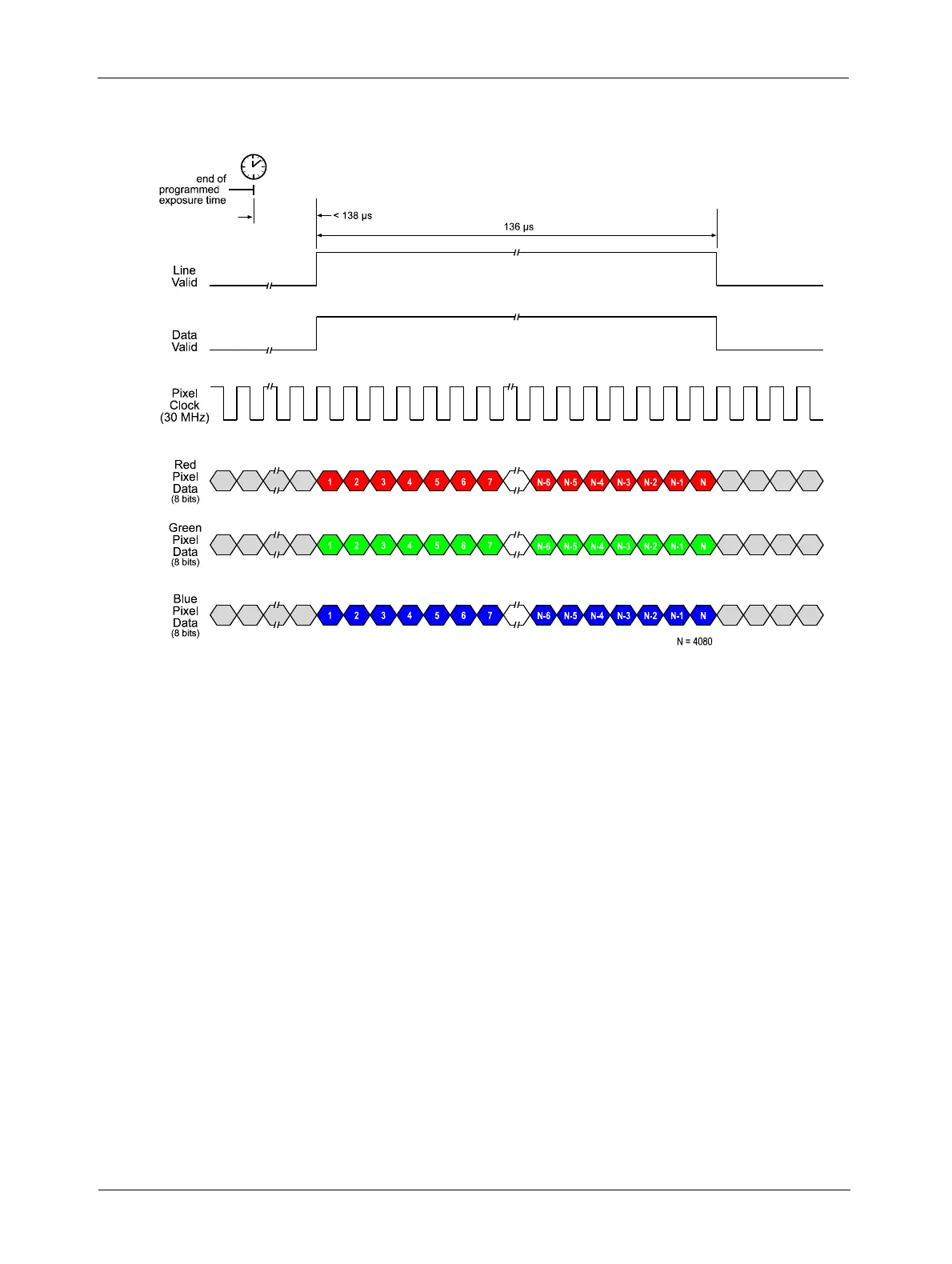

Figure 2-5: 3 T
ap 8 Bit Output Mode with Program
mable Exposure
When the AOI and S
tamp features are used
, N coul
d be more or less than 4080
(see Sections
3.7
and
3.8
).
The pixel data transmitted out of the camera is affect
ed by the spatial correction settings (see Section
3.5
).
T
iming diagrams are not to scale.
27
29
