Basler L304kc User Manual

Camera Interface
2-14 BASLER L304kc
Draft
Figure 2-6 shows the data sequence when the camera is operating in edge-controlled or level-
controlled exposure mode and Figure 2-7 shows the data sequence when the camera is operating
in programmable exposure mode.

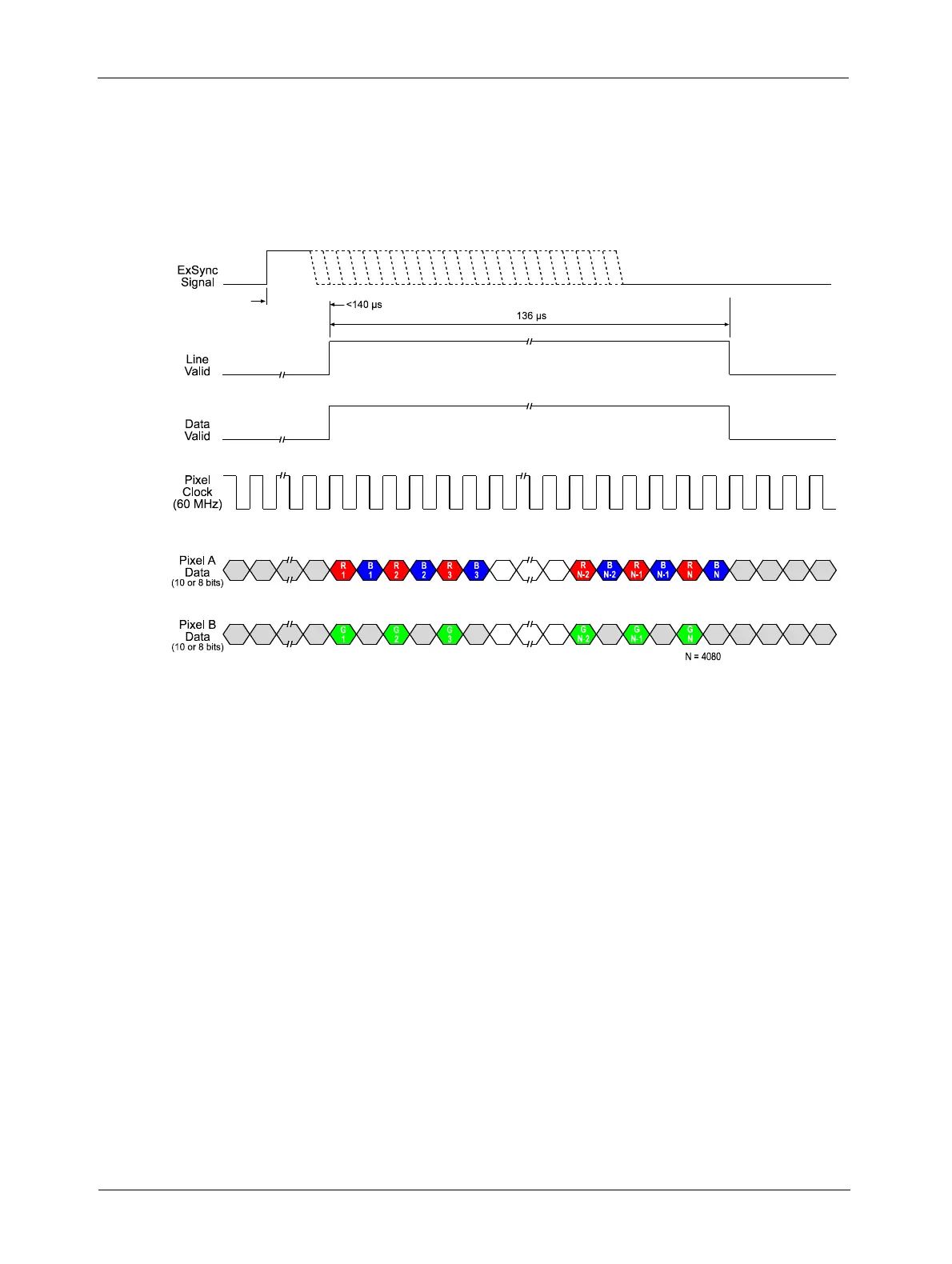

Figure 2-6: 2 Tap 10 Bit or 2 Tap 8 Bit Output Mode with Edge or Level-controlled Exposure
When the AOI and Stamp features are used, N could be more or less than 4080 (see Sections 3.7 and 3.8).
The pixel data transmitted out of the camera is affected by the spatial correction settings (see Section 3.5.
Timing diagrams are not to scale.
