Installing the Compounder
Operator Manual for the Baxter ExactaMix 2400 Compounder
Page 26 53007410 Rev. C

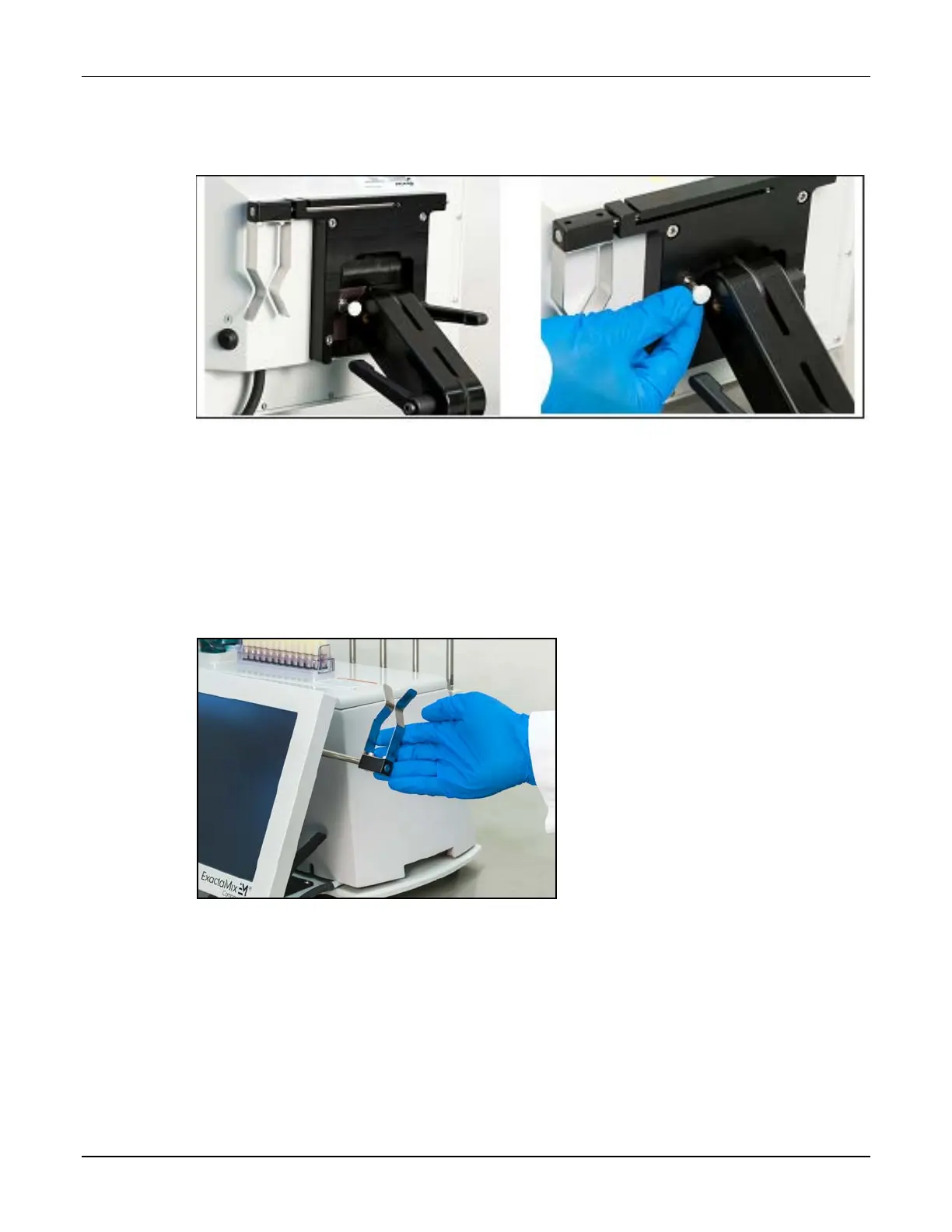

10. Install the display onto the arm.
The white locking pin snaps into the locked position.
Installing the display
NOTE: You can remove the display by pulling the locking pin out to the unlocked
position, then rotating the pin 90 degrees to keep it in this position while lifting the
display.
11. Install the barcode reader.
a. Pull the arm that is behind the display out to the right.
b. Rotate the arm up and over toward you.
c. Pull the arm slightly to the right to lock it into place.
Rotating the arm
