Installing the Compounder
Operator Manual for the Baxter ExactaMix 2400 Compounder
53007410 Rev. C Page 25
7. Retract the support legs so that the main module rests fully on the base plate.
8. Route the cables through the two routing holes, pushing any excess length of the cables
through the holes.

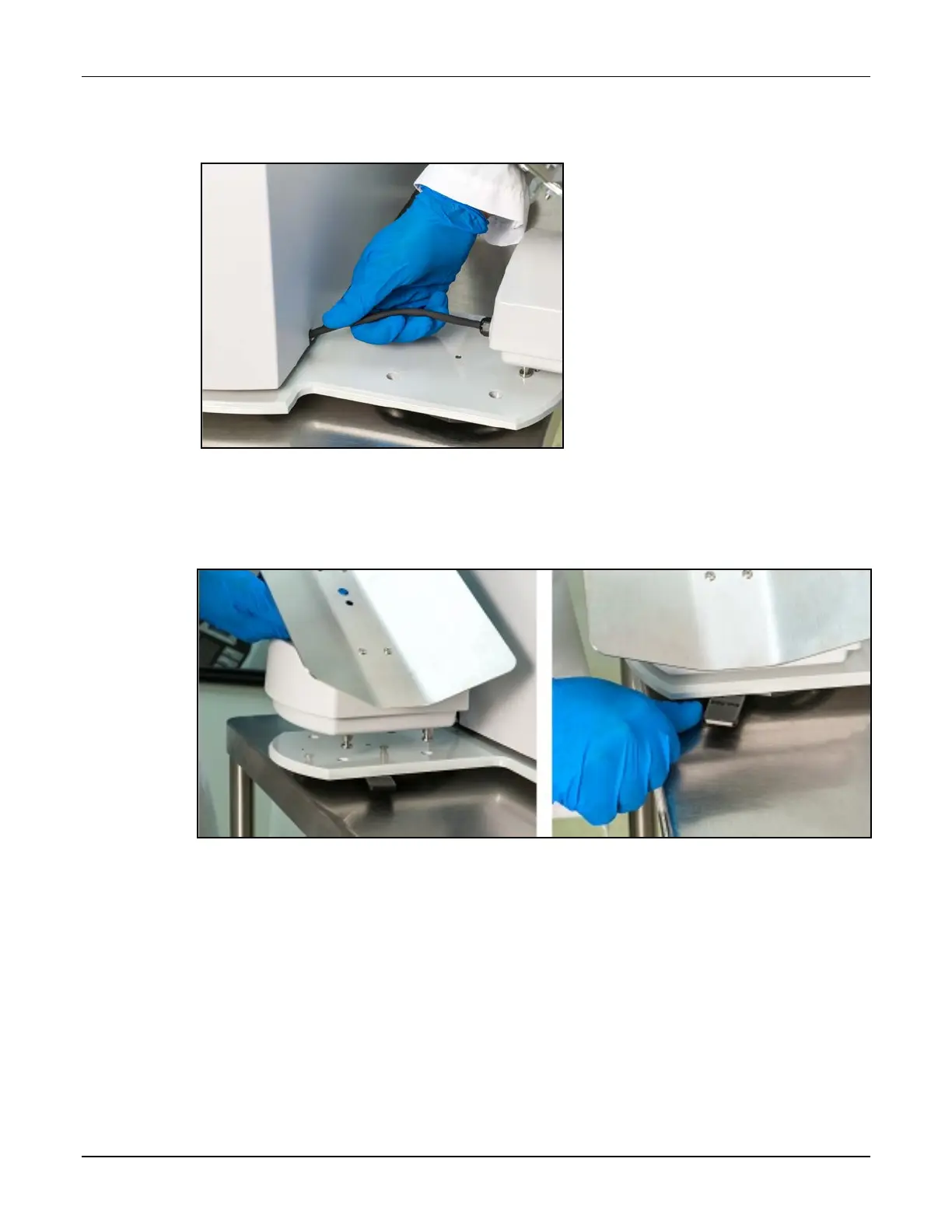

Routing a cable
9. Install the load cell.
a. Place the load cell onto the base plate.
b. To lock the load cell, move the black lever back until it clicks into place.
Installing the load cell
