Installing the Compounder
Operator Manual for the Baxter ExactaMix 2400 Compounder
53007410 Rev. C Page 29

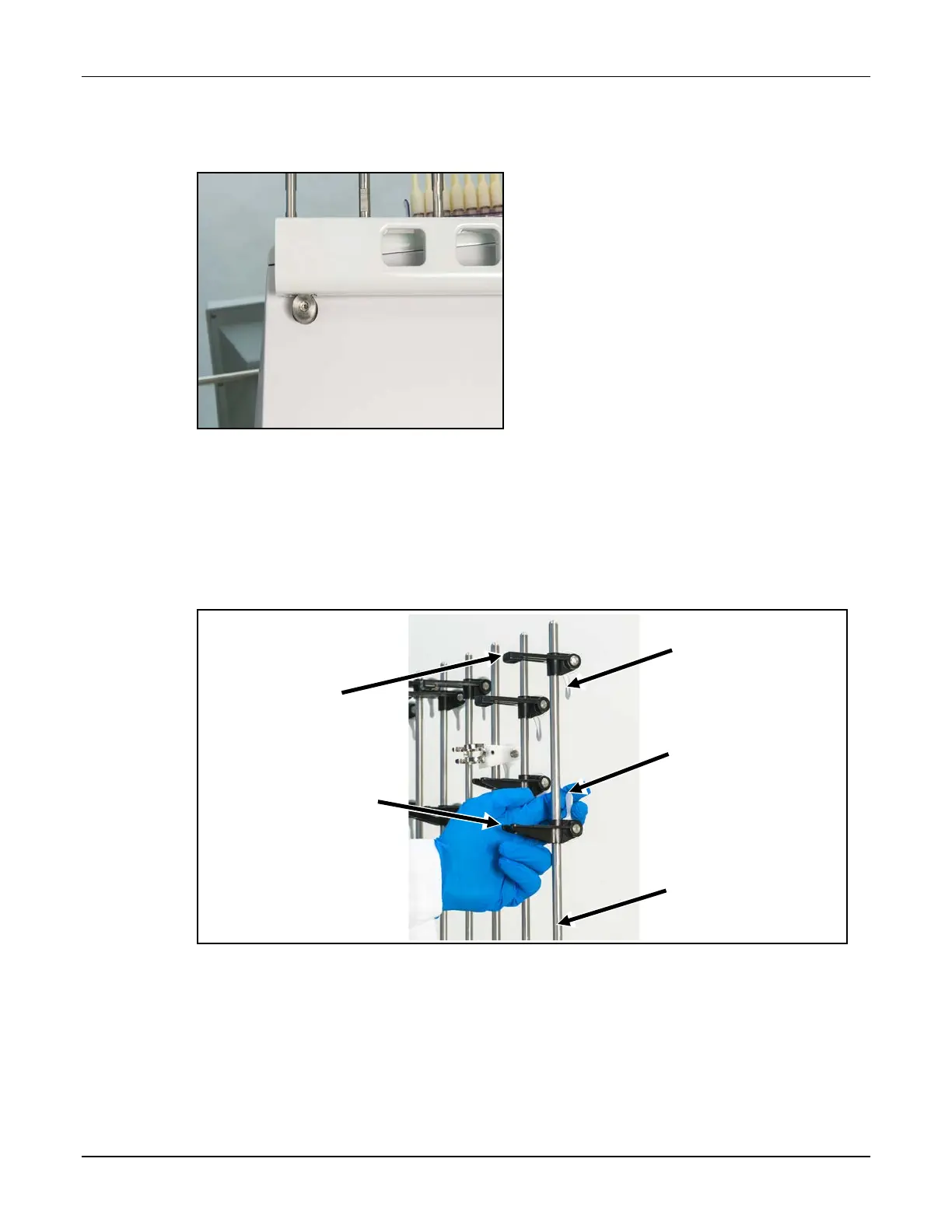

18. Install the vial rack onto the back of the main module. On each end, slide the slot on the
vial rack over the bolt on the main module.
Installing the vial rack
19. Install the vial holders in the desired locations on the vial rack.
20. Adjust the position of each top and bottom vial holder.
a. Rotate the cam up to the unlocked position.
b. Push the holder to the desired location on the pole.
c. Rotate the cam down to the locked position.
Adjusting the vial holders
Cam unlocked
Cam locked
Pole
Top vial holder
Bottom vial holder
