3.2 Power Switch
3.2.1 Location
The instrument's power (On/Off) rocker switch is on the rear of the instrument at the lower right (to the
left of the rubber bumper as you face the instrument rear).
See Figure 3-1 and 3-2 for the power switch location.
3.2.2 Operation
When in the “O” (Off) position, power is removed from the instrument. When in the “|” (On) position,
power is applied to the instrument. Power must be turned On for the incubation and testing modules to
work. For normal operation, the power should remain on at all times (except during maintenance
procedures).

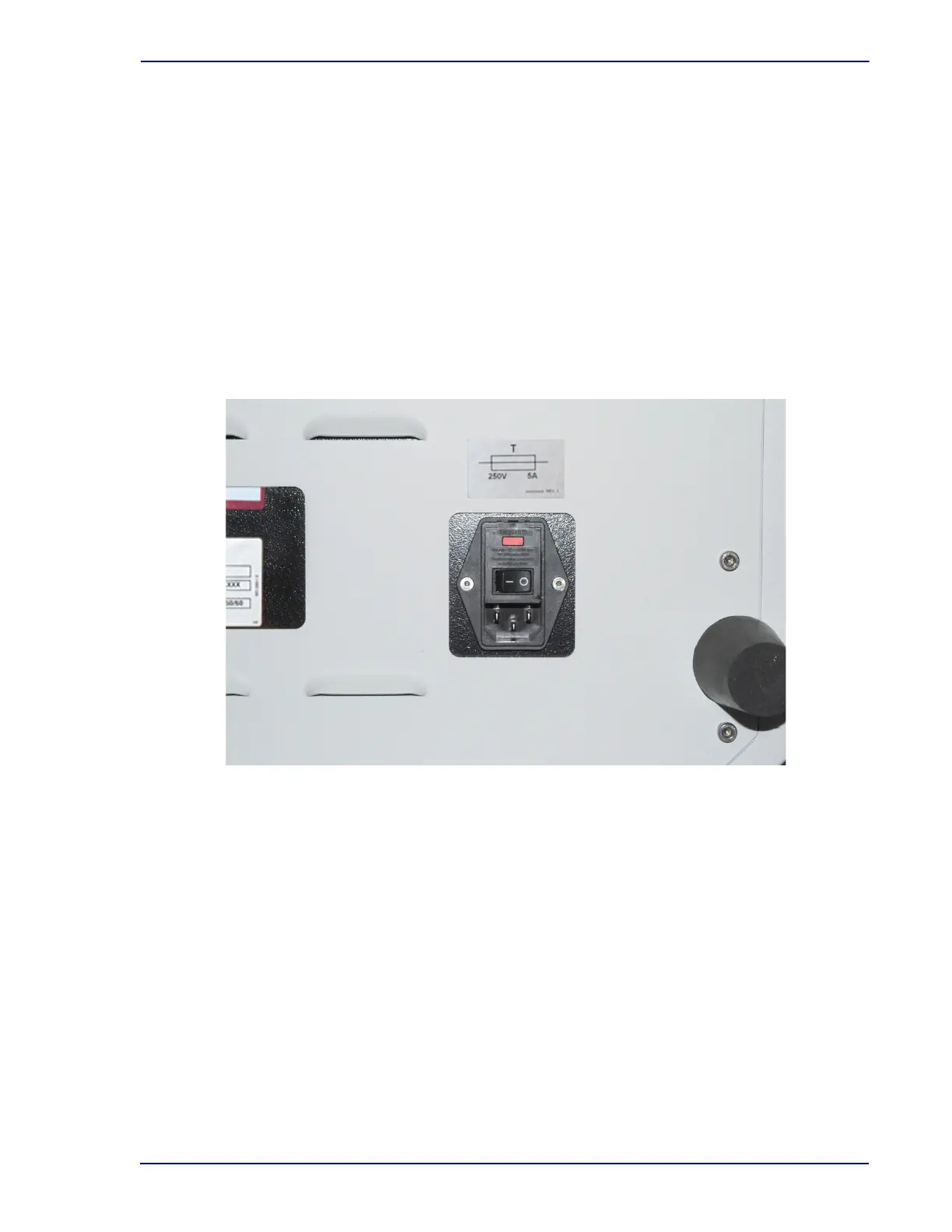

Figure 3-2 – Instrument Power Switch
3.3 System Indicators
3.3.1 Location
The system indicators are located on the front of the instrument, in an arc above the door handle. An
array of LED lamps projects onto the door and is easily visible from across a room.
See Figure 3-1 for system indicator locations.
Power Switch
